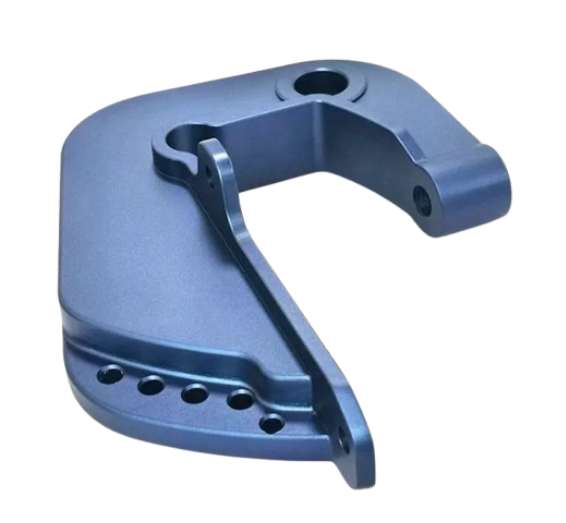

Aluminum CNC Prototype Parts for Mechanical Equipment

Low-Volume CNC Machined Aluminum Components with Custom Color Anodizing

Precision Prototype Manufacturing for Mechanical Equipment Applications

YS Precision manufactured a series of custom aluminum CNC prototype parts for a customer in the Americas developing mechanical equipment.

The project involved producing 40 precision aluminum components for functional testing and equipment validation.

The parts required accurate machining, smooth surface finishing, and consistent appearance across all units. After CNC machining, the components received custom color anodizing to improve surface durability and achieve the required product appearance.

This project demonstrates YS Precision's ability to support customers from prototype development to low-volume manufacturing with reliable quality and flexible production capabilities.

Project Overview

Project Challenge

Producing Functional Prototypes with Production-Level Quality

Although this project was a prototype order, the customer required parts that could be directly used for equipment testing and evaluation.

The main requirements included:

• Accurate mounting dimensions
• Reliable mechanical performance
• Consistent appearance
• Smooth surface finish
• Stable quality across 40 units

Unlike one-piece prototypes, low-volume prototype production requires better process control because every part must maintain the same quality standard.

CNC Machining Process

Aluminum CNC Machining

The components were manufactured from aluminum alloy due to its excellent balance of:

• Lightweight performance
• Machinability
• Strength
• Corrosion resistance
• Surface finishing capability

The CNC machining process included:

• Material preparation
• CNC rough machining
• Precision milling
• Hole machining
• Edge finishing
• Surface preparation

Special attention was given to maintaining:

• Dimensional consistency
• Clean edges
• Smooth transitions
• Proper assembly features

Engineering Considerations

Before production, our engineering team reviewed the design to ensure manufacturability.

The analysis included:

Machining Accessibility

We evaluated tool access and machining directions to achieve stable production.

Structural Features

The part included:

• Curved external surfaces
• Thin-wall areas
• Multiple mounting holes
• Precision connection points

The machining strategy was optimized to reduce deformation and maintain dimensional stability.

Custom Color Anodizing Surface Treatment

After CNC machining, the parts received a custom color anodizing finish.

Anodizing provides:

Improved Surface Protection

• Better corrosion resistance
• Increased surface hardness
• Improved wear resistance

Enhanced Appearance

The color anodizing created:

• Uniform surface color
• Professional product appearance
• Consistent finish across all 40 parts

For mechanical equipment components, anodizing provides both functional protection and visual quality.

Quality Control for Low-Volume Production

For prototype and small batch projects, consistency is critical.

YS Precision performs:

Incoming Material Inspection

• Aluminum material verification
• Surface condition inspection

In-Process Inspection

• Critical dimension monitoring
• Machining quality checks
• Process adjustment when needed

Final Inspection

Before shipment:

• Dimensional inspection
• Appearance inspection
• Anodizing quality verification
• Packaging protection

Each component was carefully inspected before being exported to the customer.

Project Result

The 40 aluminum CNC prototype parts were successfully manufactured and delivered to the customer in the Americas.

The customer received:

✓ Precision CNC machined mechanical components
✓ Consistent quality across all units
✓ Custom color anodized surface finish
✓ Parts ready for equipment testing and validation

This project demonstrated YS Precision's capability in producing high-quality aluminum prototype parts and low-volume mechanical components for global customers.

From Prototype to Long-Term Manufacturing Partner

Many customers begin cooperation with prototype projects before moving into larger production programs.

At YS Precision, we support customers through:

• Prototype machining
• Design verification
• Engineering optimization
• Low-volume production
• Repeat manufacturing

By providing stable quality and responsive communication, we help customers confidently move from initial prototypes to future production.

Why Choose YS Precision for Aluminum CNC Prototype Machining?

✓ Custom aluminum CNC machining
✓ Prototype and low-volume production
✓ Mechanical equipment components
✓ Color anodizing and surface finishing
✓ Engineering support before production
✓ Global export experience

Whether you need a single prototype or hundreds of precision components, YS Precision provides reliable manufacturing solutions for product development and industrial applications.
