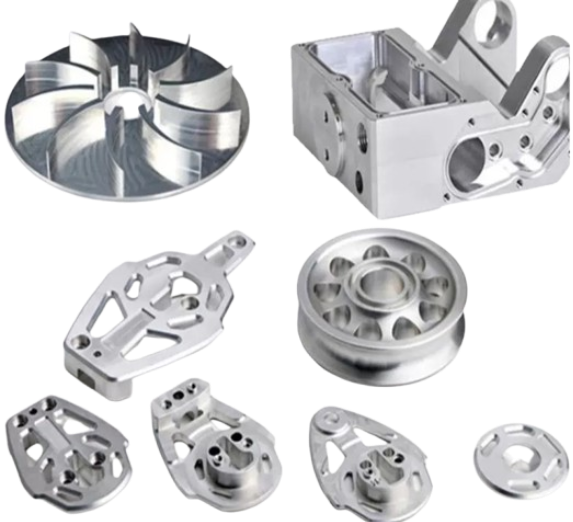

Multi-Axis CNC Machined Aluminum 7075 Prototype Parts for European Engineering Projects

Precision CNC Prototype Machining with 3-Axis, 4-Axis, and 5-Axis Manufacturing Solutions

Project Overview

YS Precision manufactured a series of custom aluminum 7075 CNC prototype parts for a European customer developing advanced mechanical equipment.
The project included multiple types of precision mechanical components with different structures, machining requirements, and tolerance specifications.
Instead of using a single machining method for all parts, our engineering team evaluated each component individually and selected the most suitable manufacturing process, including:

• 3-axis CNC machining
• 4-axis CNC machining
• 5-axis CNC machining

This approach helped achieve the required accuracy while maintaining machining efficiency and cost control.


Project Information

Manufacturing Challenge

Different Parts Required Different CNC Machining Strategies

The prototype project contained various mechanical components with different geometries.
Some parts featured:

• Complex curved surfaces
• Multi-angle machining features
• Deep pockets
• Thin walls
• Precision holes
• Multiple reference surfaces

Using the same machining method for every component would not be the most efficient solution.
Our engineers analyzed each part based on:

• Part geometry
• Tool accessibility
• Required tolerance
• Surface requirements
• Machining complexity

Then we developed optimized machining strategies for each component.


Selecting the Right CNC Process for Each Component

3-Axis CNC Machining

For components with accessible features and standard machining directions, 3-axis CNC machining provided an efficient and economical solution.
Suitable for:

• Flat surfaces
• Pocket machining
• Drilling
• Standard mechanical features

4-Axis CNC Machining

For parts requiring additional rotational positioning, 4-axis machining helped reduce manual repositioning and improved consistency.
Advantages:

• Better feature alignment
• Reduced setup time
• Improved machining efficiency

5-Axis CNC Machining

For highly complex components with multiple angled surfaces and curved geometries, 5-axis CNC machining was selected.
Benefits included:

• Machining multiple surfaces in fewer setups
• Better accuracy between different features
• Improved surface finish on complex areas
• Reduced positioning errors

For this project, 5-axis machining was especially valuable for parts with complex 3D geometry and difficult tool access.


Why Aluminum 7075 Was Selected

The customer selected Aluminum 7075 because of its excellent mechanical properties.
Compared with common aluminum alloys, 7075 provides:

• Higher strength
• Excellent strength-to-weight ratio
• Good fatigue resistance
• Suitable performance for demanding mechanical applications

However, Aluminum 7075 also requires careful machining control because:

• Cutting forces are higher
• Tool wear can increase
• Thin-wall structures require optimized machining parameters

Our engineers adjusted machining strategies to maintain dimensional stability and surface quality.


Precision Machining Process

Engineering Review

Before production, our engineering team reviewed:

• 3D models
• Technical drawings
• Tolerance requirements
• Machining feasibility
• Surface finishing requirements

Potential manufacturing risks were identified before machining to reduce unnecessary trial-and-error.


CNC Machining

The manufacturing process included:

• Material preparation
• CNC rough machining
• Semi-finishing
• Precision finishing
• Hole machining
• Edge finishing

For critical dimensions, additional inspection was performed during machining to ensure stability.
Some key dimensions achieved:
Tolerance: ±0.01 mm


Surface Treatment

After CNC machining, the prototype parts received:

Sand Blasting

Sand blasting provided:

• Uniform matte appearance
• Removal of machining marks
• Improved surface texture

Anodizing

Anodizing improved:

• Corrosion resistance
• Surface durability
• Appearance consistency

The combination of sand blasting and anodizing provided both functional protection and a professional industrial appearance.


Quality Control for Prototype Parts

Prototype parts are often used to evaluate future production designs, so accuracy and appearance are critical.
YS Precision performed:

Dimensional Inspection

• Critical dimension measurement
• Hole position verification
• Feature alignment inspection

Surface Inspection

• Sand blasting consistency
• Anodizing appearance
• Scratch prevention

Final Quality Check

Before shipment:

• Assembly verification
• Appearance inspection
• Protective packaging

Project Result

The complete set of aluminum 7075 prototype components was successfully manufactured and delivered to the European customer.
The customer received:
✓ High-strength aluminum prototype parts
✓ Multiple machining solutions based on part requirements
✓ Precision features up to ±0.01 mm
✓ Professional sand blasted anodized finish
✓ Parts ready for functional evaluation
This project demonstrated YS Precision's ability to manage complex multi-part CNC prototype projects requiring different machining technologies and engineering solutions.
