Swiss CNC Turning Services for Precision Electronic Components

High-Precision Small Diameter Parts Manufactured for Reliable Volume Production

Custom Swiss-Type Turning Solutions from Customer Drawings to Production Delivery

Project Background

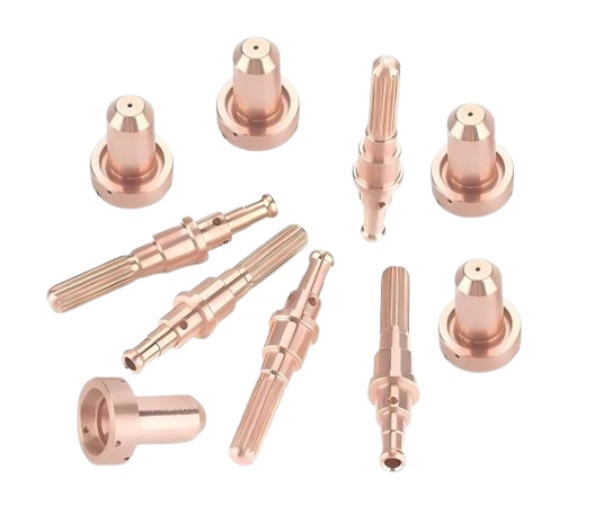

A North American electronics manufacturer required a reliable manufacturing partner to produce precision copper components for electronic equipment.

The project included multiple small turned components, including:

• Precision shafts
• Contact pins
• Connector components
• Custom cylindrical parts

The parts were developed according to the customer's:

• 2D engineering drawings
• 3D CAD models

Because these components were integrated into electronic assemblies, the customer required:

• Stable dimensional accuracy
• Excellent repeatability
• Consistent surface quality
• Reliable production capability

The project quantity reached approximately 20,000 sets, requiring a manufacturing process capable of maintaining consistent quality throughout production.

YS Precision selected Swiss CNC turning technology as the primary machining solution to achieve the required precision and production stability.

Project Overview

Engineering Challenge

Producing Consistent Precision Components in Large Quantities

For electronic equipment applications, small metal components often play critical roles in:

• Mechanical positioning
• Electrical contact
• Component connection
• Assembly reliability

Although these parts are small, manufacturing requirements can be challenging.

Precision Copper Machining

Red copper provides excellent:

• Electrical conductivity
• Thermal conductivity
• Corrosion resistance

However, copper machining requires careful process control because the material characteristics can lead to:

• Burr formation
• Surface quality issues
• Dimensional variation

Maintaining Accuracy During Volume Production

The customer required approximately 20,000 sets.

The challenge was not only producing accurate components, but maintaining consistent quality throughout the entire production batch.

Critical dimensions included features controlled within:

• General tolerance: ±0.01mm
• Critical functional dimensions: ±0.005mm

These requirements demanded stable machining conditions and strict quality management.

YS Precision Manufacturing Solution

Swiss CNC Turning for Precision Production

After reviewing the customer's drawings and 3D models, YS Precision determined that Swiss-type CNC turning was the ideal manufacturing method.

Swiss CNC turning provides advantages for precision electronic components:

Excellent Machining Stability

With guide bushing support close to the cutting area, Swiss machines reduce:

• Material vibration
• Part deflection
• Dimensional fluctuation

This makes them highly suitable for small diameter precision components.

High Repeatability for Large Volume Orders

Swiss CNC turning is designed for:

• Continuous production
• Stable quality
• Repeatable dimensions

This makes it suitable for customers requiring thousands of identical precision parts.

Efficient Multi-Feature Machining

Swiss CNC machines can integrate:

• Turning
• Grooving
• Drilling
• Threading
• Milling

Reducing secondary operations and improving consistency.

Manufacturing Process

1. Engineering Drawing Review

The customer provided:

• 2D drawings
• 3D models

Our engineering team reviewed:

• Critical dimensions
• Machining feasibility
• Material characteristics
• Production process requirements

2. Swiss-Type CNC Turning

The red copper components were manufactured using precision Swiss CNC turning machines.

The process focused on:

• Tool life management
• Stable cutting parameters
• Consistent machining performance

3. Quality Control During Production

To ensure production consistency, YS Precision implemented:

First Article Inspection

Confirming initial production quality.

In-Process Inspection

Monitoring critical dimensions during machining.

Final Inspection

Verifying finished components before shipment.

Inspection included:

• Diameter measurement
• Length verification
• Critical feature inspection
• Surface quality checking

Project Result

YS Precision successfully completed the production of 20,000 sets of precision copper electronic components using Swiss CNC turning.

The customer received:

✓ Stable production quality
✓ Consistent dimensional accuracy
✓ Reliable copper machining performance
✓ Production-ready components

The project demonstrated YS Precision's capability in manufacturing precision turned parts for demanding electronic applications.

Why Choose YS Precision for Swiss CNC Turning?

YS Precision provides professional Swiss CNC turning services for customers requiring:

Precision Small Diameter Components

Including:

• Shafts
• Pins
• Bushings
• Connectors
• Custom turned parts

Tight Tolerance Manufacturing

Our machining capability supports:

• Standard precision requirements
• Critical feature control
• High repeatability production

Material Expertise

Including:

• Copper
• Brass
• Stainless Steel
• Aluminum
• Engineering plastics

From Prototype to Production

Supporting:

• Engineering samples
• Low-volume production
• Volume manufacturing

Applications

Electronics

• Precision contacts
• Connector components
• Internal mechanisms

Robotics

• Precision shafts
• Motion components

Medical Equipment

• Small precision components

Aerospace

• High-performance turned parts
