CNC Prototype Machining Case Study

High-Precision Aluminum 6061 CNC Prototype Parts Manufactured for Product Validation

Project Overview

Developing a new electronic product requires accurate and functional prototypes that closely represent the final production design.
A U.S.-based customer approached YS Precision for CNC prototype machining services to manufacture precision aluminum prototype housings for electronic equipment testing and engineering validation.
The project required 10 prototype parts manufactured from 6061 aluminum, with complex multi-sided features and several critical dimensions requiring tolerances up to ±0.01 mm.
To achieve the required accuracy and consistency, YS Precision utilized advanced 5-axis CNC machining technology to manufacture these functional CNC prototypes with fewer setups, improved dimensional control, and excellent repeatability.


Project Highlights

Customer Requirements

The customer was not looking for simple appearance models. These prototypes needed to function as real engineering parts for product testing and design verification.
The main requirements included:

• High-precision CNC prototype parts
• Small batch production of 10 units
• Production-like aluminum material
• Complex multi-sided machining
• Tight dimensional tolerances
• Consistent quality between prototype parts
• Fast turnaround for product development

Because these prototypes would be assembled into electronic equipment, dimensional accuracy and repeatability were critical.


CNC Prototype Machining Challenges

Complex Multi-Sided Geometry

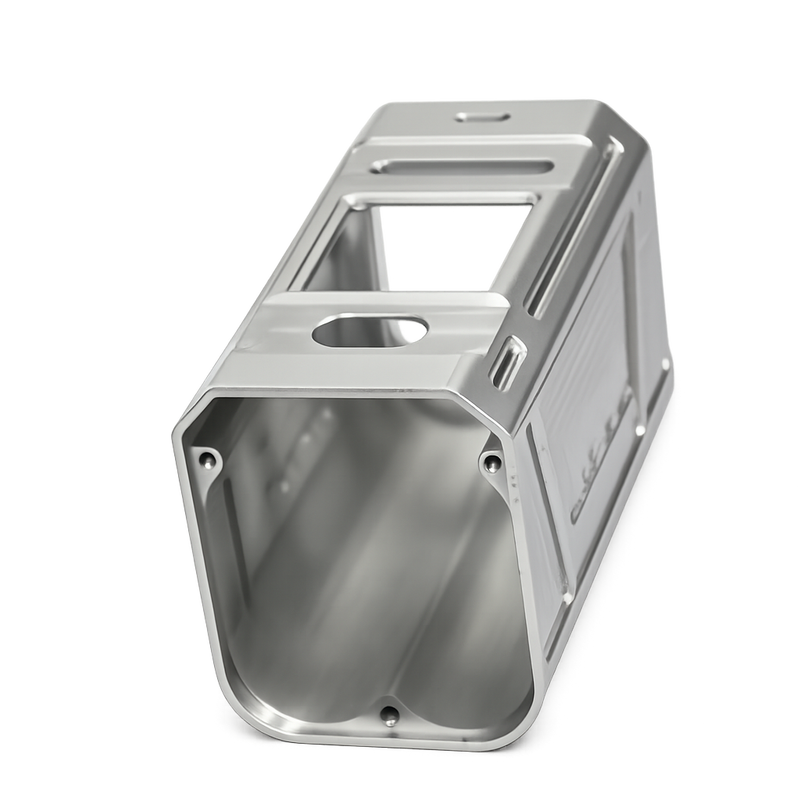

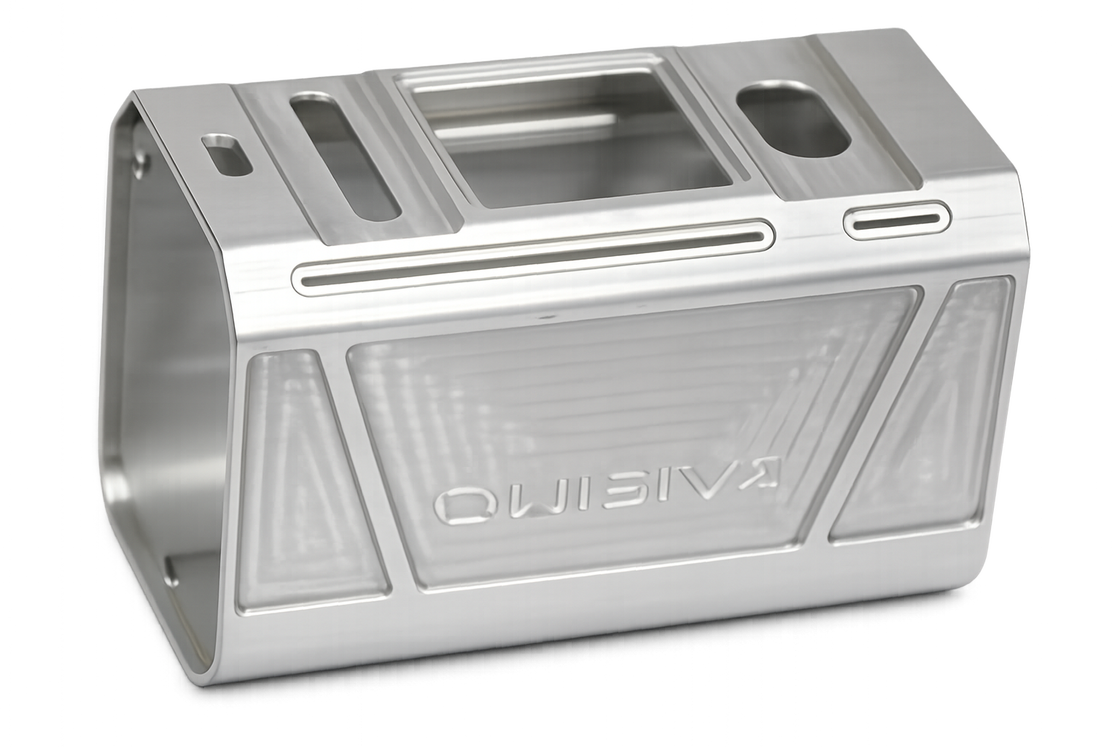

The aluminum housing contained multiple machining features, including precision pockets, slots, mounting holes, and locating surfaces.
Maintaining the accurate relationship between different surfaces was essential to ensure proper assembly and functionality.
Traditional machining methods would require multiple setups, increasing machining time and the possibility of accumulated positioning errors.


Tight Tolerance Requirements

Several critical dimensions required tolerances of ±0.01 mm.
Achieving this level of precision during prototype manufacturing required:

• Optimized machining strategies
• Stable workholding solutions
• Proper tool selection
• Process monitoring
• Dimensional inspection

At YS Precision, we treat CNC prototypes with the same attention to detail required for production components.


Prototype Consistency

Although the quantity was only 10 pieces, every prototype needed to maintain the same quality and dimensional accuracy.
Consistent prototype manufacturing allows customers to perform reliable testing and make confident engineering decisions before production.


Our CNC Prototype Machining Solution

After reviewing the customer's CAD files and manufacturing requirements, our engineering team selected 5-axis CNC prototype machining as the optimal solution.
By machining multiple surfaces in fewer setups, 5-axis machining helped:

• Improve positional accuracy
• Reduce setup errors
• Maintain feature alignment
• Increase machining efficiency
• Achieve consistent prototype quality

Before production, our engineers reviewed:

• Machining sequence
• Tool path strategy
• Fixture design
• Cutting parameters
• Inspection requirements

This engineering-driven approach helped ensure the final CNC prototype parts met the customer's expectations.


Why 5-Axis CNC Machining for Prototypes?

For complex prototype parts, 5-axis CNC machining provides significant advantages compared with conventional machining methods.

Higher Accuracy

Fewer setups reduce accumulated positioning errors and improve dimensional consistency.

Complex Geometry Capability

Multiple surfaces, angled features, and difficult-to-reach areas can be machined efficiently.

Better Surface Quality

Continuous tool movement helps achieve smoother and more consistent machining results.

Faster Prototype Development

Reduced setup requirements help shorten CNC prototype manufacturing lead times.
For this electronic equipment housing, 5-axis machining provided the ideal combination of precision, efficiency, and flexibility.


Aluminum 6061 CNC Prototype Machining

Aluminum 6061 is one of the most commonly used materials for precision CNC prototypes because it provides an excellent balance of strength, weight, machinability, and cost.
Advantages include:

• Excellent CNC machining performance
• Lightweight structure
• Good mechanical strength
• Corrosion resistance
• Stable dimensional performance
• Excellent surface finishing capability

For electronic equipment prototypes, Aluminum 6061 provides a realistic production-like material for functional testing and product validation.


Quality Control for CNC Prototype Parts

At YS Precision, quality control is integrated throughout the entire CNC prototype machining process.
Our inspection process includes:

• Raw material verification
• In-process dimensional inspection
• Critical feature measurement
• Surface quality inspection
• Final inspection before shipment

Critical dimensions were controlled within ±0.01 mm according to customer drawings.
Each prototype part was carefully inspected before delivery to ensure reliable performance during testing.


Project Results

The 10 aluminum CNC prototype parts were successfully manufactured and delivered to the customer in the United States.
The completed prototypes achieved:

• Required dimensional accuracy
• Consistent quality across all parts
• Reliable assembly performance
• Production-like functional validation

Through precision CNC prototype machining, engineering support, and strict quality control, YS Precision helped the customer move forward confidently with product development.
