Sheet Metal Prototyping Service for Complex Metal Components

Functional Sheet Metal Prototypes for Automotive, Electronics, Medical and Industrial Applications

From Engineering Drawings to Low-Volume Production Parts

YS Precision provides professional sheet metal prototyping services for companies developing new products and requiring functional metal components before mass production.
We support engineering teams with:

• Design review
• Manufacturing feasibility analysis
• Laser cutting
• Forming and bending
• Prototype tooling
• Welding
• Surface finishing

From early prototypes to pilot production runs, our sheet metal prototyping service helps customers validate designs, reduce development risks, and accelerate product launch.


Why Choose Sheet Metal Prototyping Service?

Validate Complex Sheet Metal Designs Before Mass Production

During product development, engineers often face challenges such as:

• Low initial quantities
• Complex formed structures
• Need for functional testing
• Frequent design updates
• Uncertainty before production release

Traditional manufacturing methods may require expensive tooling before the design is fully validated.
A flexible sheet metal prototyping service allows engineering teams to produce functional metal parts first, test performance, and optimize designs before moving into full production.

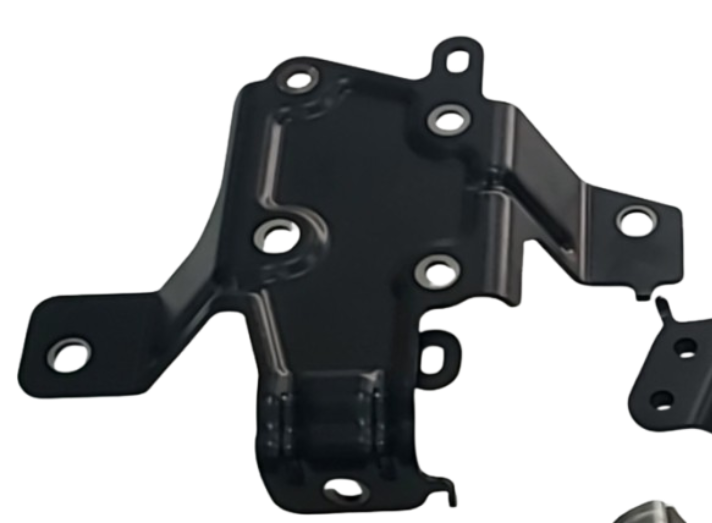

Automotive Sheet Metal Prototype Case Study

Low Volume Automotive Bracket Manufactured for Engineering Validation

Complex 3D Formed Sheet Metal Component with Prototype Tooling

A North American automotive customer required a small batch of structural brackets for vehicle development and engineering validation.
The part was designed as a functional automotive mounting bracket and required complex sheet metal forming features, including:

• Multi-direction bending
• Reinforcement ribs
• Embossed strengthening areas
• Multiple mounting points

These features were required to improve:

• Structural rigidity
• Load-bearing capability
• Assembly accuracy
• Long-term durability

Project Requirements

Engineering Challenge

Producing Production-Like Automotive Parts in Prototype Quantities

The customer needed only 35 units for prototype testing.
However, the bracket required complex formed features normally produced through automotive stamping processes.
The challenge was to achieve:

Complex Three-Dimensional Geometry

The bracket required multiple bending directions while maintaining:

• Accurate shape
• Consistent dimensions
• Proper assembly fit

Structural Reinforcement Features

The ribs and embossed areas were designed to:

• Increase stiffness
• Reduce deformation
• Improve durability

Fast Prototype Delivery

The customer needed functional parts quickly to support vehicle development timing.


YS Precision Sheet Metal Prototyping Solution

Flexible Prototype Tooling for Automotive Development Parts

After reviewing the customer's drawings, YS Precision analyzed the manufacturing requirements.
Our engineering team evaluated:

• Sheet metal structure
• Forming sequence
• Material behavior
• Tooling requirements
• Surface treatment requirements

Instead of moving directly into full production tooling, we developed a flexible prototype forming solution suitable for low-volume automotive validation.
This approach enabled:
✓ Functional prototype parts
✓ Production-like forming features
✓ Reduced development investment
✓ Faster validation cycle


Sheet Metal Prototype Manufacturing Process

1. Engineering Review

Before production, our engineers reviewed the customer's design to confirm:

• Manufacturing feasibility
• Forming approach
• Assembly requirements

2. Laser Cutting

SPCC cold rolled steel was precision laser cut according to the customer's drawings.
Advantages:

• Accurate profiles
• Flexible low-volume production
• Fast preparation

3. Prototype Forming

Custom prototype tooling was used to create:

Reinforcement Ribs

Improving:

• Structural strength
• Resistance to deformation

Embossed Features

Providing:

• Additional support
• Better positioning
• Improved mechanical performance

4. Multi-direction Bending

The parts were formed into the final 3D bracket geometry.
Process control focused on:

• Bend accuracy
• Dimensional consistency
• Assembly compatibility

5. Black Powder Coating

The finished automotive brackets received black powder coating.
The coating provided:

• Corrosion resistance
• Durable surface protection
• Consistent appearance

Prototype Validation Result

YS Precision completed the 35 automotive sheet metal prototype brackets within approximately 15 days.
The customer received:

• Functional prototype components
• Production-intent geometry
• Durable black powder-coated surfaces
• Assembly-ready parts

The parts were ready for engineering evaluation and vehicle development testing.


Our Sheet Metal Prototyping Capabilities

YS Precision provides complete sheet metal prototyping services, including:

Laser Cutting

For rapid prototype production.

CNC Bending

For accurate forming.

Embossing & Rib Forming

For reinforced sheet metal structures.

Prototype Tooling

For complex features during early product development.

Welding & Assembly

For structural sheet metal components.

Surface Finishing

Including:

• Black powder coating
• Zinc plating
• Painting
• Other custom finishes

Applications of Our Sheet Metal Prototyping Service

Automotive

• Structural brackets
• Vehicle prototype parts
• Mounting components

Electronics

• Internal support plates
• Metal frames

Medical Equipment

• Device brackets
• Structural components

Home Appliances

• Internal mounting parts
• Pilot production components

Industrial Equipment

• Chassis
• Enclosures
• Support structures

From Prototype to Low-Volume Production

YS Precision supports customers through different product development stages:
Design Review → Sheet Metal Prototype → Engineering Validation → Pilot Production → Low Volume Manufacturing
Our goal is to provide engineering teams with reliable sheet metal prototypes that reduce development risk and accelerate product launch.
