Low Volume Sheet Metal Brackets For Home Appliance Pilot Production

Low Volume Sheet Metal Brackets For Home Appliance Pilot Production

Low Volume sheet metal brackets

White Zinc Plating sheet metal brackets

Cold Rolled Steel custom sheet metal brackets

Place of Origin:

China

Brand Name:

YS Precision

Certification:

ISO9001

Model Number:

Sheet Metal Prototyping Services

CONTACT US
Request A Quote
Product Details
Application:
Internal Sheet Metal Brackets For Home Appliances
Customer Market:
North America
Production Quantity:
Approx. 100 Pcs
Material:
SPCC Cold Rolled Steel
Manufacturing Process:
Laser Cutting, Rib Forming, CNC Bending, Leveling
Tooling Method:
Custom Aluminum Forming Tool
Surface Treatment:
White Zinc Plating
Production Stage:
Pilot Production / Engineering Validation
Highlight:

Low Volume sheet metal brackets

,

White Zinc Plating sheet metal brackets

,

Cold Rolled Steel custom sheet metal brackets

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
EPE Foam Inside And Carton Outside Or EPE Foam Inside And Wooden Outside
Delivery Time
3-7 Days For Sample Order, 10-15 Days For Bulk Order After, Depend On The Part Structure And Size
Payment Terms
T/T
Supply Ability
5000 Piece/Month
Product Description

Low Volume Sheet Metal Brackets for Home Appliance Pilot Production

Production-Ready Sheet Metal Components with Flexible Tooling for Product Validation

Supporting Appliance Manufacturers from Prototype Development to Pilot Production






Project Background

A North American home appliance manufacturer was preparing a new product for pilot production and required a batch of customized sheet metal brackets for assembly validation.

These brackets were designed as internal structural components to support functional modules inside the appliance.

Although the parts were relatively small, they required consistent forming quality and reliable mechanical performance, including:

  • Precision bending features
  • Reinforcement ribs
  • Mounting holes
  • Repeatable geometry across multiple units

For this development stage, the customer required approximately 100 pieces for pilot assembly and engineering evaluation.

A traditional high-volume stamping approach was not suitable at this stage because:

  • The production volume was not finalized
  • Design changes were still possible
  • Dedicated tooling investment would increase project risk

YS Precision provided a flexible low-volume sheet metal manufacturing solution, combining prototype tooling, precision forming, and surface finishing to support the customer's pilot production requirements.






Project Overview

Requirement Manufacturing Solution
Application Internal Sheet Metal Brackets for Home Appliances
Customer Market North America
Production Quantity Approx. 100 pcs
Material SPCC Cold Rolled Steel
Manufacturing Process Laser Cutting, Rib Forming, CNC Bending, Leveling
Tooling Method Custom Aluminum Forming Tool
Surface Treatment White Zinc Plating
Lead Time Around 15 Days
Production Stage Pilot Production / Engineering Validation






Manufacturing Challenge

Producing Consistent Formed Brackets Before Mass Production

During appliance product development, engineers often need a limited quantity of production-like components before finalizing mass production tooling.

The challenge was producing brackets that could meet production expectations while maintaining development flexibility.

Key requirements included:

Structural Reinforcement

The brackets required formed ribs to improve:

  • Mechanical strength
  • Resistance to deformation
  • Long-term stability during product operation

Repeatable Forming Accuracy

For assembly validation, every bracket needed consistent:

  • Bend angles
  • Rib dimensions
  • Mounting locations

Short Development Timeline

The customer required approximately 100 pieces within a short schedule to support their pilot build.






YS Precision Manufacturing Solution

Flexible Tooling for Low-Volume Production

After reviewing the customer's drawings, YS Precision evaluated the most suitable manufacturing approach.

Instead of moving directly into expensive production tooling, we developed a custom aluminum forming tool for the rib features.

This provided an ideal solution for the pilot production stage:

Lower Initial Investment

The customer avoided unnecessary tooling costs before production volume was confirmed.

Faster Manufacturing Preparation

Prototype tooling allowed quick transition from design to production.

Production-Like Components

The finished brackets provided the consistency required for assembly and testing.






Manufacturing Process

1. Engineering Review and Process Planning

The customer supplied the product drawings.

Before manufacturing, our engineering team reviewed:

  • Sheet metal structure
  • Rib forming requirements
  • Bending sequence
  • Surface treatment requirements

Manufacturing risks were identified and optimized before production.






2. Laser Cutting

SPCC cold rolled steel sheets were laser cut according to the customer design.

Benefits:

  • Accurate geometry
  • Clean edges
  • Flexible production for low-volume orders






3. Rib Forming with Aluminum Tooling

The reinforcement ribs were created using a custom aluminum forming tool.

The ribs provided:

  • Increased stiffness
  • Better structural performance
  • Reduced deformation during assembly

This flexible forming approach was suitable for pilot production quantities.






4. Precision Bending and Adjustment

The components were formed into the final bracket geometry.

Process control focused on:

  • Bend accuracy
  • Dimensional consistency
  • Assembly compatibility

After forming, parts were checked and adjusted to maintain consistency.






5. White Zinc Plating

The completed brackets received white zinc plating.

The surface treatment provided:

  • Corrosion protection
  • Improved appearance
  • Durable surface performance






Quality Control

Before shipment, each batch was inspected.

Inspection included:

✓ Dimensional verification
✓ Rib forming consistency
✓ Bending accuracy
✓ Hole position inspection
✓ Zinc plating appearance

The finished components were packaged and shipped to the customer's facility in North America for pilot assembly.






Project Result

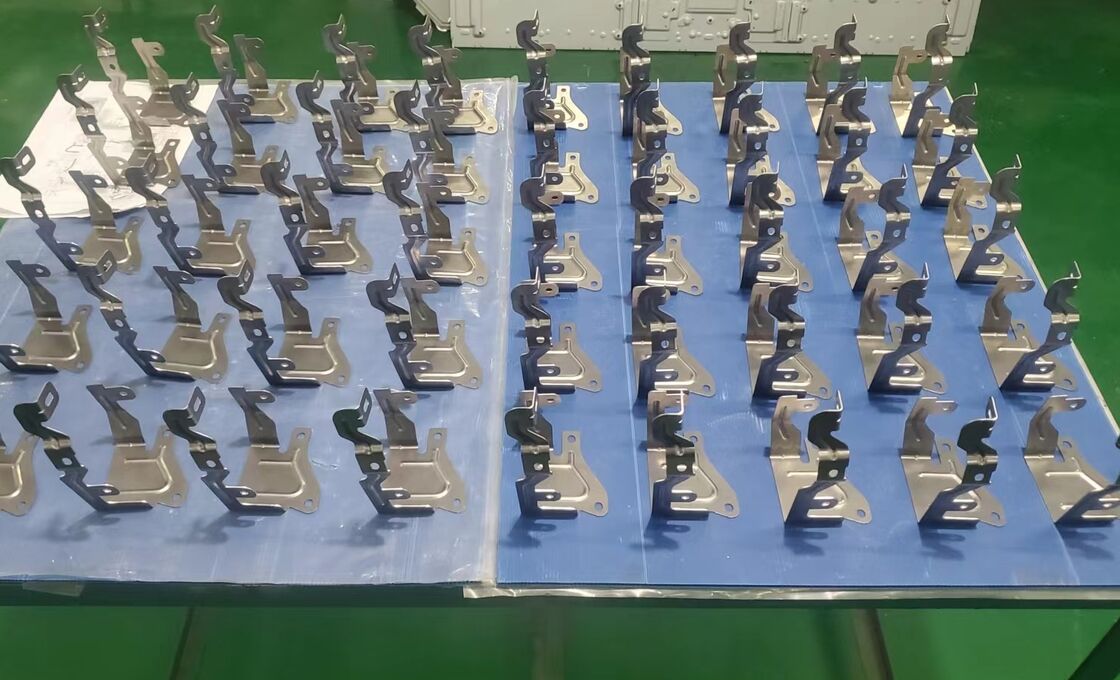

YS Precision successfully delivered approximately 100 sheet metal brackets within a 15-day lead time.

The customer received:

  • Production-intent components
  • Consistent formed structures
  • Finished zinc-plated surfaces
  • Assembly-ready parts

The successful pilot production allowed the customer to continue product validation before committing to full-scale manufacturing.






Why Appliance Engineers Choose YS Precision

Moving from prototype to production requires more than manufacturing capability.

Engineering teams need suppliers who understand:

  • Product development timelines
  • Low-volume production requirements
  • Manufacturing feasibility
  • Process optimization

YS Precision provides:

Low Volume Sheet Metal Manufacturing

For pilot builds and engineering validation.

Flexible Tooling Solutions

For formed features before mass production tooling.

Complete Sheet Metal Processing

Including:

  • Laser cutting
  • Forming
  • Bending
  • Hardware installation
  • Surface finishing

Engineering Support

From drawing review to finished parts.
