Custom CNC Turning for 303 Stainless Steel Aquaculture Equipment Parts

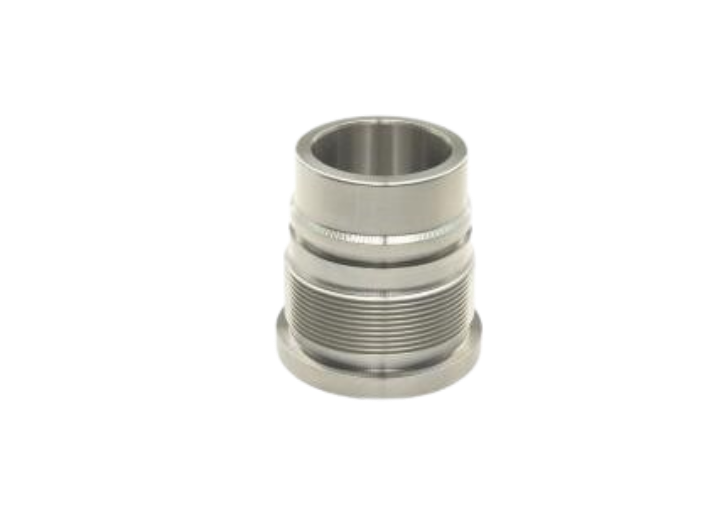

This 303 stainless steel threaded bushing was produced as part of our custom CNC turning services for an aquaculture equipment customer in the United States.

The component is approximately 65 × 25 mm, with a machined internal bore, stepped outside diameters and a substantial external threaded section. The customer supplied both 2D and 3D files, with a critical +0.02 mm tolerance specified on the internal bore.

Approximately 1,000 pieces were manufactured to the customer's material, geometry and tolerance requirements.

The part itself is not unusually complex. What matters is keeping the bore, thread and turned diameters consistent from the first approved pieces through the production batch.

Project Details

The Drawing Changes What We Pay Attention To

Looking at the finished part, the external thread is naturally the first feature that stands out.

The engineering drawing tells a slightly different story.

The internal bore carries a +0.02 mm tolerance, so this dimension needs closer control during machining. For a bushing or sleeve, the bore can directly influence how the component locates around a shaft or other mating hardware.

That is why our custom CNC turning work starts with the complete drawing rather than simply looking at the visible geometry.

The 3D model tells us what the part looks like. The 2D drawing tells us which dimensions cannot move very far.

Keeping the Part on the CNC Lathe

Most of the geometry shares a common centerline, making this a natural CNC lathe part.

The stepped outside diameters and shoulders are turned to profile, the internal bore is machined to its specified size, and the external thread is produced according to the drawing.

A typical route is straightforward:

Bar Stock → CNC Turning → Internal Boring → External Threading → Deburring → Inspection → Packing

There is no advantage in adding secondary milling when the required geometry can be produced efficiently through turning.

For a batch of approximately 1,000 pieces, a short and stable machining route also helps keep production predictable.

The Bore Is the Dimension We Keep Watching

Producing one bore to size is one thing. Keeping it there through a production batch is another.

Internal machining takes place in a confined cutting area. Tool condition, chip evacuation and cutting conditions can gradually influence the finished diameter as production continues.

The critical bore is therefore measured at appropriate intervals during the run rather than being left entirely to final inspection.

If a dimensional trend begins to appear, it can be addressed while parts are still being machined.

For precision CNC turned bushings and sleeves, this kind of in-process control is often more useful than adding inspection only after production is finished.

The Thread Is Part of the Same Machining Story

The external thread occupies a substantial section of the component.

Its diameter, pitch, length and transition into the adjacent shoulder are machined according to the customer drawing. The finished thread and nearby edges also need to remain free from burrs or damage that could cause problems during assembly.

Threading itself is a routine CNC turning operation.

The production requirement is to keep that routine operation consistent across approximately 1,000 pieces while the bore and other turned dimensions remain within their own specifications.

Why 303 Stainless Steel Works Well Here

The customer specified 303 stainless steel, which is well suited to a part involving external turning, internal boring and threading.

Its machinability makes it practical for repeat CNC lathe work, particularly when material needs to be removed from both the inside and outside of the component.

We manufacture to the material grade stated on the engineering drawing unless an alternative has been reviewed and approved.

For custom stainless steel CNC turning, the material is considered together with the geometry, tolerance requirements and order quantity when planning the machining process.

2D and 3D Files Do Different Jobs

For this project, the customer supplied both.

The 3D model helps us understand the complete part geometry and review how the features relate to each other. The 2D drawing carries the manufacturing information that should not be assumed from the CAD model alone.

That includes the +0.02 mm bore tolerance, thread specification and other critical dimensional requirements.

This distinction matters when quoting made-to-drawing components. Two bushings can look almost identical in a rendering while requiring very different machining and inspection once their tolerances are compared.

Custom CNC Turning Services for Drawing-Based Parts

YS Precision provides custom CNC turning services for components manufactured from customer 2D drawings and 3D models.

Typical work includes bushings, sleeves, shafts, pins, spacers, collars and threaded components. Depending on the drawing, machining can include CNC turning, precision boring, grooving, drilling, internal or external threading, and turn-mill machining when additional off-axis features are required.

We machine 303 and 304 stainless steel, aluminum, brass and other specified metals for aquaculture equipment, automation, medical equipment, electronics and other industrial applications.

Some parts are prototypes. Others move into repeat or batch production after the design has been confirmed. In either case, the machining plan is built around the drawing rather than a standard catalogue specification.

A Custom Turned Part Is More Than Its Outside Shape

This 303 stainless steel component is a relatively straightforward lathe part. The external thread is obvious, the stepped body is easy to see, and most of the geometry follows one turning axis.

The detail that changes the job is inside: a +0.02 mm bore requirement that needs to remain controlled throughout the approximately 1,000-piece batch.

That is the kind of information we look for when reviewing a custom CNC turning project. Material, thread specification, internal dimensions and tolerances all influence how the part should be machined and checked.

If you are sourcing made-to-drawing bushings, sleeves or other custom CNC turned parts, send us the engineering drawing and 3D model. We can review the actual specifications before quoting rather than estimating the job from overall dimensions alone.
