Large-Diameter CNC Turning for a Semiconductor Equipment Component

This large-diameter CNC turned component was produced for semiconductor equipment and shipped to a customer in Israel.

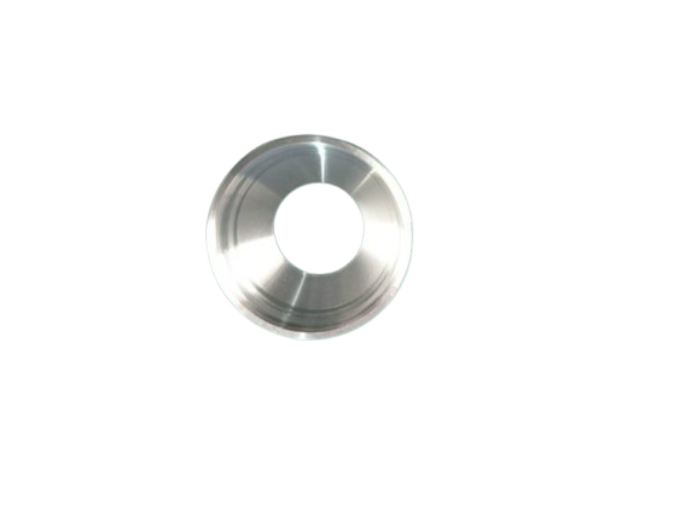

The finished part is approximately Ø180 × 40 mm, with a large center opening, broad annular faces and several stepped circular features. The geometry is mostly rotational, so CNC turning is the natural choice for the main machining work.

The customer supplied both 2D drawings and a 3D model. Depending on the feature, dimensional tolerances are specified at ±0.05 mm or ±0.1 mm. The drawing also calls for good concentricity between the circular features and an approximately Ra 0.8 surface finish on the relevant machined surfaces.

The order was around 200 pieces.

Nothing about the shape calls for an unnecessarily complicated process. The real work is in establishing the right turning reference, keeping the circular geometry aligned and maintaining the required finish through the batch.

Project Specifications

The Shape Is Simple. The Centerline Still Matters.

Most of the geometry is circular: the center opening, outside diameter, recessed areas and stepped surfaces all follow the same basic axis.

That makes CNC turning an obvious machining choice, but it also means that checking each diameter individually does not tell the whole story.

The center bore, OD and surrounding circular features need to remain properly related to one another. A diameter may be within its size tolerance while its position relative to another circular feature is not quite where the drawing intended.

Before machining, we therefore look at which features should share a turning reference and which can be completed without moving the part unnecessarily.

Where related diameters can remain in the same setup, we prefer to keep them there.

Ø180 mm Makes the Finish Easier to See

At approximately 180 mm in diameter, this part feels quite different on the lathe from a small shaft, pin or bushing.

The broad annular faces require considerably more tool travel during facing, and the cutting pattern is easier to see across such a large surface.

That matters because the drawing specifies an approximately Ra 0.8 surface finish.

Tool condition, feed and the final cutting parameters all leave their signature on the finished face. A slight change that might be difficult to notice on a narrow diameter can become much more visible across a broad circular surface.

For this reason, the final turning passes need to be planned for both dimensional control and surface condition.

Concentricity Deserves More Attention Than the ±0.05 mm

Some dimensions on the drawing are controlled to ±0.05 mm, while others are ±0.1 mm.

These tolerances are well within normal CNC machining capability, so there is no reason to present them as unusually difficult.

The more interesting requirement is concentricity.

With several circular features sharing the same basic centerline, the question during machining is not only:

Is this diameter correct?

It is also:

Is it still running where it should relative to the other diameters?

That distinction influences how we think about workholding, machining references and unnecessary re-clamping.

For this particular part, those relationships tell us more about the job than the tolerance number alone.

Ra 0.8 Is Not Just a Smooth-Looking Surface

A freshly turned metal surface can look bright and clean in a photograph. That does not tell us whether it meets Ra 0.8.

Surface roughness comes from the machining process.

Insert condition, feed rate, cutting speed and the finishing pass all influence the tool pattern left on the surface. A cutting edge may still hold a diameter while the quality of the surface it produces has already started to change.

That becomes relevant over a batch of approximately 200 pieces.

Rather than relying on appearance alone, the surface requirement needs to remain part of the machining and inspection process as production continues.

The 3D Model Shows the Shape; the 2D Drawing Defines the Job

Having both customer files is useful for a component like this.

The 3D model quickly shows us the overall geometry: the large opening, stepped circular profile and relationships between the different surfaces.

The 2D drawing tells us where the manufacturing attention belongs.

That is where we find the ±0.05 mm and ±0.1 mm dimensions, concentricity requirements, surface roughness callouts and other engineering notes.

For custom CNC turning from customer drawings, we use the two files together rather than treating the 3D model as a replacement for the manufacturing drawing.

The model shows the shape. The drawing defines the job.

Two Hundred Pieces Changes the Way We Approach the Setup

Two hundred pieces is still a relatively flexible CNC machining quantity, but it is enough that the setup needs to work as a repeatable production process.

Once the initial components are confirmed, we want the same machining references, tooling strategy and finishing conditions to carry through the rest of the order.

This is also where tool condition starts to matter differently from prototype work.

A cutting edge that is acceptable for roughing may no longer be the right choice for a Ra 0.8 finishing pass. Monitoring the process during production helps prevent a gradual change from becoming a batch-wide problem.

A good setup should make the later parts less eventful than the first ones.

For a 200-piece turning order, that is exactly what we want.

Where This Part Fits in Our CNC Turning Work

Our custom CNC turning services cover more than small shafts and pins.

We also machine large-diameter rings, flanges, sleeves, bushings and other rotational components from customer 2D drawings and 3D models.

Depending on the geometry, a project may involve OD and ID turning, facing, boring, grooving, drilling or threading. Secondary milling is added when the drawing contains holes, flats, slots or other features that cannot be completed around the turning axis.

For semiconductor equipment and other industrial applications, we support prototype quantities as well as low-volume and repeat batch production.

We prefer to start with the drawing rather than a predetermined list of machining operations. Once we understand the geometry, tolerances and surface requirements, the appropriate process is usually much clearer.

A Turning Job Defined by Relationships, Not Complexity

We chose to show this component because it represents a type of custom CNC turning work that is easy to underestimate from a photograph.

There are no intricate pockets or dramatic multi-axis features. What matters is quieter than that: several circular surfaces need to stay related to the same centerline, a broad machined face carries an approximately Ra 0.8 requirement, and the process has to remain sensible across 200 pieces.

That is enough to shape the entire turning plan.

For a new large-diameter part, the useful conversation usually begins with the drawing: Which surfaces share a reference? Which dimensions actually drive the assembly? Where does surface finish matter?

Once those questions are clear, deciding how to machine the part becomes much more straightforward.
