SLA 3D Printing for Multi-Part Product Prototype Validation

A prototype project becomes more complicated when the customer needs an entire set of parts rather than one standalone component.

For this U.S. project, we produced approximately five complete prototype sets using SLA 3D printing. The parts were required for the customer's initial product validation, before the design moved toward a more finalized manufacturing stage.

The build included large enclosure sections, textured ring-shaped parts, brackets, handles, frames and a number of smaller components. Because these parts belong to the same product, the customer's real concern was not simply whether each CAD file could be printed. They needed physical components that could be handled, compared and assembled together.

That is where SLA rapid prototyping was particularly useful.

Project at a Glance

Not One Prototype, but a Complete Group of Parts

The variety of components is one of the most interesting aspects of this project.

Several large shell-like parts have broad surfaces and deep internal areas. The four ring-shaped components have thick walls and a repeated external texture. Other parts are much smaller, with narrow projections, holes, frames and local details.

Putting all of them into the same prototype batch created a different challenge from printing ten identical parts.

Each geometry had to be considered individually.

A large housing may need careful orientation to control broad surfaces. A circular component needs to maintain its overall shape. Thin projections require enough support during the build, while small functional details need to remain intact during support removal and cleaning.

The goal was straightforward: produce a usable set of physical parts from the customer's CAD data so the product could move into its first real-world evaluation.

Why Produce Five Sets at This Stage?

Five sets may sound like a small order, but for early product development it can be exactly the right quantity.

At this point, the customer did not need hundreds of production parts. The design first needed to be checked physically.

With several prototype sets available, the engineering team can work with more than one assembly, compare results and use the parts for different internal evaluations without committing to production tooling.

SLA makes this type of iteration practical because there is no mold to modify if the design changes.

If testing shows that a bracket needs to move, a housing needs more clearance or an interface does not align as expected, the CAD files can be revised before the next prototype build.

This is one of the reasons we often use SLA 3D printing for early-stage product development: it keeps the design flexible while engineers are still learning from the physical product.

The Assembly Tells You More Than an Individual Part

A component can look correct by itself and still create problems when everything comes together.

Two parts may interfere. A gap may be larger than expected. A handle may not have enough clearance. A mounting feature may technically be in the correct CAD position but prove inconvenient during actual assembly.

Producing the prototype as a set gives the customer a chance to find these issues early.

The SLA parts can be used to review:

• fit between neighboring components;
• overall assembly dimensions and proportions;
• mounting and locating positions;
• clearances around moving or connecting parts;
• accessibility during assembly;
• housing alignment and gaps;
• external shape and appearance;
• design changes required for the next iteration.

For an R&D team, these findings are often more important than simply confirming that a part matches its nominal CAD dimensions.

One Build, Very Different Geometries

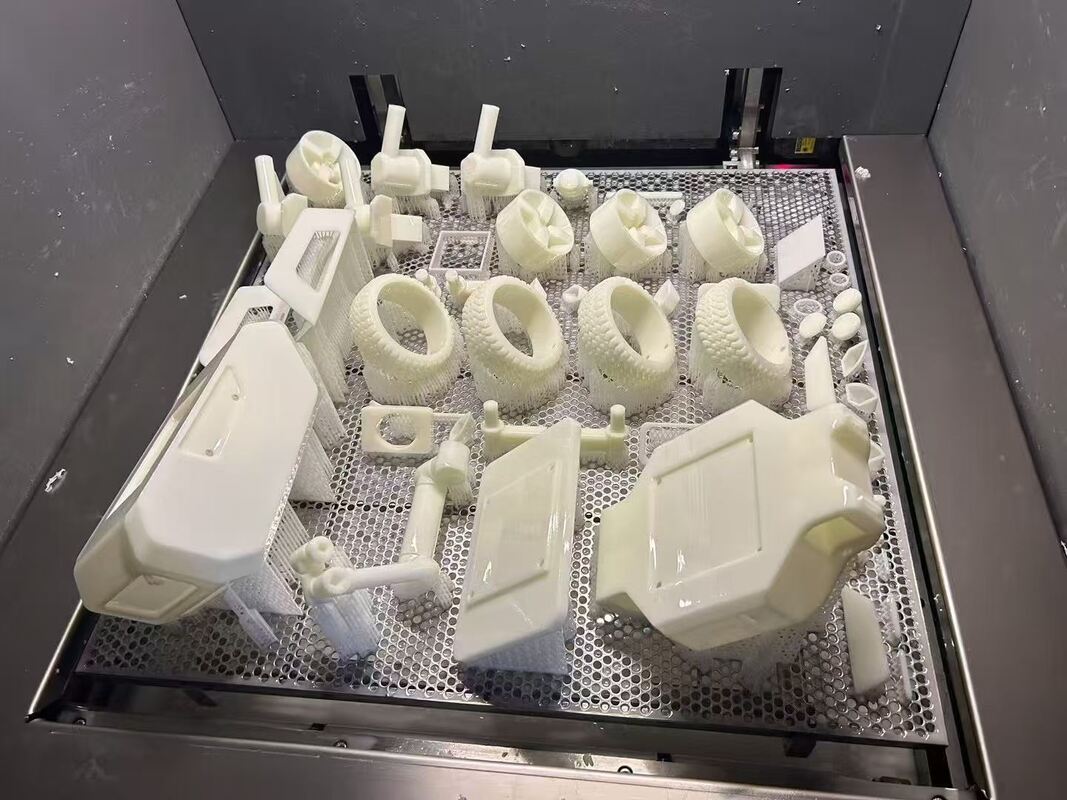

The photograph also shows why custom SLA prototype manufacturing requires more than placing files on a build platform and pressing start.

These components do not all behave the same way during printing.

Large, relatively flat surfaces can be more sensitive to orientation. Deep enclosure geometries may require substantial support structures. Small stems and projecting features need protection, while the textured ring-shaped components have their own surface and support considerations.

Before production, we therefore look at the geometry of each part and decide how it should be positioned and supported.

Typical considerations include wall thickness, long projections, enclosed or recessed areas, broad surfaces, circular features, support contact locations and surfaces that will later interact with another component.

This becomes particularly important with a multi-part prototype. One damaged bracket or distorted connecting feature can prevent an otherwise good set of components from being assembled.

From Customer CAD Files to Five Prototype Sets

For this project, production started with the customer's 3D CAD data.

Rather than treating the files as unrelated printing jobs, we reviewed them as components belonging to one development project. Parts were prepared for SLA production according to their individual structures, followed by printing, support removal, cleaning and inspection.

The workflow was kept practical:

CAD File Review → Part Orientation → Support Preparation → SLA Printing → Support Removal & Cleaning → Inspection → Part Sorting → Packing

Part sorting is a small detail, but it matters when a shipment contains many different components.

For a customer receiving several complete sets overseas, being able to identify the parts and organize them for assembly is much more useful than receiving a box of mixed prototypes.

SLA Is a Step in Development, Not Necessarily the Final Process

The manufacturing method used for a prototype does not have to be the process used for production.

For this project, SLA was chosen because the immediate requirement was initial validation of approximately five sets. At that stage, speed, design flexibility and the ability to produce many different geometries were more important than optimizing a process for thousands of identical parts.

After the prototypes are assembled and evaluated, the next manufacturing route can be selected according to the final design, material requirements and expected quantity.

Some projects remain with 3D printing for further iterations. Others move to CNC machining, vacuum casting, prototype injection molding or production tooling.

Making that decision after physical validation can reduce the risk of carrying an avoidable design problem into the next stage.

SLA 3D Printing Service for Early Product Development

For engineering teams, the value of a prototype is not that it makes a CAD model tangible. Its value is in what the team learns once the parts are in hand.

This U.S. project required approximately five sets containing components of very different sizes and structures. SLA 3D printing gave the customer a practical way to obtain the complete group of parts for initial fit, assembly and design evaluation before moving further into production.

YS Precision supports custom SLA 3D printing, rapid prototyping and low-volume prototype manufacturing for industrial and product development projects.

If your prototype consists of an entire assembly rather than a single component, send us the 3D CAD files, quantity and testing requirements. We can review the parts together and determine a practical way to manufacture the first prototype batch.
