Automotive Prototype Manufacturing with Nylon 3D Printing

Automotive development often reaches a point where CAD analysis is no longer enough. The geometry may look correct on screen, but engineers still need a physical part to check how it occupies space, lines up with surrounding components and behaves during an actual trial assembly.

For this U.S. automotive project, the customer needed five sets of prototype parts for an initial design check. The components were manufactured in black nylon using 3D printing, allowing the team to evaluate the current design before committing to tooling or a higher-volume manufacturing process.

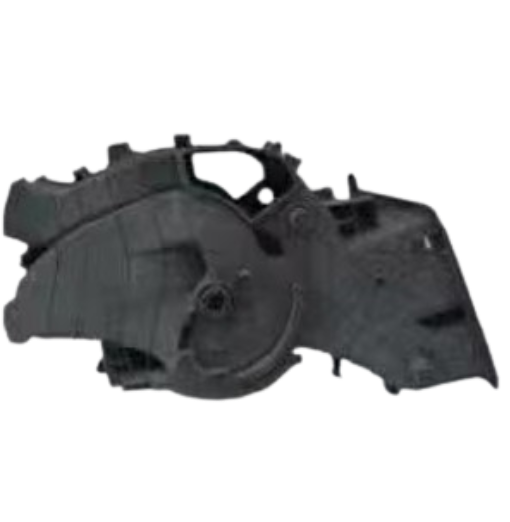

The part itself is a good candidate for this approach. Its irregular body combines curved sections, a large circular feature, openings, ribs, mounting points and several local projections within one integrated structure.

Project Details

Built Around the Assembly, Not Around Simple Geometry

One of the first things noticeable about this component is that very little of it follows a simple geometric form.

The outer profile changes continuously. There are broad curved areas alongside narrow extensions, recessed regions, raised mounting structures and a prominent circular section. Different areas also sit at noticeably different heights.

This kind of shape is common in automotive development because the component often has to fit into space already shared by other parts.

As a result, the engineering question is not simply, “Is the overall size correct?”

The customer also needs to know whether mounting points are in the right locations, whether projections interfere with neighboring components, whether openings provide the intended access and whether the complete part fits into the available space.

A physical prototype makes those relationships much easier to evaluate.

Why Make Only Five Sets?

Because this project was still at an early stage, producing more parts would not necessarily have provided more value.

The customer first needed enough samples to carry out physical checks and determine whether the design should remain unchanged.

This is where automotive 3D printing fits naturally into the development cycle.

There is no need to commit to production tooling simply to obtain a few parts. The current CAD geometry can be manufactured as a low-volume prototype batch, evaluated, and revised if necessary.

If a mounting feature needs to move or additional clearance is required, the change can still be made in the digital model before the project progresses.

For this project, five sets were enough to support the next engineering decision without locking the design into a production process too early.

Why Black Nylon?

These parts were intended for physical evaluation rather than being used only as visual display models.

Black nylon is a useful option for many functional prototype applications where parts will be handled, positioned or used during preliminary assembly checks. Compared with more appearance-oriented prototype materials, nylon can provide a practical balance of toughness and low weight for development work.

It also works well with the type of integrated geometry seen here.

Ribs, openings, mounting structures and irregular curved sections can remain part of the same component rather than being separated simply to make prototype manufacturing easier.

The choice of nylon does not mean the final production component must use the same manufacturing process or even the same material. At this stage, the objective was to obtain useful physical parts for evaluation.

The Small Features Can Decide Whether the Part Fits

Large automotive prototype parts naturally draw attention to their overall shape, but many fit problems begin with much smaller features.

This component contains multiple local mounting and locating areas distributed around an irregular body. During a physical trial, these details can be just as important as the main surface.

The five prototype sets allow the engineering team to look at questions such as:

• Do mounting points align with the mating components?
• Is there sufficient clearance around local projections?
• Can the component be installed without unexpected interference?
• Are openings positioned where they need to be?
• Do ribs or raised areas conflict with nearby parts?
• Does the overall shape fit within the intended packaging space?

A CAD model can provide nominal dimensions for all of these features. A physical prototype shows how they work together.

That distinction is especially valuable before design freeze.

Complex Automotive Geometry Without Early Tooling

Producing a part like this through conventional tooling would make little sense if the design is still subject to change.

The geometry also makes it less straightforward than a simple machined prototype. A large amount of irregular material would have to be removed, with tool access and multiple orientations considered for different surfaces.

Nylon 3D printing offers a more direct route for this particular development stage.

The component can be produced from the customer's digital model with its curved surfaces, ribs, openings and local features integrated into the build.

There is still engineering work involved before printing. Broad surfaces, wall sections, thin areas and functional interfaces need to be reviewed according to the selected printing process and intended use.

For us, rapid prototyping is not simply about whether a machine can reproduce a CAD file. The finished part needs to be useful for the engineering question the customer is trying to answer.

What Happens If the First Version Does Not Fit?

That is exactly what an early prototype is there to discover.

If the five sets reveal an interference problem, an incorrect clearance or an inconvenient mounting location, the CAD model can be revised before the next manufacturing step.

A typical development cycle may look like:

3D CAD → Prototype → Fit & Assembly Check → Design Revision → Second Validation or Production Preparation

Not every project requires another prototype iteration. If the first version performs as expected, the customer can move directly toward the next stage.

The important point is that this decision is being made with information from a physical component rather than relying only on the digital design.

From Prototype to the Next Manufacturing Stage

3D printing is one part of automotive prototype manufacturing, not necessarily the final manufacturing solution.

Once the design is confirmed, the appropriate next process depends on the required material, tolerances, surface requirements and expected production quantity.

A project may move toward injection molding or another production process. Other automotive development parts may require CNC machining, sheet metal fabrication, vacuum casting or additional 3D printed iterations.

YS Precision supports this transition by working from customer-supplied 3D CAD files and technical requirements, rather than limiting projects to one prototype process.

For this U.S. project, the immediate requirement was clear: five sets of black nylon automotive parts for initial physical validation. Nylon 3D printing provided a practical way to get the complex geometry into the customer's hands while the design was still flexible.

If you are developing a custom automotive component and need a small batch before tooling, send us your 3D CAD files, quantity, material requirements and intended test purpose. We can review the geometry and recommend a suitable prototype manufacturing route.
