Custom Silicone Rubber Pad for Medical Equipment

Some of the most practical custom components are also the simplest in appearance.

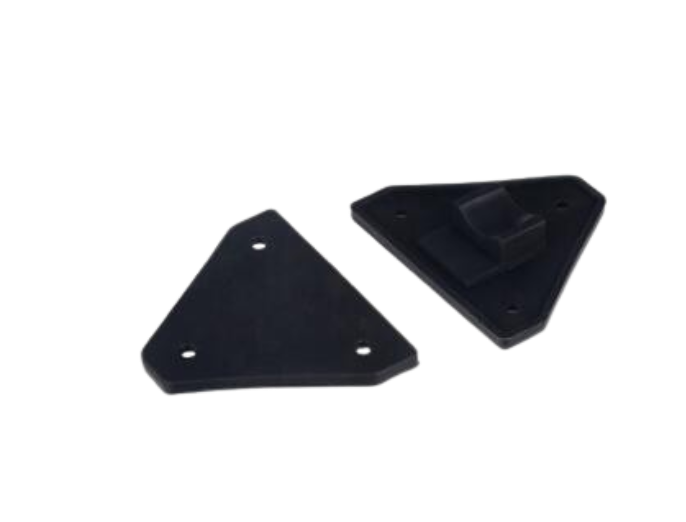

This black silicone rubber pad was developed for a medical equipment application for a customer in Israel. The part has a flat asymmetric profile, three mounting holes and approximately 50 Shore A hardness. Dedicated tooling was developed to manufacture the component according to the customer's product design.

There are no complex ribs, deep cavities or intricate three-dimensional features. What makes this part custom is much more straightforward: its shape, hole pattern and material specification were designed around a particular assembly rather than around a standard rubber pad.

Project Overview

A Custom Profile That Follows the Product

The outline is the first thing that distinguishes this component from a standard silicone pad.

Instead of using a regular circle, square or rectangle, the part has a tapered asymmetric body with rounded transitions. The three mounting holes are also positioned according to the surrounding equipment rather than following a generic pattern.

For medical equipment designers, internal space is often already defined by housings, fasteners and neighboring components. A standard rubber pad may therefore have the right material but the wrong geometry.

Custom silicone rubber molding allows the pad to follow the product design.

The outside profile, hole locations, thickness and material hardness can be specified according to the customer's drawings, without forcing the surrounding assembly to accommodate a standard rubber component.

Three Holes, One Defined Installation Position

The three mounting holes are simple features, but their relationship with the outer profile is important.

Looking at the component as a whole is more useful than considering each hole independently:

Outer Profile → Hole Pattern → Installed Position

If a hole is correctly molded but positioned incorrectly relative to the perimeter, the pad may still be difficult to locate within the equipment.

This is why 2D drawings remain important even for a geometrically simple custom silicone rubber pad. They define the dimensional relationship between the holes and the surrounding contour.

When 3D assembly data or mating components are available, they can provide additional context for understanding how the pad is positioned in the finished product.

For This Part, the Flat Body Is the Main Feature

Many custom molded silicone components are defined by complicated flexible structures. This one is not.

Most of the part is a broad, flat surface.

That changes what deserves attention during manufacturing. Instead of concentrating on undercuts or deep molded features, the relevant characteristics are the overall profile, thickness, hole pattern and condition of the flat body.

Thickness is particularly relevant because it determines how much space the pad occupies within the assembly.

Unwanted distortion can also affect how a broad flexible component sits against neighboring structures.

This is a good example of why a part does not need complicated geometry to justify custom manufacturing. Sometimes the requirement is simply to reproduce a specific flat shape reliably.

50 Shore A Needs to Be Considered with Thickness

The specified silicone hardness for this medical equipment component was approximately 50 Shore A.

Hardness is useful information, but it does not describe the complete behavior of a silicone pad.

Thickness matters too.

A relatively thin pad can flex much more easily than a thicker component molded from exactly the same Shore A material. The overall shape and the way the part is constrained within the assembly can also influence how it behaves.

For this reason, we look at:

Silicone Material + Shore Hardness + Thickness + Part Geometry

as related product requirements.

We do not assume a particular cushioning, compression or other mechanical performance based on the 50 Shore A value alone. Where those characteristics are important, they should be defined according to the customer's application requirements.

From Customer CAD to Production Tooling

This component was manufactured from a customer-specific design, so dedicated production tooling was required.

The process begins with the customer's 2D drawings and 3D CAD data.

For a flat silicone pad like this, the manufacturing review can remain focused on practical questions: whether the outside contour is suitable for molding, which dimensions control the hole pattern, what thickness is required, and which features are important to the final assembly.

Once the geometry and material requirements are confirmed, tooling can be manufactured and initial molded parts produced for verification.

The physical samples allow the customer to check the actual silicone component against the intended equipment before regular production proceeds.

This is especially useful when the pad interacts closely with several mounting points or surrounding parts.

Quality Control Based on How the Pad Is Used

Inspection should follow the design rather than a generic rubber-parts checklist.

For this component, relevant characteristics can include:

• outer contour;
• mounting-hole dimensions and locations;
• molded thickness;
• flatness and visible deformation;
• perimeter and hole-edge condition;
• specified silicone material and Shore hardness.

Because silicone is flexible, measurement also needs to take material deformation into account.

Applying the same measurement approach used for a rigid CNC-machined metal component may not always be appropriate for a soft molded pad.

The objective is to confirm the features that influence installation and keep the production parts consistent with the approved requirements.

Custom Silicone Rubber Pads for Medical Equipment

Medical equipment often contains small flexible components designed specifically around its internal mechanical structure.

These can include silicone rubber pads, cushioning pads, protective pads, flexible interfaces and other custom molded silicone components.

YS Precision manufactures these parts according to customer drawings rather than limiting projects to standard rubber shapes. Silicone material, Shore hardness, color, thickness, profile and mounting features can be specified according to the individual product.

For this project, the distinguishing features were straightforward: a black 50 Shore A silicone pad, an asymmetric flat profile and three mounting holes, manufactured with dedicated tooling for a medical equipment application in Israel.

If you are sourcing custom silicone rubber pads or molded silicone components for medical equipment, send us your 2D/3D files, material and hardness requirements, and relevant assembly information. We can review the part requirements before tooling and production.
