6061 5 Axis CNC Machining Parts For Precision Robotic Arm Components

6061 5 Axis CNC Machining Parts For Precision Robotic Arm Components

6061 5 Axis CNC Machining Parts

Precision 5 Axis CNC Machining Parts

Precision 5 axis manufacturing

Place of Origin:

China

Brand Name:

YS Precision

Certification:

ISO9001

Model Number:

5 Axis CNC Machining

CONTACT US
Request A Quote
Product Details
Application:
Robotic Arm Components
Material:
Aluminum 6061
Manufacturing Process:
5 Axis CNC Machining
Quantity:
Nearly 100 Prototype Parts
Production Type:
Prototype & Low-Volume Manufacturing
Export Market:
North America
Highlight:

6061 5 Axis CNC Machining Parts

,

Precision 5 Axis CNC Machining Parts

,

Precision 5 axis manufacturing

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
EPE Foam Inside And Carton Outside Or EPE Foam Inside And Wooden Outside
Delivery Time
3-7 Days For Sample Order, 10-15 Days For Bulk Order After, Depend On The Part Structure And Size
Payment Terms
T/T
Supply Ability
5000 Piece/Month
Product Description

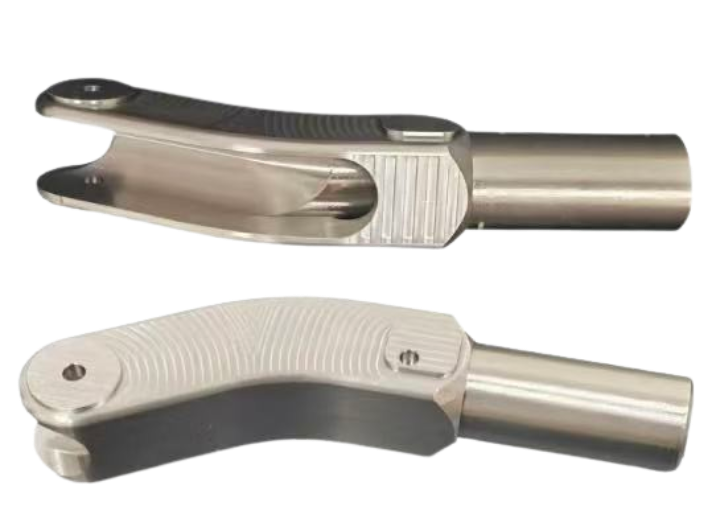

5 Axis CNC Machining for Precision Robotic Arm Components

High-Precision Aluminum 6061 Components for Industrial Robotic Arms

Industrial robotic arms rely on lightweight, high-strength, and highly accurate mechanical components to achieve smooth motion and reliable positioning. Many of these structural parts feature complex geometries, curved surfaces, and precision interfaces that require advanced 5-axis CNC machining.

This case study showcases a project in which YS Precision manufactured nearly 100 Aluminum 6061 precision components for an industrial robotic arm. The project required high machining accuracy, excellent consistency, and reliable fit between several mating components. The finished parts were exported to the overseas customer for prototype validation and assembly.






Project Overview

Item Details
Industry Industrial Robotics
Application Robotic Arm Components
Material Aluminum 6061
Manufacturing Process 5 Axis CNC Machining
Quantity Nearly 100 Prototype Parts
Production Type Prototype & Low-Volume Manufacturing
Export Market North America






Customer Requirements

The customer was developing a new robotic arm system and required precision-machined aluminum components with demanding quality standards.

Key requirements included:

  • Complex freeform machining
  • High dimensional accuracy
  • Excellent surface finish
  • Stable consistency across nearly 100 parts
  • Accurate fit with several mating components
  • Reliable quality for export projects

Because these parts form part of a robotic arm assembly, maintaining consistent machining quality was essential for smooth installation and product performance.






Why 5 Axis CNC Machining?

The component features multiple curved surfaces, deep cavities, angled faces, and complex profiles that cannot be machined efficiently using conventional methods.

By utilizing advanced 5-axis CNC machining, we were able to:

  • Machine multiple surfaces in a single setup
  • Reduce repositioning errors
  • Improve dimensional consistency
  • Produce smooth freeform surfaces
  • Increase machining efficiency for complex aluminum components






Engineering Support Throughout the Project

Before production, our engineering team carefully reviewed the customer's drawings and evaluated the machining strategy.

Special attention was given to:

  • Critical assembly features
  • Tool accessibility
  • Surface transitions
  • Machining sequence
  • Manufacturing feasibility

Early engineering planning helped optimize production and reduce potential machining risks.






Precision Fit Between Mating Components

This project involved more than manufacturing a single CNC part.

YS Precision also produced several related aluminum components that needed to fit together with this robotic arm part.

Throughout production, our machining team paid close attention to the critical interfaces between these components. By controlling key dimensions and machining consistency, we helped ensure smooth fitting during the customer's assembly process.

For robotic arm applications, reliable part-to-part consistency is just as important as the accuracy of each individual component.






Aluminum 6061 – A Trusted Material for Robotic Arms

Aluminum 6061 is widely used in robotic arm systems because it offers an excellent combination of strength, weight reduction, and machinability.

Its benefits include:

  • Lightweight construction
  • High structural strength
  • Good corrosion resistance
  • Excellent dimensional stability
  • Outstanding machining performance
  • Suitable for various surface finishing processes

These advantages make it an ideal material for robotic arm brackets, joints, structural supports, and precision mechanical components.






Manufacturing Process

The production workflow included:

  • Engineering drawing review
  • CNC programming and machining strategy
  • Aluminum 6061 preparation
  • 5-axis CNC rough and finish machining
  • Deburring and surface finishing
  • Trial fitting with related components
  • Protective export packaging

Every step was carefully managed to deliver consistent quality across the complete production batch.






Project Results

YS Precision successfully completed nearly 100 precision Aluminum 6061 components for the customer's robotic arm development project.

The components achieved the required machining quality and fit accurately with the related mating parts manufactured by YS Precision, helping support the customer's prototype assembly and product validation.

The finished parts were delivered on schedule and exported to North America.






Why Choose YS Precision?

From complex prototypes to low-volume production, YS Precision provides reliable CNC machining solutions for robotics, automation, medical devices, aerospace, and industrial equipment.

Our capabilities include:

  • Nearly 40 advanced 5-axis CNC machining centers
  • Typical tolerances of ±0.01 mm, with critical features down to ±0.005 mm
  • Precision machining for complex aluminum components
  • Prototype, low-volume, and production manufacturing
  • Engineering review and DFM support
  • Manufacturing of related mating components
  • Surface finishing and one-stop manufacturing services
  • Global export experience
