5-Axis CNC Machining for Precision Robotic Aluminum Components

Engineering Complex Multi-Sided Parts with Superior Accuracy

As robotic systems continue to evolve, component complexity is increasing rapidly. Lightweight structures, compact assemblies, and tighter tolerance requirements demand manufacturing processes capable of producing highly accurate parts with exceptional consistency.

For components requiring machining on multiple faces, maintaining positional accuracy between critical features becomes essential. Even small deviations can accumulate during assembly, affecting alignment, motion accuracy, and overall system performance.

At YS Precision, we provide 5-axis CNC machining services for complex aluminum components, helping customers manufacture precision parts for robotics, automation, medical devices, aerospace, and advanced industrial equipment.

Project Snapshot

Customer Challenge

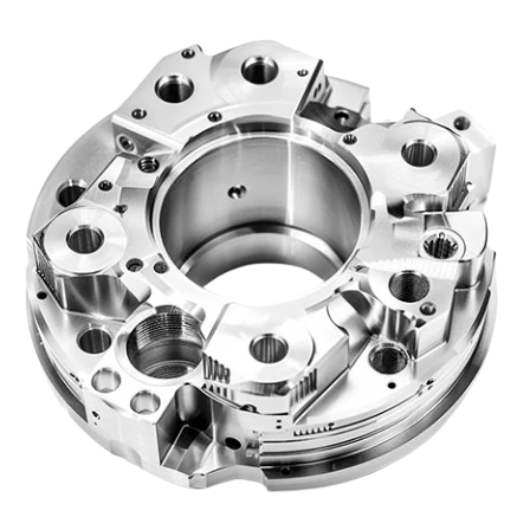

This project involved manufacturing 50 aluminum robotic components for an overseas customer developing precision automation equipment.

The component incorporated multiple machined surfaces, precision holes, mounting interfaces, and reference features located on different planes.

While the dimensional tolerances of individual features were demanding, the greater challenge lay in maintaining the positional relationship between every machined surface throughout the manufacturing process.

For robotic assemblies, dimensional consistency is more than a quality requirement—it directly influences assembly efficiency, repeatability, and long-term operational stability.

Why 5-Axis Machining Was the Best Solution

Many complex parts can technically be produced using conventional 3-axis machining.

However, every additional setup introduces the possibility of slight positioning errors. While these deviations may appear insignificant individually, they can accumulate across multiple machining operations and ultimately affect the final assembly.

For this project, our engineering team selected 5-axis CNC machining to minimize cumulative positioning errors and improve overall manufacturing consistency.

The optimized machining strategy allowed multiple faces of the component to be completed in significantly fewer setups, ensuring accurate relationships between critical features while reducing production risk.

Engineering Approach

Every successful machining project begins with process planning rather than machine operation.

Before production, our engineers carefully reviewed the customer's drawings, analyzed datum structures, and developed a machining sequence designed to maximize dimensional stability.

The manufacturing workflow included:

• Engineering review and manufacturability analysis
• Machining strategy optimization
• Fixture planning for stable positioning
• Multi-sided machining using 5-axis technology
• Continuous in-process dimensional verification
• Final inspection of dimensions, appearance, and surface quality

Rather than focusing solely on machining efficiency, our objective was to create a stable, repeatable manufacturing process capable of producing consistent results across the entire batch.

Precision Where It Matters

For robotic applications, machining accuracy extends beyond individual dimensions.

Critical factors include:

• Positional accuracy between machined features
• Flatness and perpendicularity of mounting surfaces
• Hole location consistency
• Repeatability across production batches
• Reliable component interchangeability

These characteristics ensure that parts fit together correctly during assembly and continue to perform reliably in service.

Manufacturing Results

The project was completed successfully, with all 50 aluminum components delivered to the customer on schedule.

The finished parts achieved:

• Excellent multi-sided machining accuracy
• Stable control of cumulative tolerances
• Smooth machined surfaces
• Consistent dimensional repeatability
• Reliable assembly performance
• Uniform quality throughout the production batch

The customer successfully integrated the components into their robotic system and proceeded with subsequent product validation.

Applications

Our 5-axis machining solutions are widely used for precision components in:

• Robotics & Automation
• Medical Equipment
• Aerospace Systems
• Semiconductor Equipment
• Consumer Electronics
• Energy Equipment
• Industrial Automation

Why Manufacturers Choose YS Precision

At YS Precision, machining is only one part of the manufacturing process.

Our value comes from understanding how parts function within the final product and developing machining strategies that improve manufacturability, dimensional consistency, and production reliability.

Whether producing a single prototype or a low-volume production run, we combine engineering expertise with precision machining to deliver components ready for assembly.

Our capabilities include:

• 5-Axis CNC Machining
• CNC Milling & Turning
• Aluminum & Stainless Steel Machining
• Engineering Plastics
• Prototype Manufacturing
• Sample Orders
• Low-Volume Production
• Surface Finishing
• Assembly Support
• Comprehensive Quality Inspection
• Worldwide Shipping

Ready to Manufacture Your Next Precision Component?

Whether your project requires complex multi-sided machining, tight positional tolerances, or low-volume production, our engineering team is ready to help.

Upload your CAD files today and receive a professional engineering review with manufacturing recommendations tailored to your project.
