Complex PMMA CNC Machining for High-Transparency Parts

High-transparency PMMA parts become especially challenging when a relatively compact component contains radial ribs, slender columns, narrow channels, recessed pockets, holes, and closely spaced internal features that must be machined from multiple directions.

For this project, YS Precision manufactured approximately 220 custom PMMA parts for a customer in the United States.

Each component measures approximately 250 × 250 × 40 mm and features a dense internal structure rather than a simple transparent cover or panel. Multiple ribs extend toward the central area, while vertical features, pockets, holes, slots, and recessed surfaces are distributed throughout the part.

Because access to these features is limited from a single machining direction, 5-axis CNC machining was selected to provide more suitable tool orientations for the complex internal geometry.

High transparency was another key requirement. The manufacturing process therefore needed to consider machining quality, slender feature stability, polishing accessibility, cosmetic consistency, and surface protection throughout the 220-piece production batch.

Custom PMMA CNC Machining Project

Dense Internal Geometry with Radial Features

The defining characteristic of this component is the amount of mechanical detail concentrated within a relatively limited space.

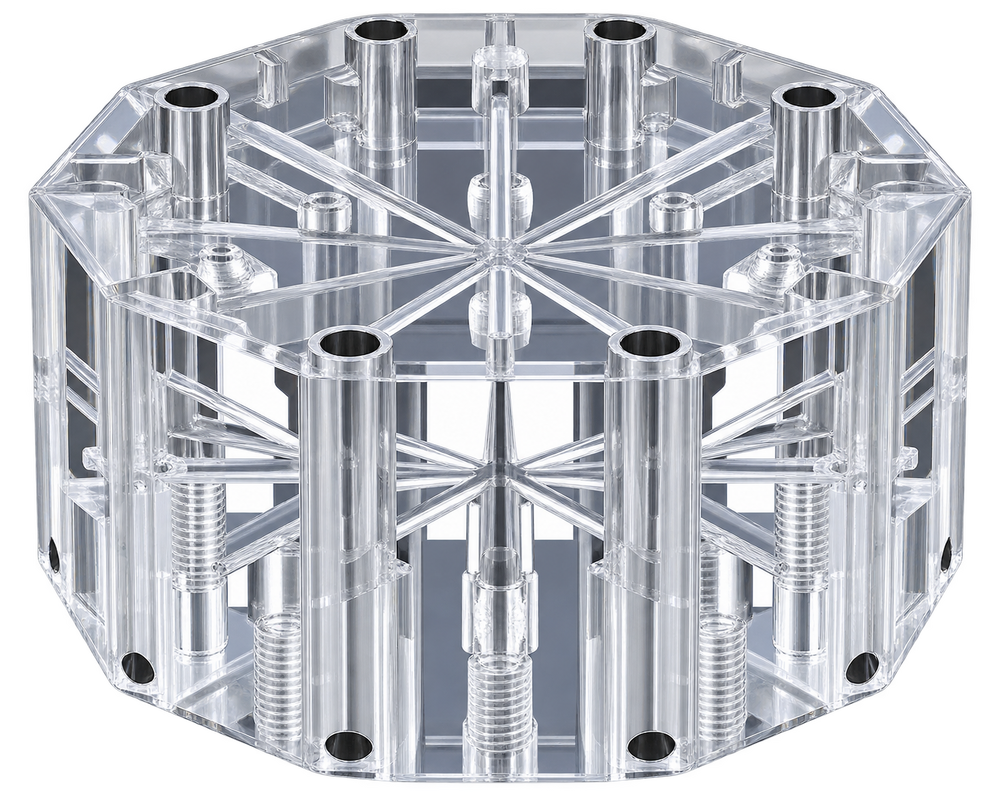

As shown in the part geometry, the transparent body incorporates radial ribs, vertical columns, narrow channels, recessed pockets, through holes, internal steps, and features located at different depths.

Several machined areas are surrounded by neighboring structures, leaving restricted space for cutting tools.

For this type of complex PMMA CNC machining, process planning needs to consider:

• tool access between closely spaced features;
• cutter reach into recessed areas;
• machining around slender ribs and columns;
• chip evacuation from narrow regions;
• heat control during PMMA machining;
• edge quality around detailed features;
• stability as surrounding material is removed;
• accessibility for subsequent polishing.

These characteristics make the component very different from a conventional CNC-machined acrylic plate, window, or simple enclosure.

Why 5-Axis Machining Was Selected for This PMMA Part

Not every complex plastic component requires five-axis machining.

For this design, however, important features are distributed in multiple orientations and some machining areas are partially blocked by surrounding geometry.

Using 5-axis plastic machining allows the cutting tool to approach these areas from more suitable angles.

This is particularly useful for:

• radial internal structures;
• side-facing features;
• holes in different orientations;
• recessed pockets;
• surfaces between surrounding ribs;
• areas with restricted tool access.

For this component, the main value of five-axis machining is therefore tool accessibility and process efficiency.

Suitable tool orientation can also reduce the need for excessively long cutters in certain areas, which is helpful when machining detailed internal structures.

Machining Slender Ribs and Internal Features in PMMA

The slender ribs and narrow internal structures visible in this component create another manufacturing consideration.

At the beginning of machining, these features are supported by the surrounding PMMA stock. As material is progressively removed, some sections become less supported.

The machining sequence therefore matters.

Cutting parameters, tool engagement, machining direction, and the order in which surrounding material is removed need to be considered according to the changing rigidity of the component.

The manufacturing strategy needs to balance:

Material Removal → Feature Support → Tool Access → Surface Condition

This is particularly important for detailed transparent plastic components where excessive cutting load could affect slender structures or visible edge quality.

High-Transparency PMMA Requires Surface Quality Control

PMMA, commonly known as acrylic, is naturally transparent. However, CNC machining does not automatically produce a high-clarity machined surface.

Cutter marks, local haze, edge defects, scratches, and handling marks may remain visible on transparent material even when dimensional requirements are achieved.

For high-transparency PMMA parts, the complete manufacturing route may include:

CNC Machining → Deburring → Surface Finishing → Polishing → Cleaning → Appearance Inspection → Protection

The required finishing level depends on the customer's actual application and which surfaces need the highest transparency.

For this reason, we recommend distinguishing between:

Critical Transparent Surfaces
Cosmetic Surfaces
Dimensional / Functional Surfaces

during project review.

This allows machining and finishing requirements to be planned more appropriately.

Internal Polishing Accessibility Matters

One of the most important characteristics of this particular part is the relationship between its transparency requirement and its dense internal geometry.

A surface that can be reached by a CNC cutting tool is not necessarily easy to polish afterward.

Large external surfaces are relatively accessible. Internal walls located between ribs, narrow channels, recessed pockets, and areas surrounded by columns can be considerably more difficult to finish manually.

For a custom PMMA machining RFQ, we therefore recommend identifying:

• surfaces requiring high clarity;
• internal areas requiring polishing;
• cosmetic surfaces;
• acceptable machining marks;
• edge appearance requirements;
• critical dimensions and tolerances.

This allows us to review machining feasibility and polishing feasibility together before production.

Not every surface requires the same level of clarity. Identifying critical transparent areas early also helps evaluate machining time, polishing effort, and production cost more accurately.

Consistency Across a 220-Piece Production Batch

Successfully producing the first component is only one part of this project.

The customer required approximately 220 pieces, so the manufacturing process also needed to remain stable through repeated machining and finishing cycles.

Important production considerations include:

Material Consistency → Fixture Control → Tool Condition → Cutting Parameters → Finishing → Inspection → Handling

Tool condition is particularly relevant when CNC machining transparent PMMA because changes in cutting performance may influence both dimensions and visible surface quality.

Finishing also needs to remain controlled so that significant appearance differences do not develop between parts within the same batch.

For purchasing teams sourcing custom PMMA parts, this process consistency is an important consideration when moving beyond prototype quantities.

Appearance Inspection and Protection After Machining

Quality control for transparent components should consider both dimensional and cosmetic requirements according to the customer's specifications.

Appearance inspection may include checking for:

• visible scratches;
• edge damage;
• machining marks;
• local haze;
• polishing consistency;
• handling marks.

Protection also remains important after inspection.

Direct contact between finished transparent components during storage or transportation can damage surfaces that have already been machined and polished.

Appropriate separation and protective packaging can therefore be incorporated before shipment to reduce part-to-part contact during international transportation.

PMMA CNC Machining Services for Custom Parts

YS Precision provides PMMA CNC machining services for complex transparent and precision plastic components based on customer 3D CAD models and 2D drawings.

Our capabilities include:

• custom PMMA CNC machining;
• complex transparent plastic parts;
• 5-axis plastic machining;
• multi-sided CNC machining;
• detailed internal feature machining;
• polishing and surface finishing;
• dimensional and appearance inspection;
• low-volume and batch production;
• protective packaging;
• international delivery.

We also CNC machine PC, POM, ABS, PEEK, PEI, PTFE, Nylon, and other engineering plastics according to customer requirements.

For each RFQ, we review the material grade, geometry, quantity, tolerances, tool accessibility, critical transparent surfaces, polishing accessibility, cosmetic requirements, and inspection criteria before production planning.
