Aluminum 6061 5 Axis CNC Machining For Large Aluminum Industrial Components

Aluminum 6061 5 Axis CNC Machining For Large Aluminum Industrial Components

6061 5 axis cnc machining

Aluminum 5 axis cnc machining

300mm 5 axis cnc machining services

Place of Origin:

China

Brand Name:

YS Precision

Certification:

ISO9001

Model Number:

5-Axis CNC Machining

CONTACT US
Request A Quote
Product Details
Project:
Large Aluminum Industrial Equipment Component
Industry:
Industrial Equipment
Material:
Aluminum 6061
Manufacturing Process:
5-Axis CNC Machining
Production Stage:
Prototype To Low-Volume Production
Prototype Quantity:
5 Parts
Production Quantity:
100 Parts
Approximate Maximum:
300mm
Highlight:

6061 5 axis cnc machining

,

Aluminum 5 axis cnc machining

,

300mm 5 axis cnc machining services

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
EPE Foam Inside And Carton Outside Or EPE Foam Inside And Wooden Outside
Delivery Time
3-7 Days For Sample Order, 10-15 Days For Bulk Order After, Depend On The Part Structure And Size
Payment Terms
T/T
Supply Ability
5000 Piece/Month
Product Description

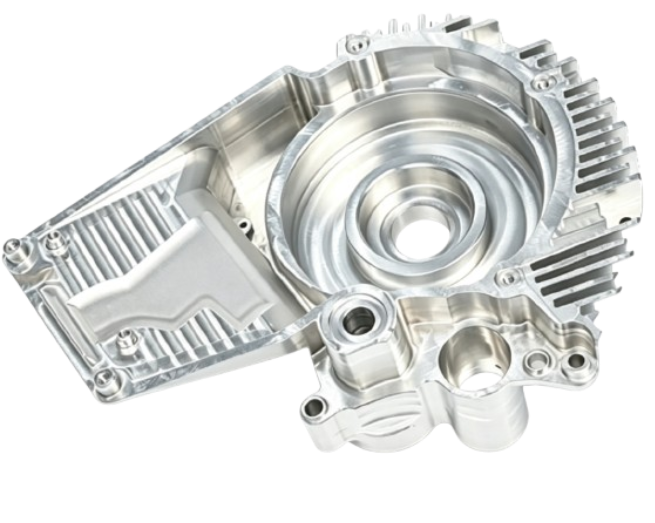

5-Axis CNC Machining for Large Aluminum Industrial Components

From Prototype Validation to Reliable Low-Volume Production

Large aluminum components used in industrial equipment often involve much more than simple CNC milling.

Deep cavities, precision holes, ribs, mounting interfaces, and features distributed across multiple faces require careful process planning, stable fixturing, and accurate positional control throughout machining.

For this project, YS Precision manufactured a large and complex Aluminum 6061 component for an overseas industrial equipment customer.

The customer initially ordered five prototype parts for dimensional, assembly, and surface evaluation. After the prototypes were successfully approved, the project moved into a 100-piece low-volume production order.

Using advanced 5-axis CNC machining, controlled production processes, fine sandblasting, and clear anodizing, we completed the production batch in approximately 20 working days.






Project Specifications

Project Information Details
Project Large Aluminum Industrial Equipment Component
Industry Industrial Equipment
Material Aluminum 6061
Manufacturing Process 5-Axis CNC Machining
Production Stage Prototype to Low-Volume Production
Prototype Quantity 5 Parts
Production Quantity 100 Parts
Approximate Maximum Size 300 mm
Machining Features Multi-Sided Features, Deep Cavities, Precision Holes, Ribs and Mounting Interfaces
Surface Finish Fine Sandblasting and Clear Anodizing
Production Lead Time Approximately 20 Working Days
Quality Control In-Process Inspection and Final Dimensional and Visual Inspection
Destination Overseas Customer






From Five Prototypes to One Hundred Production Parts

The customer did not immediately proceed with the 100-piece production order.

The project began with five prototype components, allowing the customer to evaluate:

  • Dimensional accuracy
  • Assembly compatibility
  • Functional performance
  • Machined surface quality
  • Final anodized appearance

The prototype stage was also an important opportunity for our engineering and production teams to establish a stable manufacturing process.

Once the prototypes had passed the customer’s evaluation, the customer approved the project and placed an additional order for 100 parts.

This progression from prototype validation to low-volume production demonstrated the customer’s confidence in our machining quality, process control, and project communication.






Understanding the Machining Requirements

This component contained a large amount of material removal and numerous machining features distributed across different surfaces.

Although Aluminum 6061 offers good machinability, large and structurally complex parts can still present significant manufacturing challenges.

The main requirements included:

Extensive Material Removal

The component contained large internal cavities and recessed areas.

A substantial amount of aluminum had to be removed while maintaining dimensional stability and preventing distortion.

Multi-Sided Machining

Critical features were located on several sides of the component.

Repeated repositioning on conventional CNC machines could increase setup time and introduce cumulative positioning variation.

Complex Internal Geometry

The part included ribs, deep pockets, precision holes, mounting areas, and internal profiles that required careful tool selection and optimized cutting paths.

Batch Consistency

After the prototype stage, the same dimensional and appearance standards had to be maintained consistently across all 100 production parts.






Why 5-Axis CNC Machining Was Selected

The component could not be evaluated purely as a collection of individual machined surfaces.

The positional relationship between the different faces, holes, mounting features, and internal structures was equally important.

Using 5-axis CNC machining allowed our engineers to access multiple surfaces with fewer setups.

This manufacturing strategy provided several important benefits:

  • Reduced repositioning between machining operations
  • Better positional accuracy between related features
  • Lower risk of accumulated setup error
  • Improved access to complex cavities and angled surfaces
  • Greater consistency across the complete production batch
  • More efficient machining of multi-sided geometry

For this project, five-axis machining was not selected simply because the part looked complex. It was selected because it provided a more stable and reliable way to maintain the required geometric relationships.






Engineering Review and Process Planning

Before CNC programming began, our engineering team reviewed the customer’s drawings and product requirements in detail.

The review focused on both manufacturability and production repeatability.

Key areas included:

  • Datum and reference selection
  • Machining sequence planning
  • Fixture and clamping strategy
  • Tool accessibility
  • Material removal sequence
  • Thin-wall and rib stability
  • Inspection requirements
  • Surface treatment allowances

For large aluminum components, the machining sequence can significantly affect dimensional stability.

Removing too much material from one area too early may release internal stress and cause deformation. For this reason, rough machining, semi-finishing, and finish machining were arranged carefully to maintain stability throughout the process.






Machining Strategy for a Large Aluminum Component

A stable machining process was established before the production batch began.

1. Material Preparation

The Aluminum 6061 material was inspected before machining to verify the correct grade, dimensions, and surface condition.

2. Rough Machining

The majority of excess material was removed using optimized roughing toolpaths.

Tool engagement and cutting loads were controlled to balance machining efficiency and part stability.

3. Semi-Finishing

A controlled amount of material was retained on critical surfaces before final machining.

This helped reduce the effect of stress release and prepared the component for accurate finishing.

4. Five-Axis Finish Machining

Multiple faces, internal features, mounting interfaces, and precision holes were finished using five-axis machining.

Fewer setups helped preserve the positional relationships between critical features.

5. Deburring and Cleaning

Sharp edges and machining residue were removed carefully before inspection and surface treatment.

6. Dimensional Inspection

Critical dimensions, hole positions, mounting surfaces, and multi-face relationships were checked throughout production.

7. Fine Sandblasting

A fine sandblasting process was applied to create a uniform matte texture across the component.

8. Clear Anodizing

The parts received clear anodizing to improve corrosion resistance while maintaining the natural metallic appearance of Aluminum 6061.

9. Final Inspection and Packaging

Dimensions, appearance, anodizing quality, and surface condition were inspected before packaging and international shipment.






Controlling Dimensional Stability During Material Removal

One of the most important manufacturing considerations was the large amount of aluminum removed from the original material.

When large cavities and deep pockets are machined, material stress may be released unevenly. This can cause:

  • Local deformation
  • Changes in flatness
  • Dimensional movement
  • Variation between mounting surfaces
  • Inconsistent results across a production batch

To reduce these risks, our team controlled the machining sequence and avoided completing all critical surfaces during the early stages.

The part was machined progressively, allowing the structure to remain stable before final dimensions were completed.

This approach helped maintain repeatability across all 100 production parts.






Surface Finishing: Fine Sandblasting and Clear Anodizing

After machining, the customer required a clean and uniform appearance suitable for industrial equipment.

The selected finishing combination was:

Fine Sandblasting

Fine sandblasting created a consistent matte texture and reduced the visibility of minor machining marks.

It also helped provide a more uniform appearance across the different machined surfaces.

Clear Anodizing

Clear anodizing improved the surface hardness and corrosion resistance of the aluminum while preserving its natural metallic color.

The anodized finish also provided a professional appearance appropriate for finished industrial equipment.

Because anodizing can reveal surface inconsistencies, the parts were inspected and prepared carefully before surface treatment.






Quality Control Throughout Production

Moving from five prototypes to 100 production parts required more than repeating the same CNC program.

Production consistency had to be monitored throughout the complete batch.

Our quality control process included:

First-Article Verification

The initial production part was checked before continuing with the full production run.

In-Process Inspection

Critical dimensions and machining features were inspected during production to identify variation at an early stage.

Tool Wear Monitoring

Tool condition was monitored to prevent dimensional drift or changes in surface quality during extended machining.

Final Dimensional Inspection

Critical holes, mounting surfaces, cavities, and feature relationships were checked before surface treatment and shipment.

Appearance Inspection

After sandblasting and anodizing, every component was inspected for:

  • Uneven color
  • Surface marks
  • Scratches
  • Dents
  • Anodizing defects
  • Edge damage

Only parts meeting both dimensional and cosmetic requirements were approved for packaging.






Production Lead Time

The complete production order of 100 parts required approximately 20 working days.

The lead time included:

  • Material preparation
  • CNC programming
  • Fixture preparation
  • Five-axis machining
  • In-process inspection
  • Deburring
  • Fine sandblasting
  • Clear anodizing
  • Final inspection
  • Export packaging

For a component with extensive material removal, complex multi-sided features, and surface treatment requirements, production planning was essential to maintain both quality and delivery performance.






From Prototype Validation to Stable Production

The successful transition from five prototypes to a 100-piece production order was one of the most important outcomes of this project.

The prototype stage helped confirm:

  • The machining strategy
  • Dimensional accuracy
  • Assembly suitability
  • Surface treatment quality
  • Customer acceptance criteria

Once these elements had been validated, the same process was standardized for production.

This reduced uncertainty and helped ensure that the production parts matched the approved prototypes.






Manufacturing Results

All 100 Aluminum 6061 components were completed and shipped to the overseas customer.

The project achieved:

  • Accurate multi-sided machining
  • Stable dimensional consistency
  • Controlled material removal
  • Uniform fine-sandblasted surfaces
  • Consistent clear anodizing
  • Reliable quality across the production batch
  • Completion within the planned production schedule

The project demonstrated YS Precision’s ability to support customers from initial prototype evaluation through repeatable low-volume manufacturing.






Suitable Applications

Our five-axis machining solutions for large and complex aluminum components can support applications including:

  • Industrial Equipment
  • Automation Systems
  • Robotics
  • Semiconductor Equipment
  • Medical Equipment
  • Energy Systems
  • Test and Measurement Equipment
  • Precision Mechanical Assemblies






Why Work with YS Precision?

Complex parts require more than access to a CNC machine.

They require engineering review, stable process planning, controlled manufacturing, reliable surface finishing, and consistent quality inspection.

YS Precision supports international customers with:

  • Engineering and DFM review
  • 5-axis CNC machining
  • Large aluminum component machining
  • Complex multi-sided machining
  • Prototype manufacturing
  • Sample validation
  • Low-volume production
  • Fine sandblasting and anodizing
  • In-process and final inspection
  • Export packaging and worldwide delivery

We help customers move from the first prototype to reliable production with less manufacturing risk.






From Prototype to Production with Confidence

A successful prototype should do more than confirm that one part can be manufactured.

It should establish a reliable foundation for future production.

For this industrial equipment project, the five prototype parts helped validate the design, machining process, and surface treatment before the customer moved forward with 100 production components.

At YS Precision, we combine engineering review, five-axis machining, quality control, and responsive project communication to help customers manufacture complex parts with confidence.

Send us your CAD files and project requirements for an engineering review and quotation.
