PEI CNC Machining for Complex Precision Plastic Parts

PEI CNC machining requires careful process control when high-value material, detailed geometry, dimensional requirements, and batch production come together in one project.

For this order, YS Precision manufactured approximately 600 custom PEI parts for an overseas customer. Each component measures around 120 × 70 × 30 mm, with critical dimensions specified to ±0.05 mm.

The components contain different combinations of closely spaced slots, recessed pockets, precision holes, stepped surfaces, internal channels, and narrow remaining sections. Because PEI is a relatively expensive high-performance engineering thermoplastic, maintaining machining consistency while reducing avoidable material waste was an important consideration throughout production.

The manufacturing strategy therefore focused on three priorities:

Dimensional Consistency + Process Stability + Material Waste Control

Custom PEI CNC Machining Project

Dense Slots, Pockets and Detailed Machined Features

These PEI components are relatively compact, but the machining difficulty comes from the high concentration of features within a limited area.

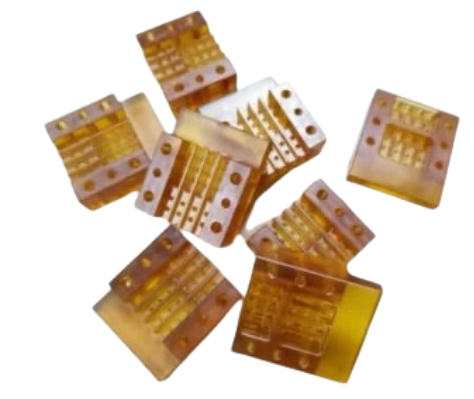

As shown in the parts, the geometry includes multiple parallel slots, rectangular recessed pockets, mounting and locating holes, stepped surfaces, internal channels, and narrow sections between adjacent features.

Some slots are positioned close together, leaving relatively thin walls after surrounding material has been removed.

For this type of precision PEI machining, process planning needs to consider:

• cutter selection for narrow slots;
• tool access into recessed areas;
• machining sequence;
• cutting load and local heat generation;
• chip evacuation;
• edge condition;
• stability of narrow remaining sections;
• dimensional consistency across repeated parts.

Rather than treating every hole, slot, or pocket independently, the complete geometry needs to be considered when establishing the machining sequence.

Machining High-Value PEI Without Unnecessary Material Waste

PEI, or polyetherimide, is a high-performance engineering thermoplastic valued for its combination of rigidity, mechanical strength, dimensional stability, electrical properties, and elevated-temperature performance.

It is also significantly more expensive than many conventional engineering plastics.

That changes the economics of CNC production.

A rejected component represents not only lost machine time, but also the loss of a high-value PEI blank. When an order involves approximately 600 parts, repeated scrap can quickly affect:

Material Cost → Production Cost → Lead Time → Delivery Reliability

For this reason, the objective is not simply to achieve the shortest possible cycle time.

Tool selection, cutting parameters, workholding, machining sequence, and inspection planning need to work together to establish a stable production process and reduce avoidable material loss.

Maintaining ±0.05 mm Critical Dimensions

Critical dimensions on these components are specified to ±0.05 mm.

The tolerance value itself is not the only manufacturing challenge. The greater consideration is maintaining those dimensions consistently across approximately 600 PEI components containing multiple slots, pockets, holes, and narrow remaining sections.

As material is progressively removed, the geometry and rigidity of the workpiece change.

The machining strategy therefore needs to consider:

Workholding → Machining Sequence → Tool Condition → Critical Feature Machining → In-Process Checks → Final Inspection

Monitoring critical dimensions during production can help identify dimensional trends before the same issue affects a larger number of expensive PEI parts.

For batch orders, this is more meaningful than simply demonstrating that one first article can meet the drawing.

Machining Narrow Slots and Thin Remaining Sections

The closely spaced slots visible in these components create another manufacturing consideration.

Before machining, the surrounding stock supports the workpiece. As slots and pockets are progressively created, the remaining walls and local structures become narrower.

Cutting parameters, cutter engagement, and machining sequence therefore need to account for the changing geometry.

The goal is to balance:

Machining Efficiency + Feature Stability + Edge Quality + Dimensional Control

For high-value engineering plastics, aggressive material removal is not necessarily the most economical strategy if it increases the risk of rejected components.

This becomes especially important when the same narrow features need to be reproduced consistently across hundreds of parts.

From Drawing Review to Stable PEI Production

Before production begins, we review the customer's 3D CAD model, 2D technical drawing, PEI grade, tolerances, quantity, and inspection requirements.

For a component like this, manufacturing review may focus on:

• critical ±0.05 mm dimensions;
• narrow slots and recessed pockets;
• thin remaining sections;
• hole locations;
• workholding strategy;
• tool accessibility;
• inspection points;
• potential machining risks.

This review helps establish the machining and inspection strategy before the complete batch enters production.

For purchasing teams, this engineering stage is also commercially important. Identifying potential manufacturing risks early can contribute to more predictable quality, material usage, production cost, and delivery performance.

Why Process Stability Matters to Purchasing Teams

For a production buyer, part cost is influenced by more than CNC cycle time.

Material utilization, scrap, inspection efficiency, production consistency, and delivery reliability all contribute to the real cost of a machined PEI component.

A low initial machining price may not remain economical if an unstable process results in repeated material loss, rework, or production delays.

This is particularly relevant with PEI because the material itself represents a meaningful portion of the finished part cost.

For high-value custom plastic parts, establishing a repeatable manufacturing process helps support the three areas purchasing teams ultimately care about:

Quality + Cost + Delivery

Production CNC Machining for 600 PEI Parts

Producing several acceptable development parts proves machining feasibility. Producing approximately 600 components requires repeatable production control.

During batch CNC machining, attention may be given to:

• fixture repeatability;
• cutting tool condition;
• machining parameters;
• critical dimensions;
• repeated slot features;
• hole locations;
• edge condition;
• in-process inspection results.

Tool condition becomes increasingly important when the same detailed features are machined repeatedly.

In-process checks also provide an opportunity to identify dimensional changes before the complete production run is finished, helping reduce the risk of repeated nonconforming parts and unnecessary PEI material loss.

Where CNC Machined PEI Parts Are Used

PEI is used for technical components where the material's combination of thermal performance, mechanical strength, dimensional stability, and electrical properties is beneficial.

Depending on the specified PEI grade and application requirements, CNC machined PEI parts may be found in:

• semiconductor equipment;
• electronics and electrical systems;
• test and measurement equipment;
• precision industrial equipment;
• aerospace assemblies;
• specialized fixtures and mechanical systems.

The exact end application of this particular project is undisclosed.

For this reason, the components are manufactured according to the customer's specified material grade, CAD model, technical drawing, dimensional tolerances, and inspection requirements, rather than assumptions about their final use.

PEI CNC Machining Services for Custom Production Parts

YS Precision provides PEI CNC machining services for custom high-performance plastic components, from development parts to production CNC machining and repeat batch orders.

Our capabilities include:

• custom PEI CNC machining;
• CNC machined PEI parts;
• precision PEI components;
• narrow slot and pocket machining;
• detailed holes and internal features;
• multi-sided plastic machining;
• batch CNC production;
• dimensional inspection;
• engineering plastic machining services;
• international delivery.

In addition to PEI, we CNC machine PEEK, POM, PTFE, Nylon, PC, ABS, PMMA, and other engineering plastics according to customer specifications.

For each RFQ, we review the material grade, geometry, quantity, tolerances, critical features, machining risks, inspection requirements, and production volume before developing the manufacturing approach.

Request a Quote for Custom PEI CNC Machining

If you are evaluating a PEI CNC machining manufacturer, PEI machining supplier, custom PEI parts manufacturer, or precision plastic machining company, send us your CAD files and technical drawings for manufacturing review.

For quotation, please provide:

3D CAD + 2D Drawing + PEI Grade + Quantity + Critical Tolerances + Surface Requirements + Inspection Requirements

For high-value PEI components, early review of narrow slots, thin sections, critical dimensions, and machining risks can help establish a more stable production process and reduce avoidable material waste.

Send your PEI part drawings to YS Precision for manufacturing review and quotation.
