5-Axis CNC Machining of Stainless Steel 316 Impeller Components for Energy Pump Applications

Manufacturing Complex Flow-Control Components with Precision CNC Technology

Energy equipment often requires components that can operate reliably under demanding conditions, including continuous operation, pressure changes, and harsh working environments.

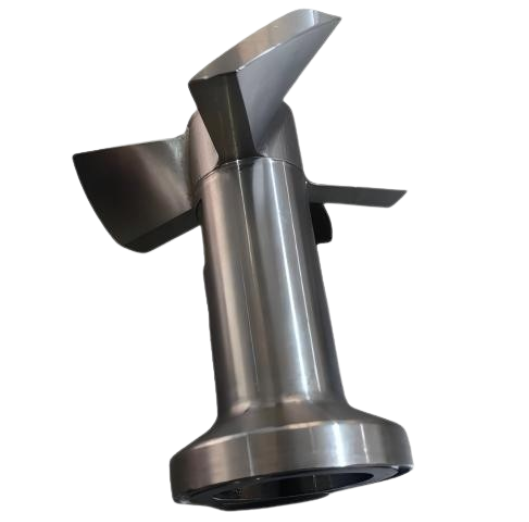

YS Precision manufactured this stainless steel 316 impeller component for an overseas energy pump manufacturer. The part features complex blade geometry and precision flow channels, requiring advanced machining technology to achieve stable performance during operation.

Unlike standard machined parts, pump rotating components require not only dimensional accuracy but also careful control of geometry, balance, and surface quality to ensure efficient fluid movement.

Project Information

Machining Challenge: Complex Fluid-Driven Geometry

The main challenge of this project was not only achieving tight tolerance, but also accurately reproducing the blade geometry.

The component contains:

• Angled blade structures
• Curved machining surfaces
• Complex transition areas
• Multiple precision features

For rotating energy components, even small deviations in geometry can affect:

• Fluid flow efficiency
• Rotational stability
• Equipment performance

Our engineers developed a dedicated machining strategy to optimize tool paths and maintain consistent accuracy throughout production.

Advanced 5-Axis CNC Machining for Impeller Parts

The complex blade surfaces required continuous multi-axis movement.

Compared with conventional machining methods, 5-axis CNC machining provides advantages for this type of component:

• Fewer repositioning operations
• Improved geometric accuracy
• Better surface consistency
• More efficient machining of curved features

This allowed us to manufacture the complete component while maintaining the customer's required ±0.01 mm tolerance.

Stainless Steel 316 Machining Expertise

Stainless Steel 316 was selected because of its excellent performance in demanding environments.

Key advantages include:

• Excellent corrosion resistance
• High mechanical strength
• Long-term durability

However, machining 316 stainless steel requires careful process control due to:

• Work hardening characteristics
• Higher cutting resistance
• Increased tool wear

Our machining engineers optimized cutting parameters and tooling solutions to achieve stable production quality.

Small Batch Precision Manufacturing for Energy Equipment

The project required only 20 pieces, but the manufacturing standard was equivalent to production-level components.

For energy equipment manufacturers, prototype and low-volume production require:

• Reliable machining capability
• Consistent repeatability
• Engineering support
• Strict inspection procedures

YS Precision supports customers from early-stage product development to small-batch manufacturing, helping them validate designs before mass production.

Quality Control for Critical Industrial Components

To ensure reliability, each component was inspected through our quality process:

• Material verification
• Machining process inspection
• Critical dimension measurement
• Final quality inspection before shipment

The finished parts were carefully packed and exported to the customer's location for integration into their energy pump system.

Why Energy Equipment Manufacturers Choose YS Precision

YS Precision provides precision CNC machining services for industries requiring complex and reliable components:

• Energy equipment
• Industrial pumps
• Robotics systems
• Medical devices
• Automation equipment
• Aerospace applications

Our capabilities include:

✓ 5-axis CNC machining
✓ Stainless steel precision machining
✓ Complex geometry manufacturing
✓ Prototype and low-volume production
✓ Surface finishing and export support
