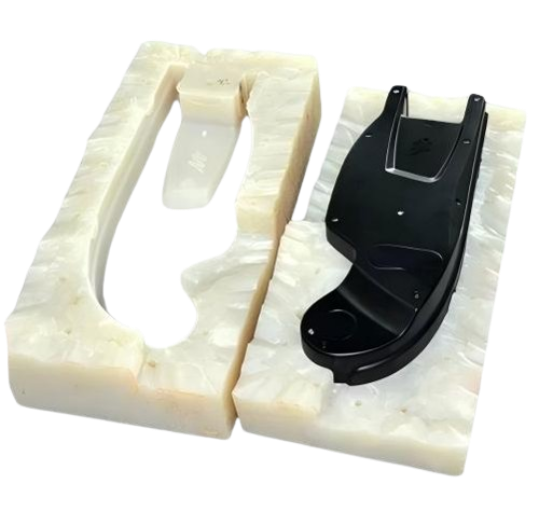

Automotive Vacuum Casting Prototypes for Early-Stage Functional Testing

Black PP-Like Parts for a Curved Automotive Structural Component

During the early stages of automotive product development, engineers often need physical parts before the design is mature enough for production tooling.

The objective at this stage is not necessarily to reproduce the final cosmetic appearance. It is to turn a CAD design into functional parts that can be handled, assembled, tested, and evaluated in the real product environment.

For this project, the customer was developing an automotive structural plastic component with multiple curved surfaces and integrated mounting features.

A small batch of black PP-like vacuum casting prototypes was required for initial R&D testing.

Because the parts were intended primarily for engineering evaluation, no painting was required. After casting, the components were carefully trimmed, deburred, and cleaned before being supplied to the customer for testing.

The prototypes gave the engineering team an opportunity to evaluate the physical design and collect useful feedback before moving further into the automotive development program.

Project Overview

The Development Goal: Learn from the Physical Part

This project was at an early stage of development.

The customer was not yet looking for a production-ready appearance sample or a final pre-tooling approval part.

Instead, the engineering team needed physical components that could answer basic but important development questions:

• Does the overall structure work as intended?
• Are the curved sections shaped correctly?
• Does the part fit into the intended assembly?
• Are the mounting areas positioned appropriately?
• Is there interference with surrounding components?
• Are the openings and local features practical?
• Which areas should be adjusted in the next design revision?

These are questions that CAD analysis can support, but physical parts often provide additional information once the component is actually handled and assembled.

For this reason, the vacuum casting parts were treated as engineering test samples rather than cosmetic display models.

Why the Curved Geometry Matters

A defining characteristic of this component is its continuous three-dimensional form.

The part does not consist of simple flat walls and rectangular features. Its profile changes along its length, with curved surfaces connecting several functional areas.

This creates several considerations during prototype manufacturing.

Continuous 3D Surfaces

The main body follows a curved profile that needs to be reproduced consistently from the master pattern through to the finished casting.

Changing Cross-Sections

The width, depth, and local geometry change along the component rather than remaining constant.

Integrated Mounting Features

Mounting and locating areas are built directly into the curved structure.

Their relationship to the main body is important during subsequent assembly testing.

Local Openings

Holes and openings are incorporated into different areas of the part and need to remain clean and usable after casting.

Edge Transitions

The component contains multiple transitions between curved surfaces, edges, and functional areas.

For an early-stage engineering prototype, reproducing the complete form is important because the customer needs to evaluate how these features work together as a physical component.

Why Vacuum Casting Was Selected

The customer needed only a limited number of parts for the first round of testing.

At this stage, committing to production tooling would not have been appropriate because the design could still change based on the results of the physical evaluation.

Vacuum casting provided a practical route from digital design to a small batch of functional plastic parts.

The development cycle remained flexible:

CAD Design

→ Master Pattern

→ Silicone Mold

→ PP-Like Vacuum Casting Parts

→ Functional Testing

→ Engineering Feedback

→ Design Revision

The important point is that the prototype was not the end of the process.

It was a tool for generating information for the next design iteration.

PP-Like Material for Early Functional Evaluation

The customer specified PP characteristics for the prototype parts.

In vacuum casting, polyurethane-based casting materials can be selected to simulate certain properties of thermoplastics such as polypropylene.

For this project, a PP-like casting material was selected to provide the physical characteristics required for initial functional evaluation.

Depending on the specific casting system, PP-like materials can offer a useful combination of:

• Flexibility
• Toughness
• Lightweight behavior
• Handling strength
• Good surface reproduction
• Suitability for functional prototype testing

The purpose was not to claim that the vacuum-cast material behaves exactly like injection-molded polypropylene.

Instead, the material was selected because it provided a useful physical representation for the customer's current development stage.

If later testing requires actual production-grade PP behavior, another manufacturing process may be more appropriate.

Why These Parts Were Not Painted

Painting is useful when a prototype needs to reproduce a final cosmetic appearance.

That was not the priority for this project.

The customer wanted black functional test parts, and the parts could be produced in the required color without an additional painted coating.

This kept the prototype focused on what mattered during early R&D:

Structure

• Geometry
• Material Behavior
• Assembly
• Functional Features

It also allowed the engineering team to evaluate the casting itself without a coating masking the underlying surface.

For this development stage, a clean natural cast surface was more useful than a heavily finished appearance model.

Post-Processing Still Matters on Functional Prototypes

Although no painting was required, the parts still needed careful post-processing before testing.

Vacuum casting can leave gates, flash, and parting-line remnants that need to be removed.

For this project, post-processing included:

Gate Removal

Excess casting material was removed from the gate areas.

Flash Trimming

Thin material around parting areas was carefully trimmed.

Deburring

Edges and openings were cleaned to remove unwanted sharp material.

Feature Cleanup

Mounting areas, holes, and other functional features were checked and refined where necessary.

Final Cleaning

The finished parts were cleaned before inspection and delivery.

These operations are particularly important for functional prototypes because unwanted flash or rough edges can interfere with assembly and create misleading test results.

Manufacturing Around the Test Objective

The prototype manufacturing process was planned according to what the customer needed to learn from the parts.

01 — CAD Review

The 3D model was reviewed with attention to curved surfaces, wall sections, undercuts, mounting features, openings, and functional interfaces.

02 — Master Pattern Production

A master pattern was manufactured according to the approved geometry.

03 — Master Preparation

The pattern was cleaned and refined before silicone mold production.

04 — Silicone Mold Making

The mold was prepared according to the part geometry, parting strategy, and demolding requirements.

05 — Vacuum Casting

Black PP-like parts were produced for the customer's initial testing program.

06 — Trimming & Deburring

Casting remnants were removed and functional areas were cleaned.

07 — Inspection

The prototypes were checked before being released for engineering evaluation.

The process was deliberately kept focused on functional usability rather than decorative finishing.

What the Customer Can Evaluate

The physical prototypes allow the engineering team to evaluate several aspects of the design.

Overall Geometry

Does the actual three-dimensional form correspond to the intended design?

Curved Surfaces

Do the continuous curves work correctly within the surrounding structure?

Fit

Does the component fit into the intended installation area?

Mounting Features

Are the locating and mounting areas positioned correctly?

Assembly

Can the component be installed and removed as intended?

Interference

Are there unexpected contact points with surrounding components?

Material Response

Does the PP-like material provide useful feedback during handling and functional testing?

Design Direction

What should be retained or modified in the next CAD revision?

The purpose of the prototypes was therefore not simply to confirm the existing design.

It was to help determine how the design should develop next.

Early R&D Is Different from Pre-Tooling Validation

Automotive prototypes can serve very different purposes depending on when they are produced.

This distinction is important.

Early R&D Prototype

Used to explore geometry, functionality, material behavior, and design direction.

Engineering Validation Prototype

Used to check fit, interfaces, assembly, and more mature product requirements.

Pre-Tooling Prototype

Used to confirm the design before production tooling is released.

Appearance Prototype

Used to evaluate texture, color, gloss, and cosmetic quality.

This project belonged to the early R&D stage.

The customer expected to learn from the prototype and potentially continue modifying the design.

That is why the manufacturing priorities were different from those of a finished appearance model or tooling-approval sample.

Prototype → Test → Modify → Test Again

Automotive development is often iterative.

The first physical design does not always need to be perfect. It needs to provide useful information.

For this type of project, the development cycle can look like:

CAD Design

→ Vacuum Casting Prototype

→ Physical Testing

→ Engineering Feedback

→ CAD Modification

→ Second Prototype if Required

→ Further Validation

→ Production Preparation

Vacuum casting can support this iterative process when the engineering team needs a limited number of plastic parts between design revisions.

Choosing the Prototype Process Based on What Needs to Be Tested

Vacuum casting is useful for many low-volume plastic prototype projects, but it is not the correct process for every test.

The manufacturing method should be selected according to the engineering objective.

Important considerations include:

• Required material behavior
• Part geometry
• Prototype quantity
• Wall thickness
• Curved surfaces
• Undercuts
• Assembly interfaces
• Tolerance requirements
• Mechanical loads
• Surface requirements
• Final production process

For this project, the combination of curved automotive geometry, PP-like material requirements, a small prototype quantity, and early-stage functional testing made vacuum casting a suitable solution.

If the customer later requires testing that depends specifically on the mechanical properties of injection-molded PP, prototype injection molding or another process using actual polypropylene may provide more representative results.

Automotive Vacuum Casting for Functional R&D

This project shows how vacuum casting can be used as part of an automotive engineering development cycle rather than simply as a method for producing appearance samples.

The prototype requirements included:

• Automotive structural plastic component
• Multiple curved surfaces
• PP-like material
• Black color
• Natural cast finish
• No painting
• Trimming and deburring
• Functional R&D testing

The resulting parts gave the customer something CAD data alone could not provide:

a physical component that could be assembled, handled, tested, and used to guide the next design decision.

Need Automotive Prototype Parts for Early R&D?

If you are developing an automotive plastic component and need physical parts for early functional testing, send YS Precision your:

• 3D CAD data
• Required quantity
• Intended production material
• Required prototype material behavior
• Assembly information
• Functional interfaces
• Testing objectives

The project can then be evaluated to determine whether vacuum casting, CNC machining, 3D printing, prototype injection molding, or another manufacturing method is most appropriate.

The right prototype process depends on what you need to learn from the part—not simply how the part needs to look.
