Electronic Enclosure Prototype – Vacuum Casting for Functional Testing

When developing a new electronic product, engineers often need plastic enclosure prototypes before the design is released for injection molding. These parts may be used to check assembly, internal fit, openings, local features, product handling, and exterior appearance.

For this European electronics project, YS Precision manufactured approximately 20 sets of custom electronic enclosure prototypes measuring around 40 × 30 mm.

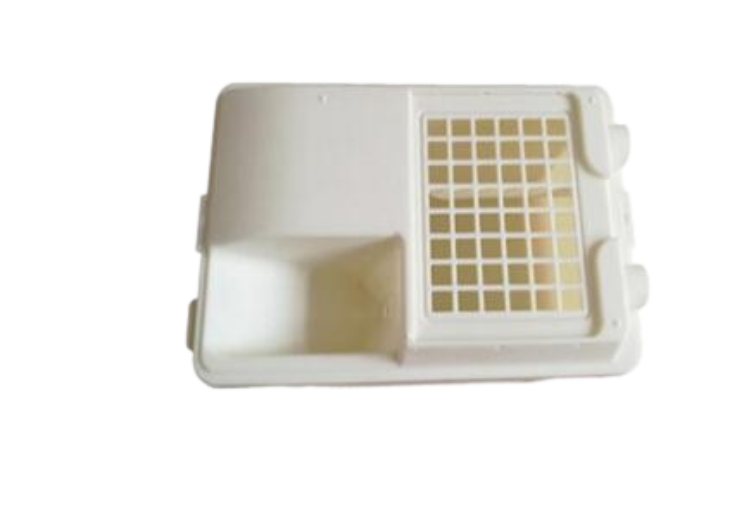

The compact housing includes a recessed cavity, a dense grid section, edge features, and several small details within a limited area. The parts were manufactured by vacuum casting using an ABS-like polyurethane resin.

After casting and surface preparation, approximately 10 sets were painted black and 10 sets red. The finished parts were shipped to Europe for functional testing, assembly evaluation, and appearance review before the customer moved to the next development stage.

Electronic Enclosure Prototype Project

Small Plastic Housing with Detailed Grid and Assembly Features

A small electronic enclosure can contain more engineering detail than its overall size suggests.

This housing combines a closely spaced grid, recessed internal area, side features, outer walls, and local assembly structures within a compact 40 × 30 mm design.

For an engineering test part, reproducing these features is important because the enclosure may need to interface with internal or mating components.

Depending on the product design, engineers can use physical enclosure prototypes to evaluate:

• component fit and available clearance;
• assembly interfaces;
• openings and grid geometry;
• local structural details;
• overall housing shape;
• handling and exterior appearance.

For this reason, the customer required a small batch rather than a single appearance model.

Why Use Vacuum Casting for Low-Volume Electronic Enclosures?

The customer needed approximately 20 sets for product testing, while the design was not yet ready for production injection molding.

Vacuum casting, also known as urethane casting, provided a suitable low-volume manufacturing route.

An accurate master was prepared first, followed by silicone tooling. The enclosure parts could then be reproduced in ABS-like polyurethane resin.

For this project, vacuum casting offered a useful combination of:

• low tooling investment for prototype quantities;
• repeatable plastic housings for engineering testing;
• reproduction of detailed grid and enclosure features;
• rigid ABS-like material characteristics;
• surfaces suitable for painting;
• multiple color options from the same design;
• flexibility before final injection molding tooling.

This makes vacuum casting useful for low-volume plastic enclosure prototypes when engineers need multiple test parts without committing to production tooling too early.

ABS-Like Polyurethane Resin for Functional Prototype Parts

The enclosures were manufactured from an ABS-like polyurethane resin, a commonly used material for vacuum cast rigid plastic prototypes.

It can be considered for:

• electronic enclosure prototypes;
• plastic housing prototypes;
• consumer electronics prototypes;
• handheld device housings;
• control unit enclosures;
• appliance and equipment covers.

For engineering development, ABS-like polyurethane parts can support fit checks, assembly testing, design verification, handling evaluation, and short-term functional testing.

However, ABS-like polyurethane is not identical to production-grade ABS.

If the test requires specific flame-retardant properties, operating temperature, electrical performance, chemical resistance, or other final-material characteristics, this should be identified before manufacturing.

Depending on the test requirement, CNC machining in the specified engineering plastic or prototype injection molding may be a better solution.

Black and Red Enclosures for Color and Appearance Evaluation

This project also required two different color options.

Approximately 10 sets were finished in black and 10 sets in red.

After vacuum casting, the parts were trimmed and surface-prepared before painting. This helped produce a cleaner and more consistent cosmetic surface for evaluation.

For electronic and consumer products, physical prototypes can help engineering and product teams evaluate color, material, finish, surface quality, and overall product appearance before final specifications are released.

The two-color batch allowed the customer to combine engineering testing with appearance comparison within the same development project.

CNC Machining, Vacuum Casting or Prototype Injection Molding?

The appropriate process for a plastic enclosure prototype depends on quantity, material, geometry, tolerance, and testing purpose.

CNC Machining

CNC machining may be preferred when only a few parts are required, tight machined dimensions are important, or the prototype must use the actual engineering plastic.

Vacuum Casting

Vacuum casting is often suitable when multiple similar plastic housings are required for functional testing, assembly verification, or appearance evaluation, while production tooling is still premature.

Prototype Injection Molding

Prototype injection molding becomes more relevant when the design is stable, production-grade thermoplastics are required, or the project needs to evaluate molded material and manufacturing behavior.

Selecting the process according to the engineering objective can help control development cost, lead time, and tooling risk.

Low-Volume Plastic Parts for Electronic Product Development

YS Precision supports R&D and purchasing teams with electronic enclosure prototyping and low-volume plastic manufacturing based on customer CAD data and technical requirements.

Our capabilities include:

• custom electronic enclosure prototypes;
• plastic housing prototypes;
• CNC machined plastic parts;
• vacuum casting / urethane casting;
• ABS-like and PC-like polyurethane parts;
• functional prototype parts;
• prototype injection molding;
• custom painting and color matching;
• surface finishing and inspection;
• international shipment.

For each project, we review the part geometry, quantity, material, tolerances, surface requirements, intended test, and delivery schedule before recommending a manufacturing process.
