Textured Vacuum Casting Parts for an Electronic Device Prototype

Low-Volume Black Prototype Parts with Molded Surface Texture

For electronic product development, a prototype needs to represent more than the basic geometry of the final component.

When appearance is important, surface texture, gloss, color, edge quality, and coating consistency can all influence how a prototype is evaluated.

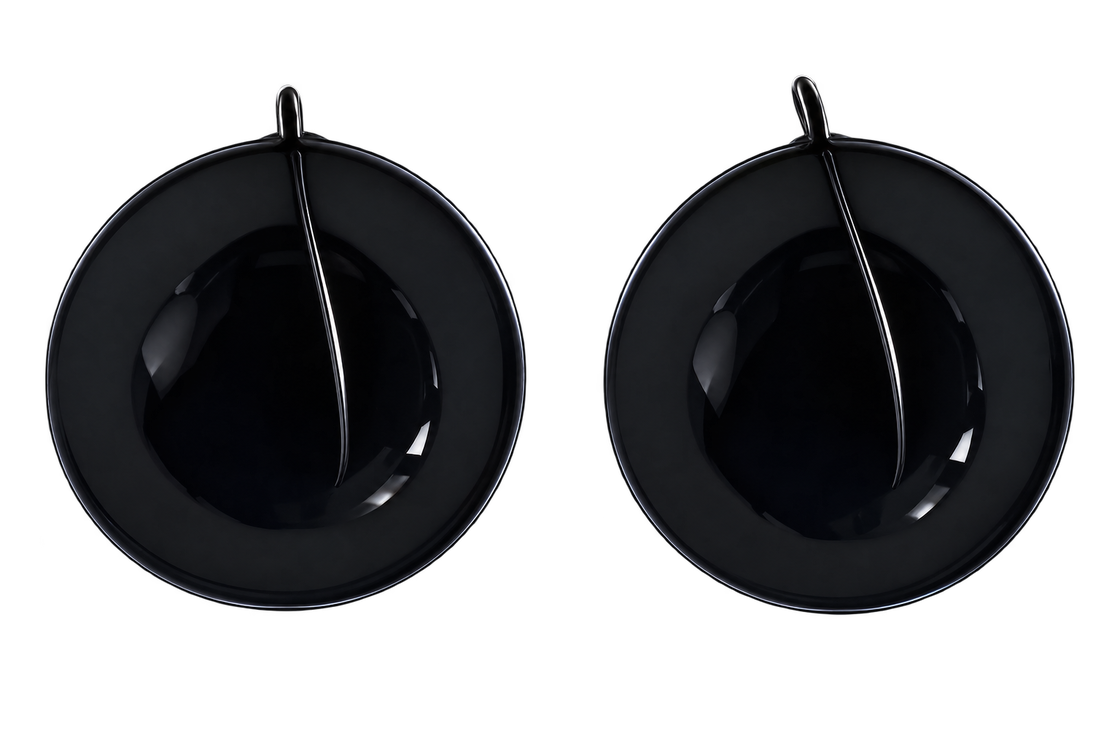

For this project, an overseas customer required approximately 15 black prototype parts for an electronic device. The parts were produced using vacuum casting and required additional surface finishing, including sanding and matte black painting.

The customer also wanted the prototype surface to have a subtle molded texture rather than a completely smooth finish.

To achieve this effect, the surface texture was created on the master pattern by sandblasting before the silicone mold was made. The resulting texture could then be reproduced through the mold onto the vacuum casting parts.

After casting, the parts were finished and coated with a matte black surface treatment before being exported to the United States for product evaluation.

Project Overview

The Prototype Required More Than a Black Surface

At first glance, this project may appear to be a straightforward black plastic prototype.

The actual requirement was more involved.

The customer wanted the parts to have a surface appearance closer to a textured molded plastic component, rather than a smooth cast part with black paint.

That meant several elements had to work together:

Master Pattern Surface
→ Texture Creation
→ Silicone Mold
→ Texture Transfer
→ Vacuum Casting
→ Sanding & Cleanup
→ Matte Black Coating

The final appearance was therefore determined by the complete manufacturing sequence, not simply by the choice of black paint.

Creating Molded Texture Before Vacuum Casting

One of the key technical considerations in this project was the surface texture.

If the master pattern is completely smooth, the silicone mold will reproduce a smooth surface. Applying matte paint afterward can reduce gloss, but it does not necessarily create the same visual character as a fine molded texture.

For this reason, the required texture was introduced before silicone mold production.

The master pattern was carefully sandblasted to create a controlled fine texture.

The textured master pattern was then used to produce the silicone mold.

During vacuum casting, the mold surface transferred the texture to the prototype parts.

Surface Texture Workflow

Master Pattern

↓

Controlled Sandblasting

↓

Textured Master Surface

↓

Silicone Mold

↓

Texture Transfer During Casting

↓

Vacuum Casting Parts

↓

Sanding & Surface Preparation

↓

Matte Black Coating

This approach allows the prototype to achieve a more molded-like appearance while still using a low-volume vacuum casting process.

Why Surface Texture Matters in Electronic Products

Electronic products are often judged as complete consumer products rather than purely mechanical assemblies.

A small difference in surface treatment can change the perceived quality of a prototype.

For example, these two parts may have identical dimensions:

• Smooth glossy black surface
• Fine textured matte black surface

Yet they can look and feel completely different.

Surface texture can influence:

• Light reflection
• Gloss level
• Visual depth
• Tactile feel
• Fingerprint visibility
• Perceived product quality
• Consistency with adjacent components

For industrial designers and product engineers, this makes surface treatment an important part of prototype evaluation.

Sanding and Matte Black Finishing

After vacuum casting, the parts required additional preparation before the final coating.

Casting gates, flash, and other process marks were removed during the finishing stage.

The surface was then prepared for painting, with attention to maintaining the intended appearance of the prototype.

The finishing process included:

Casting Cleanup

Removal of gates, flash, and other unwanted casting remnants.

Surface Sanding

Selected areas were sanded and prepared to achieve a suitable base for coating.

Surface Preparation

The parts were cleaned and prepared before painting.

Matte Black Coating

A matte black finish was applied to achieve the required color and low-gloss appearance.

The objective was to create a controlled combination of:

Texture + Color + Gloss + Surface Quality

rather than simply applying black paint to a cast part.

Approximately 15 Parts for Product Evaluation

The customer required only around 15 pieces.

At this stage, the objective was not mass production. The parts were intended for product development and evaluation.

A small batch allowed the customer to distribute samples among different members of the development team and evaluate the appearance across multiple parts.

The samples could be used for:

• Industrial design review
• Appearance approval
• Assembly evaluation
• Engineering review
• Product demonstrations
• Internal testing
• Customer presentations
• Pre-production assessment

Producing multiple parts also provided an opportunity to assess the consistency of the surface finish, rather than judging the result from a single sample.

From CAD Model to Finished Appearance Prototype

This project involved several manufacturing stages, and each stage affected the final result.

01 — CAD & Requirement Review

The design data was reviewed together with the required quantity, black color, surface texture, and finishing requirements.

02 — Master Pattern Manufacturing

A master pattern was produced based on the approved design.

03 — Texture Development

The master pattern surface was sandblasted to create the required fine texture.

04 — Silicone Mold Making

The textured master pattern was used to produce the silicone mold.

05 — Vacuum Casting

Approximately 15 prototype parts were manufactured through vacuum casting.

06 — Sanding & Cleanup

Casting gates and flash were removed, followed by the required surface preparation.

07 — Matte Black Painting

The parts were coated with the specified matte black finish.

08 — Inspection & Export

The finished samples were inspected, packaged, and shipped to the customer's team in the United States.

Appearance Validation Before Production

A prototype can serve different purposes depending on the stage of product development.

Some prototypes are mainly used to verify dimensions.

Others need to demonstrate the appearance and physical character of the future product.

This project belonged to the second category.

The customer needed to evaluate not only:

“Is the geometry correct?”

but also:

“Does this look and feel like the product we intend to manufacture?”

The vacuum casting samples therefore provided a useful reference for evaluating:

Geometry

Does the physical part match the approved design?

Surface Texture

Is the fine molded texture appropriate for the product?

Color

Does the black finish meet the intended appearance?

Gloss

Does the matte surface provide the desired visual effect?

Surface Quality

Are the edges, transitions, and painted areas consistent?

Overall Product Appearance

Does the prototype provide a realistic representation of the intended electronic product?

Why Vacuum Casting Was Suitable for This Quantity

The customer required only approximately 15 parts.

At this development stage, a production injection mold would have required a considerably larger tooling commitment.

Vacuum casting offered a practical solution for producing a limited number of representative parts while the product was still being evaluated.

The development path could therefore be:

CAD Design
→ Master Pattern
→ Surface Texture Development
→ Silicone Mold
→ Vacuum Casting
→ Surface Finishing
→ Appearance Validation
→ Production Tooling

This gives the customer an opportunity to resolve appearance and design issues before moving into the final production process.

Prototype Surface Finishing Can Influence Production Decisions

A well-developed appearance prototype can provide useful information for the eventual production stage.

For example, the final product may ultimately be manufactured through injection molding with:

• Molded-in surface texture
• Matte black plastic
• Painted surfaces
• A combination of molded texture and coating

The prototype allows the customer to evaluate the desired visual result before finalizing the production tooling and surface specifications.

This makes the prototype stage more than simply a temporary manufacturing step.

It can become a reference for the final production appearance standard.

From Prototype to Production

Once the electronic product design and appearance have been approved, the manufacturing strategy can be reviewed according to the expected production volume and final material requirements.

A typical development path may be:

Vacuum Casting Prototype

→

Design & Appearance Validation

→

Production Design Finalization

→

Injection Mold Development

→

First Production Samples

→

Mass Production

If the customer identifies changes during the prototype evaluation, the design can be modified before production tooling is finalized.

This helps reduce the risk of carrying unresolved appearance or assembly issues into mass production.

Manufacturing Support for Electronic Product Development

Electronic product components can require a combination of engineering and appearance considerations.

Depending on the project, manufacturing requirements may include:

• Vacuum casting
• CNC machining
• 3D printing
• Plastic prototypes
• Metal prototypes
• Surface texturing
• Sanding
• Painting
• Surface finishing
• Prototype assembly
• Injection molding
• Small-batch production

The appropriate process can be selected according to the part geometry, material, quantity, surface requirements, tolerance, and purpose of the prototype.

This allows the prototype manufacturing process to reflect the requirements of the eventual product rather than treating appearance and engineering as separate concerns.

A Small Quantity with Production-Like Appearance

Although the customer required only approximately 15 parts, the project included several requirements normally associated with finished production components.

The prototype needed:

• A controlled surface texture
• Consistent black color
• Matte appearance
• Clean casting surfaces
• Proper edge finishing
• Consistent appearance across multiple samples

By introducing the texture at the master-pattern stage and combining it with post-casting finishing and matte black coating, the resulting vacuum casting parts could provide a more realistic representation of the intended molded component.

The finished samples were then exported to the United States for product evaluation.

Vacuum Casting Parts for Electronic Product Prototypes

If your electronic product requires a small quantity of prototype parts with specific surface texture, color, gloss, or coating requirements, vacuum casting can provide a practical solution before production tooling.

YS Precision can review your:

• 3D CAD files
• Prototype quantity
• Material requirements
• Surface texture
• Color specification
• Coating requirements
• Product application

The manufacturing process can then be planned around the actual purpose of the prototype.

For appearance-sensitive electronic products, the prototype should reproduce not only the geometry, but also the visual characteristics that matter to the final product.
