Automotive Vacuum Casting Parts for Pre-Tooling Validation

10 ABS-Like Prototype Parts for an Automotive Interior Component

Before releasing an automotive plastic component for injection mold tooling, physical parts can provide an important final check between CAD design and production.

For this project, the customer was developing a medium-sized automotive interior component with multiple openings, curved surfaces, mounting areas, and integrated assembly features.

The production design was approaching the tooling stage, but the customer wanted to physically verify the component before committing to an injection mold.

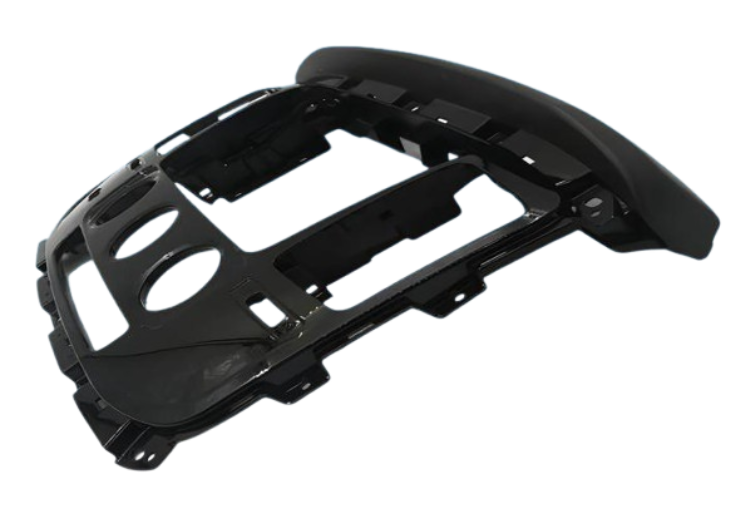

YS Precision therefore produced 10 black vacuum casting parts using an ABS-like material.

These prototypes were not intended simply for display. They were produced as pre-tooling evaluation parts, allowing the customer to check the physical geometry, fit, assembly relationships, and important interfaces before the production design was finalized.

Project Overview

Why Produce 10 Parts Before Injection Mold Tooling?

For an automotive interior component, completing the CAD design does not always mean the product is ready for tooling.

A component may need to interact with several surrounding parts. Openings must align, mounting areas need to fit correctly, and the overall geometry needs to work within the intended assembly.

These relationships can be reviewed digitally, but physical prototypes provide another level of verification.

The customer therefore ordered 10 vacuum casting prototypes before opening the production mold.

The parts could be used to check:

• Overall fit
• Assembly relationships
• Mounting locations
• Opening positions
• Clearance with mating components
• Edge alignment
• Local interference
• Installation and handling
• Final design readiness

If a problem was identified, the CAD model could still be adjusted before the injection mold was released.

Complex Integrated Geometry

The component is medium-sized, but its geometry is relatively complex.

Instead of being a simple cover or enclosure, the part integrates several different functional areas into one structure.

Multiple Openings

Several openings are incorporated into the main body.

These areas may interface with displays, controls, vents, electronic modules, or other automotive components depending on the final assembly.

For prototype validation, both the size of these openings and their relative positions are important.

Curved Automotive Surfaces

The component includes smooth three-dimensional surfaces typical of automotive interior design.

These surfaces need to transition correctly into surrounding areas of the part.

Mounting and Locating Features

Different mounting, locating, and interface features are distributed around the component.

Their position can directly influence assembly performance.

Thin and Narrow Sections

Some areas of the structure are relatively narrow compared with the overall component.

These sections require attention during casting, demolding, trimming, and handling.

Integrated Assembly Features

A number of smaller details are incorporated around the perimeter and internal areas of the component.

These features make the prototype particularly useful for physical assembly evaluation.

Why Vacuum Casting Was Suitable for This Project

The customer required only 10 pieces.

The objective was not production. The objective was to obtain enough representative plastic parts to complete the pre-tooling evaluation.

Vacuum casting provided a suitable manufacturing route for this stage.

The project could progress through:

3D CAD Design

→

Master Pattern

→

Silicone Mold

→

10 Vacuum Casting Parts

→

Physical Fit & Assembly Checks

→

Engineering Feedback

→

Design Confirmation

→

Injection Mold Tooling

The customer therefore had an opportunity to evaluate the physical product before making the larger commitment associated with production tooling.

ABS-Like Material for Automotive Prototype Parts

The prototypes were manufactured using an ABS-like polyurethane casting material.

This terminology is important because vacuum casting typically uses polyurethane resin systems formulated to simulate selected characteristics of thermoplastics such as ABS.

For this project, the ABS-like material provided characteristics suitable for prototype evaluation, including:

• Good rigidity
• Useful toughness
• Good surface reproduction
• Suitable handling strength
• Good appearance
• Suitability for assembly checks

The prototypes were produced in black, providing a more representative appearance for the intended automotive application.

The final production material can be specified separately when the project moves into injection molding.

From CAD Model to Physical Assembly

One of the main reasons for producing these prototypes was to move the evaluation from a digital environment into a physical assembly.

CAD data can confirm nominal geometry.

Physical parts can reveal how that geometry behaves when everything comes together.

For example, the customer can evaluate whether:

Openings align correctly with related components.

Mounting areas reach their intended positions.

Edges follow adjacent trim parts correctly.

Clearances are sufficient during installation.

Integrated features interfere with neighboring components.

The complete component can be assembled as intended.

This makes the prototype useful as an engineering verification tool rather than simply a representation of the CAD model.

Manufacturing the Vacuum Casting Parts

The project followed a controlled manufacturing sequence based on the purpose of the prototypes.

01 — CAD Review

The 3D model was reviewed with attention to the overall geometry, openings, undercuts, mounting areas, wall sections, and assembly-related features.

02 — Master Pattern Production

A master pattern was manufactured according to the approved design data.

03 — Master Pattern Preparation

The master was cleaned and refined before silicone mold making.

04 — Silicone Mold Making

The mold was prepared according to the component geometry, parting requirements, undercuts, and demolding considerations.

05 — Vacuum Casting

Ten black ABS-like prototype parts were produced.

06 — Trimming & Deburring

Casting gates, flash, and excess material were removed carefully.

Special attention was given to edges, openings, and assembly-related features.

07 — Prototype Inspection

The completed parts were checked according to the project requirements before delivery.

08 — Customer Validation

The prototypes were supplied to the customer for fit checks, assembly evaluation, and final pre-tooling review.

Why 10 Prototypes Instead of One?

One prototype can provide useful information, but ten parts give the customer greater flexibility during an automotive development program.

Different samples can be used for different purposes.

Assembly Trials

Parts can be installed together with mating automotive components.

Engineering Review

Engineers can evaluate mounting features, interfaces, and possible interference.

Design Evaluation

Physical parts can be compared with the intended CAD design and assembly requirements.

Internal Testing

Multiple departments or engineering teams can work with samples simultaneously.

Pre-Tooling Approval

The prototypes can support the final decision on whether the component is ready for injection mold development.

For this project, the ten parts therefore served as a small engineering validation batch, rather than simply ten copies of the same display model.

Finding Design Issues Before They Become Tooling Issues

This is where pre-tooling prototype manufacturing can provide significant value.

Consider a relatively small design change such as:

• Moving a mounting feature
• Enlarging an opening
• Changing a local edge
• Increasing a clearance
• Adjusting an interface
• Modifying a clip position

Before tooling, these changes can usually be incorporated into the CAD design.

After an injection mold has already been manufactured, the same change may require mold modification and another tooling trial.

The purpose of the prototype stage is therefore to identify as many physical design issues as practical while the design is still easier to change.

From Prototype Evaluation to Design Freeze

The vacuum casting parts supported an important transition in the development process.

The project could move through four clear stages:

Design

Complete the automotive component in CAD.

Verify

Manufacture representative physical parts and test them in the intended assembly.

Refine

Update the design if fit, interference, or interface issues are identified.

Freeze

Approve the final geometry before production tooling begins.

This gives the ten vacuum casting parts a specific engineering role within the overall product development process.

Not Every Automotive Prototype Is an Appearance Prototype

Automotive prototype requirements can vary considerably.

Some projects focus on color, texture, and cosmetic appearance.

Others focus more heavily on fit and engineering interfaces.

For this project, the primary purpose was pre-tooling design and assembly verification.

That means the most important questions were:

• Does the part fit?
• Do the openings align?
• Are the mounting features correct?
• Does it assemble with related components?
• Is there any interference?
• Is the design ready for tooling?

This distinguishes the project from a purely cosmetic automotive model.

Vacuum Casting as an Engineering Checkpoint

Vacuum casting is often described simply as a low-volume prototype manufacturing process.

For this project, its role was more specific.

It created an engineering checkpoint between CAD approval and tooling release.

The sequence was:

CAD

→ Physical Prototype

→ Assembly

→ Feedback

→ Design Freeze

→ Tooling

This allows physical information to influence the final design before production tooling begins.

Choosing the Prototype Process Based on the Validation Goal

Vacuum casting is not automatically the right process for every automotive prototype.

The manufacturing method should be selected according to what the customer needs to verify.

Important factors include:

• Part size
• Geometry
• Required quantity
• Material characteristics
• Tolerance requirements
• Assembly interfaces
• Surface requirements
• Mechanical testing requirements
• Final production process

For this project, the combination of a medium-sized plastic component, complex integrated geometry, 10-piece quantity, ABS-like material, and pre-tooling assembly requirements made vacuum casting an appropriate solution.

For other projects, CNC machining, 3D printing, prototype injection molding, or another process may be more suitable.

Automotive Vacuum Casting Before Production Tooling

This project demonstrates a practical use of automotive vacuum casting during the stage immediately before injection mold development.

The customer required:

10 Prototype Parts

• ABS-Like Material
• Black Appearance
• Medium-Sized Automotive Component
• Multiple Openings and Assembly Features
• Fit & Assembly Evaluation
• Pre-Tooling Verification

The objective was not simply to produce parts quickly.

It was to provide the customer with enough physical information to determine whether the design was ready for production tooling.

Need Automotive Prototype Parts Before Tooling?

If your automotive plastic component is approaching the tooling stage, a small batch of physical prototypes can help verify the design before the production mold is released.

Provide your 3D CAD files, required quantity, intended material, assembly requirements, mating-part information, and critical interfaces.

YS Precision can evaluate the project and determine whether vacuum casting or another prototype manufacturing process is appropriate.

The most useful prototype is not necessarily the one produced fastest—it is the one that answers the right engineering questions before production begins.
