5-Axis CNC Machining of Aluminum 6061-T6 Engine Impeller Components

Precision Manufacturing of Complex Blade Structures for Engine Applications

Manufacturing rotating components with complex blade profiles requires more than conventional CNC machining capability. The accuracy of each blade surface directly affects the performance, efficiency, and reliability of the final assembly.

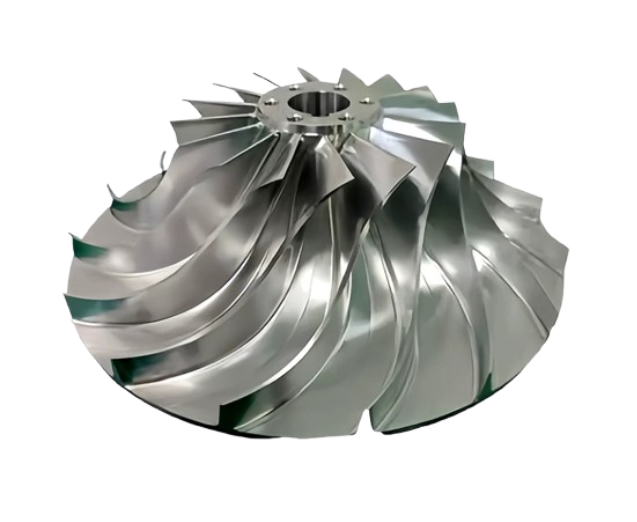

YS Precision manufactured this aluminum 6061-T6 engine impeller component for an overseas customer in the Americas. The project involved machining a large-size impeller with complex three-dimensional blade geometry using advanced 5-axis CNC machining technology.

Unlike standard mechanical components, impeller machining requires precise control of curved surfaces, blade transitions, and overall geometry to achieve consistent performance during rotation.

Project Summary

Machining Challenge: Producing Complex Blade Profiles

The main difficulty of this project was not simply achieving dimensional accuracy, but accurately reproducing the aerodynamic blade structure.

The impeller contains:

• Multiple curved blades
• Variable surface angles
• Smooth transition areas
• Complex internal flow geometry

For rotating components, inconsistent blade profiles may influence:

• Airflow performance
• Rotational balance
• Operating efficiency

Therefore, the machining process required careful planning from the beginning, including:

• 3D model analysis
• Tool path optimization
• Cutting strategy development
• Surface quality control

Why 5-Axis CNC Machining Was Essential

Impeller components are one of the typical applications where 5-axis CNC machining provides significant advantages.

Compared with conventional machining methods, 5-axis machining enables:

Continuous machining of curved blade surfaces

The cutting tool can approach the part from multiple angles, allowing smoother machining of complex blade shapes.

Reduced repositioning operations

Fewer setups help minimize positioning errors and improve consistency between different parts.

Better surface quality

Optimized tool orientation helps achieve smoother surfaces, reducing additional finishing requirements.

For this project, 5-axis CNC technology allowed YS Precision to manufacture 100 identical impeller components with stable quality.

Aluminum 6061-T6 Machining for Lightweight Engine Components

The customer selected 6061-T6 aluminum because it provides an excellent balance between:

• Lightweight structure
• Mechanical strength
• Machinability
• Corrosion resistance

During machining, our engineers considered:

• Material removal strategy
• Tool wear control
• Thin blade protection
• Deformation prevention

to maintain the required geometry throughout production.

Surface Finishing: Natural Anodizing Without Sandblasting

The customer required:

Clear anodizing with natural aluminum appearance, without sandblasting.

This finishing process provides:

• Corrosion protection
• Improved surface durability
• Original metal appearance

Because the impeller has many exposed curved surfaces, careful handling was required before and after anodizing to prevent:

• Surface scratches
• Handling marks
• Cosmetic defects

Reliable Production and Export Packaging

Although the order quantity was 100 pieces, the project required production-level consistency due to the complexity of the blade structure.

After machining and surface treatment:

Each component was:

• Individually inspected
• Separately protected
• Packed with customized foam inserts

The independent foam packaging was designed to prevent damage during international transportation and ensure the parts arrived safely at the customer's facility in the Americas.

Precision CNC Manufacturing for Complex Rotating Components

YS Precision provides CNC machining solutions for customers requiring advanced manufacturing capabilities, including:

• Engine components
• Energy equipment parts
• Aerospace structures
• Robotics components
• Industrial machinery parts

Our experience with complex geometries allows us to support projects from prototype validation to low-volume production.
