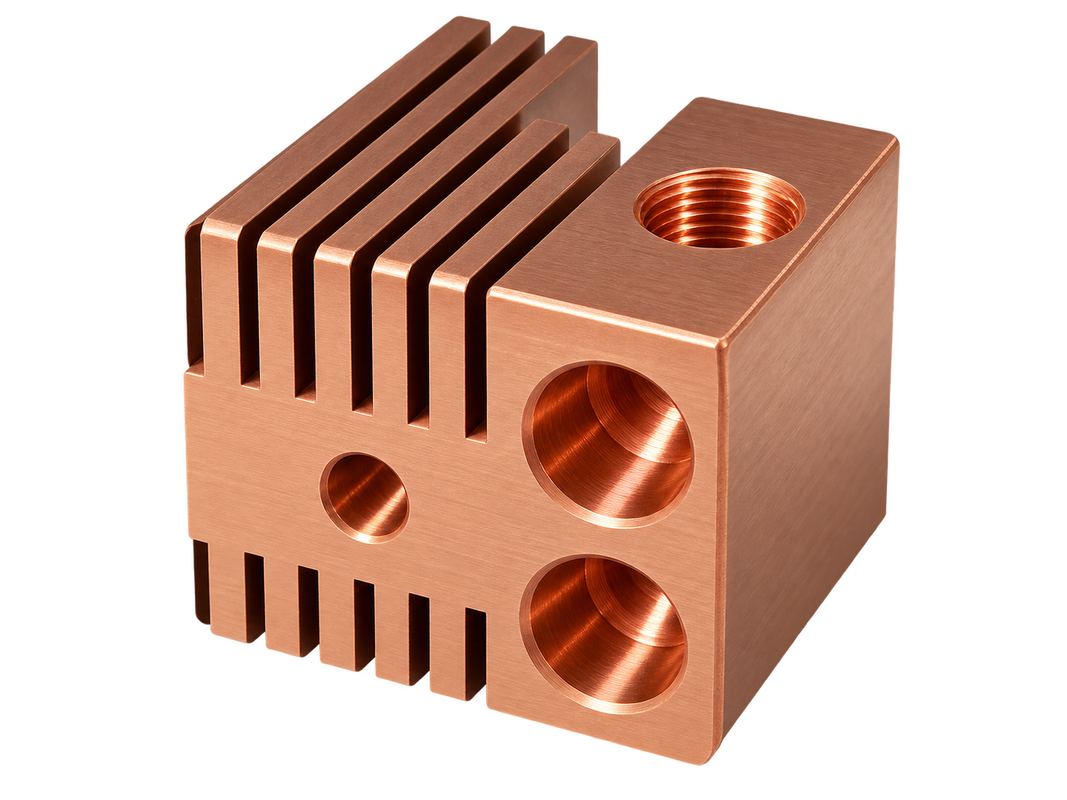

Precision CNC Machined Copper Pneumatic Components

Custom Copper Manifold Blocks Manufactured for Industrial Air Control Systems

Pneumatic systems depend on accurately manufactured components to control compressed air flow, pressure distribution, and equipment movement.

Unlike general mechanical parts, pneumatic components often require precise internal passages, accurately positioned connection holes, and reliable sealing surfaces to ensure stable operation.

YS Precision specializes in custom CNC machining of copper pneumatic components, producing customized parts according to customer engineering requirements.

This project was a copper pneumatic component manufactured for a European industrial equipment customer. The part was CNC machined from copper material and required multiple machining operations to create precise connection features and functional surfaces.

Project Overview

Manufacturing Copper Pneumatic Components from Customer Designs

Pneumatic equipment manufacturers often develop customized control structures according to their own system requirements.

For this project, the customer supplied the component design, and the part was manufactured according to the specified dimensions and functional requirements.

The manufacturing focus was placed on:

• Connection hole accuracy
• Machined surface quality
• Feature alignment
• Consistent dimensions

The goal was to produce a component that could directly integrate into the customer's pneumatic system.

CNC Machining Challenges of Copper Pneumatic Parts

Copper offers excellent electrical and thermal properties, but it also presents unique machining challenges.

Compared with aluminum, copper machining requires careful control because of:

Material Softness

Copper can deform more easily during machining if cutting conditions are not properly controlled.

Burr Formation

Connection holes and internal features require proper machining strategies to maintain clean edges.

Surface Requirements

Contact surfaces need stable machining quality for reliable assembly.

During production, our engineers optimized:

• Cutting parameters
• Tool selection
• Machining sequence
• Part holding methods

to achieve consistent results.

Precision Machining of Pneumatic Connection Features

The performance of pneumatic equipment depends heavily on accurate connections between components.

This copper part included multiple functional areas such as:

• Connection openings
• Precision holes
• Machined reference surfaces
• External mounting features

Maintaining the relationship between these features was important for:

• Correct installation
• Air passage alignment
• Equipment reliability

Copper Material Selection for Industrial Pneumatic Applications

Copper is selected for certain industrial components because of its:

• Excellent machinability
• Corrosion resistance
• Good thermal performance
• Long service life

It is commonly used in applications requiring reliable metal performance and precision machining.

YS Precision provides CNC machining solutions for:

• Copper pneumatic components
• Valve blocks
• Electrical copper parts
• Thermal components
• Industrial equipment parts

Customized CNC Machining Based on Engineering Requirements

Every pneumatic system has unique design requirements.

YS Precision supports customers with customized manufacturing based on:

• 2D engineering drawings
• 3D CAD models
• Material specifications
• Functional requirements

Our team focuses on selecting suitable machining methods to achieve the customer's final application requirements.

CNC Machining Partner for Copper Industrial Components

YS Precision manufactures customized copper parts for industries including:

• Pneumatic equipment
• Automation systems
• Semiconductor equipment
• Electrical equipment
• Precision machinery

With experience in copper, brass, aluminum, and stainless steel machining, we support customers from prototype development to small-batch production.

Contact YS Precision with your copper component drawings for a customized machining solution.
