Precision 7075 Aluminum Custom CNC Machining For Automation Equipment

Precision 7075 Aluminum Custom CNC Machining For Automation Equipment

7075 Custom CNC Machining

Precision Custom CNC Machining

0.05mm custom cnc aluminum parts

Place of Origin:

China

Brand Name:

YS Precision

Certification:

ISO9001

Model Number:

Custom CNC Machining

CONTACT US
Request A Quote
Product Details
Part Type:
Precision CNC Machined Aluminum Part
Application:
Automation Equipment
Material:
7075 Aluminum
Size:
Approx. 250 × 220 Mm
Quantity:
Approx. 50 Pcs
Manufacturing Process:
CNC Milling
Critical Accuracy:
±0.05 Mm
Export Market:
United States
Highlight:

7075 Custom CNC Machining

,

Precision Custom CNC Machining

,

0.05mm custom cnc aluminum parts

Payment & Shipping Terms
Minimum Order Quantity
Negotiable
Price
Negotiable
Packaging Details
EPE Foam Inside And Carton Outside Or EPE Foam Inside And Wooden Outside
Delivery Time
3-7 Days For Sample Order, 10-15 Days For Bulk Order After, Depend On The Part Structure And Size
Payment Terms
T/T
Supply Ability
5000 Piece/Month
Product Description

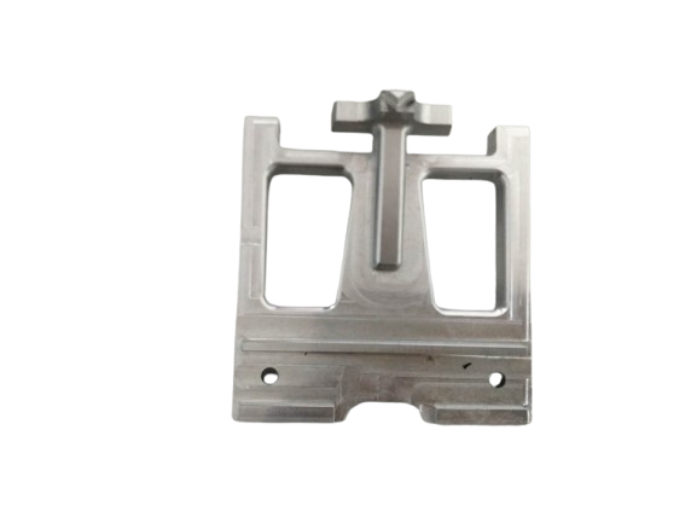

Precision CNC Machined 7075 Aluminum Part for Automation Equipment

High-Strength Aluminum CNC Machining for Precision Industrial Components

This project involved manufacturing a precision CNC machined 7075 aluminum part for an automation equipment application.

The component was designed as a high-strength mechanical element requiring stable positioning, accurate mounting features, and reliable performance during repeated equipment operation.

Manufactured according to customer-provided 3D CAD models and 2D drawings, the part features:

  • Multiple machined surfaces
  • Precision mounting locations
  • Functional reference areas
  • Accurate hole features

Made from 7075 aluminum, the component provides excellent rigidity and dimensional stability compared with standard aluminum alloys.

The finished part has an approximate size of 250 × 220 mm, with critical hole accuracy controlled within ±0.05 mm.

Approximately 50 pieces were produced and shipped to the United States for integration into an automation system.






Project Overview

Item Details
Part Type Precision CNC Machined Aluminum Part
Application Automation Equipment
Material 7075 Aluminum
Size Approx. 250 × 220 mm
Quantity Approx. 50 pcs
Manufacturing Process CNC Milling
Critical Accuracy ±0.05 mm
Export Market United States






7075 Aluminum CNC Machining for High-Performance Mechanical Parts

7075 aluminum was selected for this project because the component required higher strength and rigidity than conventional aluminum parts.

Compared with 6061 aluminum, 7075 aluminum offers:

  • Higher tensile strength
  • Greater stiffness
  • Better load-bearing capability
  • Excellent strength-to-weight performance

These characteristics make 7075 aluminum suitable for precision mechanical components used in:

  • Automation equipment
  • Industrial machinery
  • Motion systems
  • Customized equipment modules

During CNC machining, the process was optimized to maintain dimensional stability while achieving the required functional features.






Precision CNC Machining of Functional Aluminum Features

The main challenge of this part was maintaining the relationship between different machined areas.

The component contains:

  • Precision holes
  • Mounting interfaces
  • Reference surfaces
  • Functional locating features

For automation equipment, these features are critical because they determine:

  • Assembly accuracy
  • Module alignment
  • Repeatable machine operation

The machining process focused on:

  • Stable workholding
  • Proper machining sequence
  • Controlled cutting parameters
  • Final dimensional verification






Accurate Hole Machining for Equipment Integration

The critical hole accuracy requirement was:

±0.05 mm

Rather than focusing only on individual hole sizes, inspection considered the complete functional relationship between:

  • Hole positions
  • Machined surfaces
  • Mounting locations

This ensures the finished part can be integrated correctly into the customer's automation system.






Custom 7075 Aluminum CNC Machining Based on Customer Drawings

This project was produced according to customer engineering data, including:

  • 3D CAD files
  • 2D technical drawings
  • Material specifications
  • Functional requirements

Before production, the engineering team reviewed:

  • Machining accessibility
  • Tool selection
  • Clamping method
  • Critical feature requirements

This helps reduce manufacturing risks and ensures the final part matches the original equipment design.






Small Batch Production of Precision Aluminum Components

Automation equipment manufacturers often require customized mechanical parts in limited quantities.

Unlike standard aluminum products, these parts require:

  • Flexible CNC machining capability
  • Engineering support
  • Consistent quality control
  • Stable repeatability

For this project, approximately 50 pieces were manufactured with production-level consistency for the customer's equipment assembly.






Quality Control for Precision CNC Machined Aluminum Parts

Quality inspection focused on both dimensional accuracy and functional performance.

The inspection process included:

  • Material verification
  • Critical hole measurement
  • Dimensional inspection
  • Surface condition checking
  • Final quality confirmation

Finished parts were carefully packaged to protect the machined surfaces during international shipment.






Custom CNC Machining for Automation Equipment Manufacturers

Precision automation components require a combination of:

  • High-quality aluminum machining
  • Accurate feature control
  • Engineering process planning
  • Repeatable production capability

This 7075 aluminum CNC machining project demonstrates the ability to manufacture customized mechanical parts where strength, accuracy, and reliability are essential.
