CNC Machined Aluminum Component for Automation Equipment

Precision Aluminum CNC Machining for Small Batch Industrial Components

Small mechanical parts used in automation equipment often require consistent dimensions, reliable assembly performance, and stable production quality.

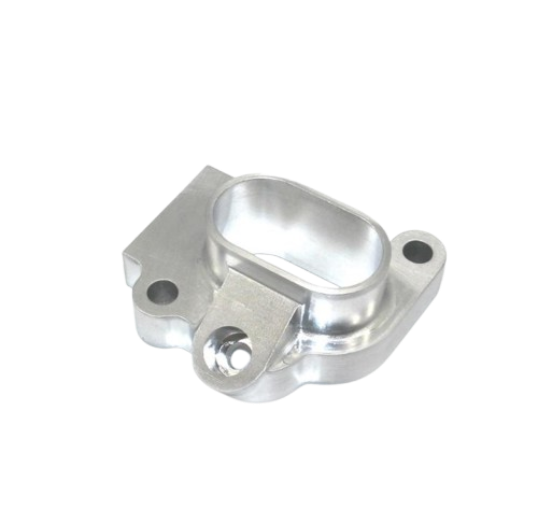

This project involved manufacturing a custom CNC machined aluminum component for an automation equipment application.

The part features a compact functional design with:

• Precision mounting holes
• Curved internal pocket features
• Machined reference surfaces
• Smooth edge transitions

With an approximate size of 80 × 50 mm, the component was produced according to the customer's engineering requirements.

After CNC machining, the parts received clear anodizing (natural anodizing) to improve surface protection while maintaining a clean aluminum appearance.

A total of approximately 750 pieces were manufactured and exported to the United States for integration into automation equipment.

Project Overview

Precision CNC Machining for Small Aluminum Components

Although this component is relatively small, its functional design requires careful machining control.

The part includes:

• Mounting interfaces
• Internal pocket features
• Curved machined surfaces
• Assembly reference areas

For automation equipment, these features must maintain consistent positioning because they directly affect how the component integrates with other mechanical assemblies.

The CNC machining process was optimized to achieve:

• Stable dimensions
• Repeatable production results
• Consistent surface quality
• Reliable assembly performance

CNC Machined Aluminum Parts with Consistent Anodized Finish

Aluminum is widely used in automation equipment because it provides:

• Lightweight structure
• Good machinability
• Suitable mechanical performance
• Excellent anodizing capability

For this project, the customer selected:

CNC machining + clear anodizing

The natural anodized finish provides:

• Corrosion resistance
• Improved surface durability
• Clean industrial appearance

For a batch of 750 pieces, maintaining consistent anodized appearance was an important production consideration.

Process control focused on reducing variations in:

• Machined surface condition
• Edge quality
• Surface appearance after anodizing

Batch CNC Manufacturing for Automation Equipment Parts

This project was not only about producing a prototype part, but about achieving stable repeat production.

For a quantity of approximately 750 pieces, manufacturing focused on:

• Consistent CNC machining parameters
• Stable production setup
• Repeatable inspection standards
• Reliable delivery capability

Small and medium-sized automation components often require this type of production capability because equipment manufacturers need customized parts without committing to large-volume tooling.

Custom Aluminum Machining Based on Customer Design Data

The component was manufactured according to customer-provided engineering requirements.

The production process considered:

• Part geometry
• Functional interfaces
• Material requirements
• Surface finishing specifications

Before machining, the engineering team reviewed the part structure to determine suitable machining methods and ensure stable production.

Quality Control for CNC Machined Aluminum Components

For automation equipment parts, quality depends on both dimensional consistency and appearance.

Inspection included:

• Material verification
• Dimensional measurement
• Feature inspection
• Surface appearance checking
• Final quality inspection

After anodizing, finished parts were carefully packaged to prevent scratches or surface damage during international transportation.

Custom CNC Machining Services for Automation Equipment Manufacturers

Automation equipment manufacturers often require customized aluminum components that cannot be purchased as standard parts.

YS Precision provides:

• CNC machined aluminum parts
• Precision mechanical components
• Automation equipment components
• Small batch CNC production
• Custom anodizing and surface finishing

This type of project reflects the manufacturing capability required for companies looking for a reliable CNC machining supplier for customized industrial components.
