CNC Machined Copper Heat Sink Components for Server and Semiconductor Applications

Custom Copper Cooling Plates Manufactured for High-Performance Thermal Management Systems

As computing power continues to increase, thermal management has become a critical factor in maintaining the performance and reliability of servers, semiconductor equipment, and electronic systems.

Copper heat sinks are widely used in high-performance cooling applications because of copper's excellent thermal conductivity and heat transfer capability.

YS Precision manufactures custom CNC machined copper heat sink components for customers requiring customized cooling structures, precision mounting features, and reliable thermal performance.

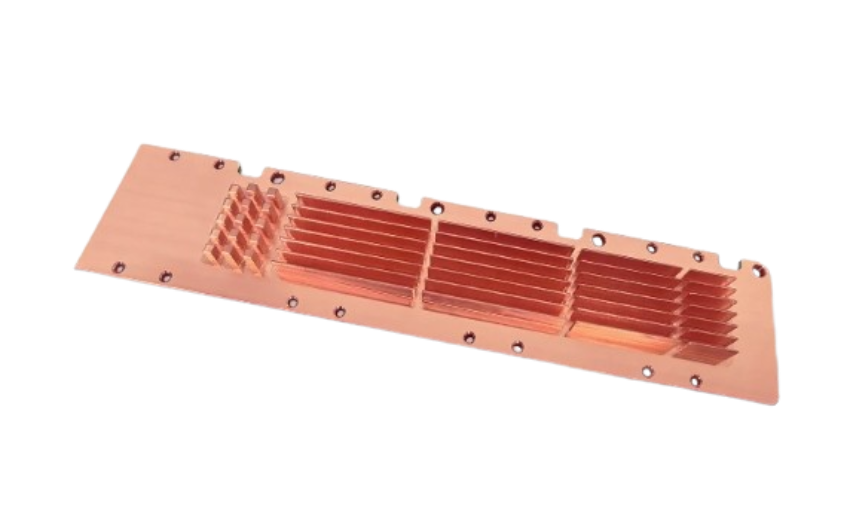

This project was a customized copper cooling plate developed for a server CPU cooling application. The component was CNC machined from copper material and featured multiple precision cooling fins designed to increase heat dissipation efficiency.

Project Overview

Custom Copper Cooling Components Based on Thermal Design Requirements

Unlike standard mechanical parts, heat sink components are closely related to thermal performance.

The internal structure, fin arrangement, and contact surface are designed according to the customer's cooling requirements.

For this project, the customer provided the product design, and YS Precision manufactured the copper component according to the specified structure and dimensions.

The machining process focused on:

• Maintaining fin geometry
• Protecting the heat transfer surface
• Controlling mounting features
• Ensuring dimensional consistency

CNC Machining Challenges of Copper Heat Sink Structures

Copper provides excellent thermal conductivity, but machining copper requires different techniques compared with aluminum and steel.

The main challenges include:

Material Characteristics

Copper is relatively soft and can generate burrs during machining if cutting conditions are not properly controlled.

Fine Fin Machining

The cooling fins require careful machining to maintain:

• Consistent spacing
• Clean edges
• Stable geometry

Large Thin Plate Structure

With a size of approximately 430 × 120 mm, controlling flatness and avoiding deformation during machining are important for reliable contact with the heat source.

Precision Machining of Cooling Fins and Contact Surfaces

The performance of a heat sink depends not only on the material, but also on the quality of its machined surfaces.

During production, attention was given to:

• Cooling fin accuracy
• Contact surface condition
• Mounting hole positions
• Edge finishing

The machining process was optimized to achieve a balance between:

• Thermal performance
• Structural stability
• Manufacturing consistency

Copper CNC Machining Capability for Thermal Applications

Copper is commonly selected for thermal components because of:

• Excellent heat conductivity
• Fast heat transfer capability
• Long-term temperature stability

YS Precision provides CNC machining solutions for copper components used in:

• Server cooling systems
• Semiconductor equipment
• Power electronics
• Energy devices
• High-performance electronic products

Manufacturing Process for Customized Copper Heat Sinks

The production workflow included:

Design Review

Analyze customer drawings and cooling structure requirements.

CNC Machining

Produce the copper component with controlled machining parameters.

Finishing

Remove machining burrs and prepare the surface.

Inspection

Verify key dimensions and functional features before delivery.

Custom Copper CNC Machining Partner for Thermal Management Components

YS Precision supports global customers requiring customized copper components for demanding applications.

Our capabilities include machining:

• Copper
• Aluminum alloys
• Stainless steel
• Engineering plastics

From prototype quantities to small-batch manufacturing, we help customers develop reliable thermal and precision components.

Send your copper heat sink drawings and let our engineers provide a customized machining solution.
