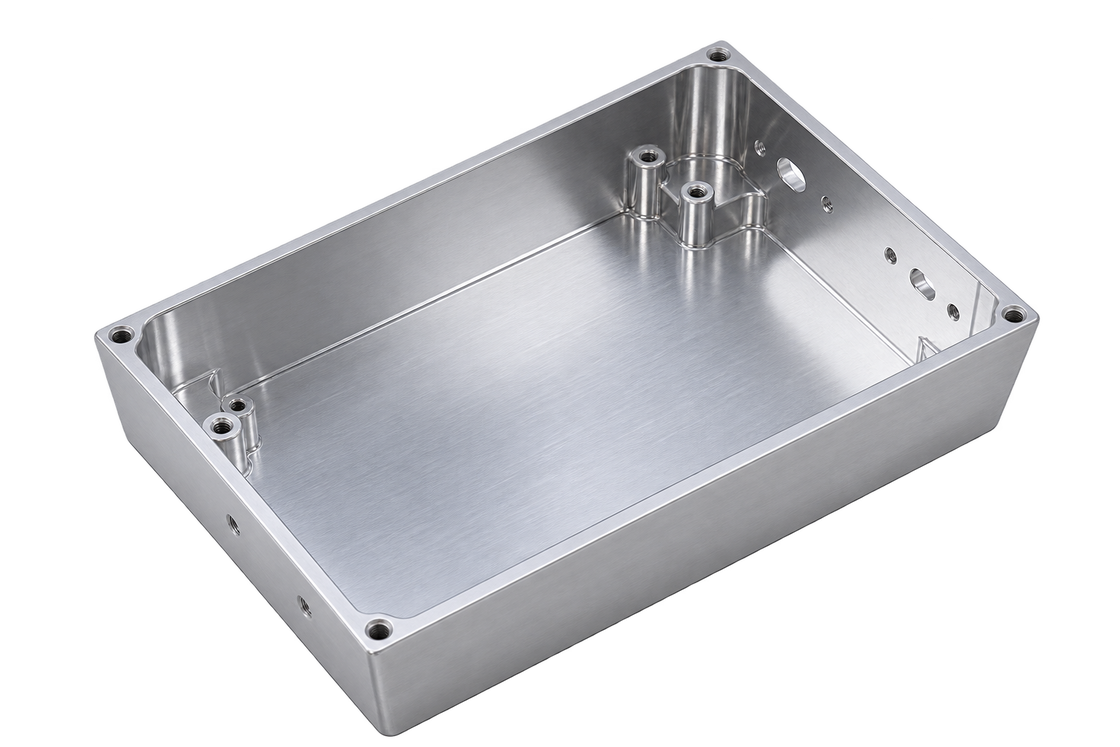

CNC Machined 6061-T6 Aluminum Enclosure for Industrial Electronic Equipment

Custom Aluminum Housing with Precision Internal Cavity Machining

Electronic devices used in industrial environments often require customized metal housings that provide mechanical protection, accurate component installation, and long-term durability.

This project involved manufacturing a custom CNC machined aluminum enclosure for an industrial electronic module.

Unlike standard sheet metal enclosures or off-the-shelf aluminum boxes, this housing was machined from solid 6061-T6 aluminum to achieve customized internal features and precise assembly interfaces.

The enclosure includes:

• Internal cavity for electronic components
• Mounting areas for assembly
• Precision machined edges
• Customized structural features

Manufactured according to customer-provided 2D drawings and 3D CAD data, the housing has an approximate size of 200 × 120 mm with critical dimensional control within ±0.05 mm.

After CNC machining, the parts received clear anodizing (natural anodizing) to improve surface protection and provide a consistent aluminum finish.

Approximately 120 pieces were produced and exported to the United States.

Project Overview

CNC Aluminum Enclosure Machining for Custom Applications

CNC machined aluminum housings are often selected when standard enclosures cannot meet the design requirements of specialized products.

Compared with sheet metal fabrication or plastic housings, CNC aluminum enclosures provide:

• Higher structural rigidity
• Better dimensional stability
• Customized internal geometry
• Precise mounting features

For this project, CNC machining allowed the housing design to integrate directly with the customer's internal electronic components.

The manufacturing focus included:

• Cavity dimensions
• Mounting feature accuracy
• Surface quality
• Assembly compatibility

Precision Internal Cavity Machining for Aluminum Housings

The key feature of this enclosure is the internal cavity structure.

The internal space needed to provide:

• Sufficient component clearance
• Accurate module positioning
• Reliable assembly conditions

During machining, attention was given to:

• Pocket depth control
• Internal wall consistency
• Corner machining quality
• Dimensional repeatability

This helps ensure the electronic module fits correctly inside the finished housing.

6061-T6 Aluminum CNC Machining and Clear Anodizing

6061-T6 aluminum is widely used for precision housings because it offers a balanced combination of:

• Excellent machinability
• Lightweight construction
• Good mechanical properties
• Reliable anodizing performance

The selected finish was:

Clear Anodizing (Natural Anodizing)

This provides:

• Corrosion resistance
• Surface protection
• Clean industrial appearance

For a batch of 120 pieces, consistent anodizing appearance was also an important quality requirement.

Custom Aluminum Housing Manufacturing Based on CAD Drawings

This enclosure was manufactured based on customer engineering information, including:

• 3D CAD model
• 2D technical drawings
• Material requirements
• Assembly specifications

Before production, the machining process was reviewed according to:

• Internal feature accessibility
• Tool selection
• Machining sequence
• Critical dimensions

This ensures the final aluminum housing matches the customer's product design.

Small Batch CNC Production for Electronic Enclosures

Many industrial electronic products require customized housings in quantities that are too specific for standard enclosure suppliers.

This project required a production quantity of 120 pieces, combining:

• Flexible CNC machining
• Stable production control
• Consistent anodizing quality
• Reliable inspection process

Small batch CNC manufacturing provides a practical solution for specialized electronic products and industrial devices.

Quality Control for CNC Machined Aluminum Housings

For aluminum enclosures, quality includes both functional accuracy and visual appearance.

Inspection includes:

• Material verification
• Dimensional measurement
• Internal cavity inspection
• Mounting feature checking
• Surface finish inspection

The finished housings were carefully packaged to prevent anodized surface damage during shipment.

Custom CNC Aluminum Enclosure Manufacturing Service

YS Precision provides custom CNC machining solutions for:

• Aluminum enclosures
• Electronic equipment housings
• Precision mechanical parts
• Industrial product components

With CNC machining, surface finishing, and small batch production capability, YS Precision supports companies developing customized electronic and industrial products.
