CNC Machined 6061-T6 Aluminum Optical Housing for Precision Equipment

Custom Aluminum Enclosure Manufacturing for Optical and Inspection Systems

Optical and inspection equipment requires mechanical housings with accurate mounting interfaces, stable dimensions, and reliable structural support for sensitive internal components.

This project involved manufacturing a custom CNC machined 6061-T6 aluminum optical housing based on the customer's 2D drawings and 3D CAD model.

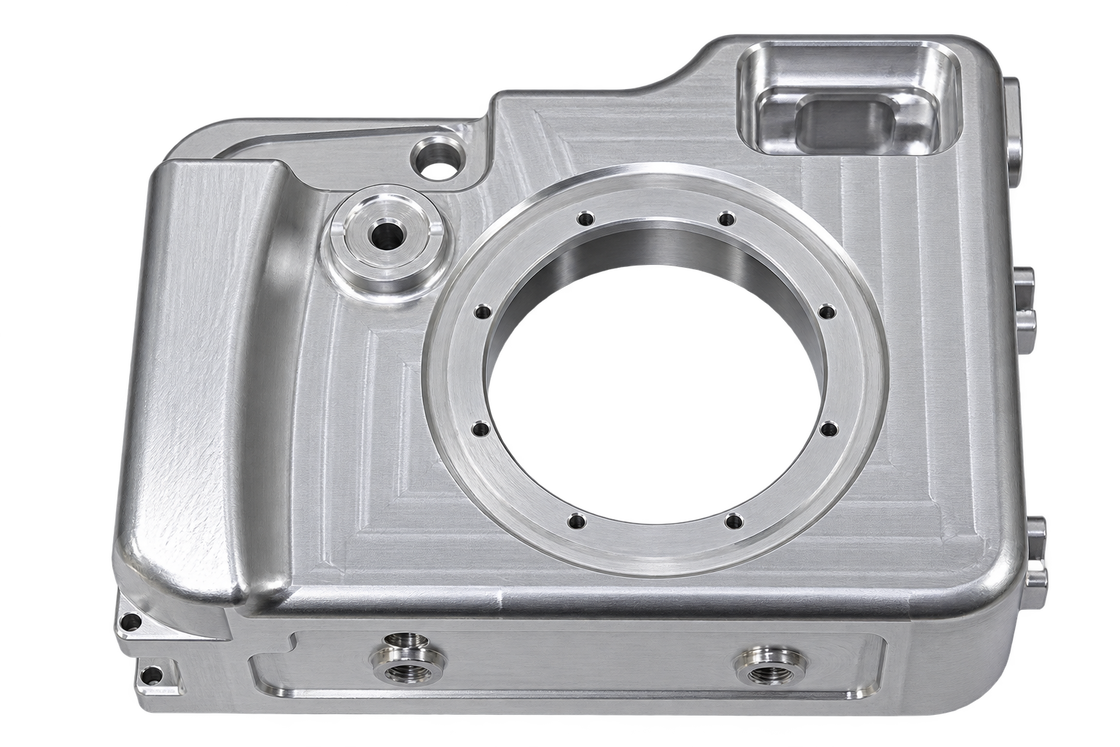

The housing features a large circular mounting interface, precision locating holes, and customized machined surfaces designed for integration with optical equipment assemblies.

Manufactured from 6061-T6 aluminum, the part achieved critical hole accuracy within ±0.05 mm.

The finished housing has an approximate size of 340 × 300 mm. Around 45 pieces were produced and exported to Israel within a two-week production schedule, including material preparation, CNC machining, inspection, and clear anodizing.

Project Overview

Precision CNC Machining for Optical Equipment Housings

Optical equipment housings are different from standard protective covers.

The mechanical structure must provide:

• Stable mounting references
• Accurate component positioning
• Consistent assembly interfaces
• Long-term dimensional stability

For this housing, CNC machining was selected because the design required customized features that are difficult to achieve with standard fabrication methods.

The machining process created:

• Precision circular openings
• Mounting interfaces
• Functional locating surfaces
• Integrated structural features

These details help maintain the correct relationship between the housing and internal optical components.

6061-T6 Aluminum Machining for Optical Applications

6061-T6 aluminum is widely used for precision equipment parts because it provides a good balance of:

• Machining performance
• Mechanical strength
• Lightweight construction
• Surface finishing capability

For optical and inspection equipment, material stability is important because dimensional changes can influence the positioning of internal components.

The CNC machining process was controlled to maintain:

• Hole location accuracy
• Flatness of mounting areas
• Consistent geometry
• Reliable assembly performance

Precision Circular Interface Machining for Optical Alignment

The most important feature of this housing is the central circular mounting structure.

The circular interface and surrounding precision holes provide a controlled mounting reference for equipment assembly.

During manufacturing, attention was given to:

• Circular feature accuracy
• Hole positioning
• Relationship between machined surfaces
• Final dimensional consistency

For optical systems, these mechanical interfaces directly influence the repeatability of component installation.

Clear Anodizing Finish for CNC Aluminum Optical Housings

The customer selected:

Clear Anodizing (Natural Anodizing)

without sand blasting.

This finishing method maintains the natural CNC-machined aluminum appearance while providing:

• Corrosion resistance
• Surface protection
• Clean industrial aesthetics

Because optical equipment often requires a professional appearance, anodizing consistency was controlled across the production batch.

Low Volume CNC Production with Fast Turnaround

This project required approximately 45 pieces with completion within two weeks.

The manufacturing process included:

• Aluminum material preparation
• CNC machining
• Dimensional inspection
• Clear anodizing
• Final quality checking

Fast turnaround for precision aluminum housings requires coordination between machining and surface finishing processes.

This type of low-volume CNC manufacturing is commonly required for:

• Optical equipment development
• Inspection systems
• Specialized industrial instruments

Custom Optical Housing Manufacturing Based on CAD Data

The housing was produced according to customer-provided:

• 3D CAD model
• 2D engineering drawings
• Material requirements
• Surface finishing specifications

Manufacturing considerations included:

• Machining accessibility
• Tool selection
• Feature sequence
• Critical dimension control

This ensures the finished aluminum housing matches the customer's optical equipment design.

Quality Control for Precision Aluminum Housings

For optical equipment parts, both dimensional accuracy and surface quality are important.

Inspection includes:

• Material verification
• Critical hole measurement
• Dimensional inspection
• Surface appearance checking
• Final shipment inspection

After anodizing, finished housings were carefully packaged to prevent surface damage during international transportation.

Custom CNC Machined Optical Housings for Advanced Equipment

Optical equipment manufacturers often require customized mechanical housings rather than standard enclosure products.

YS Precision supports the production of:

• CNC machined optical housings
• Precision aluminum enclosures
• Inspection equipment components
• Custom low-volume CNC parts

From aluminum machining to surface finishing, the focus is on producing stable and accurate mechanical parts based on customer engineering requirements.
