CNC Machined Aluminum Components for Fluid Control Equipment

Custom 7075 Aluminum Parts with Precision Interfaces for Fluid System Applications

Fluid control equipment often contains customized components that combine structural support, connection interfaces, and internal machining features into a single part.

Unlike standard mechanical parts, these components must be manufactured according to the specific design of the equipment system. The position of each port, mounting hole, and functional surface directly affects final assembly and system performance.

YS Precision manufactures custom CNC machined aluminum components for fluid control equipment, supporting overseas customers with complex parts produced from their own engineering designs.

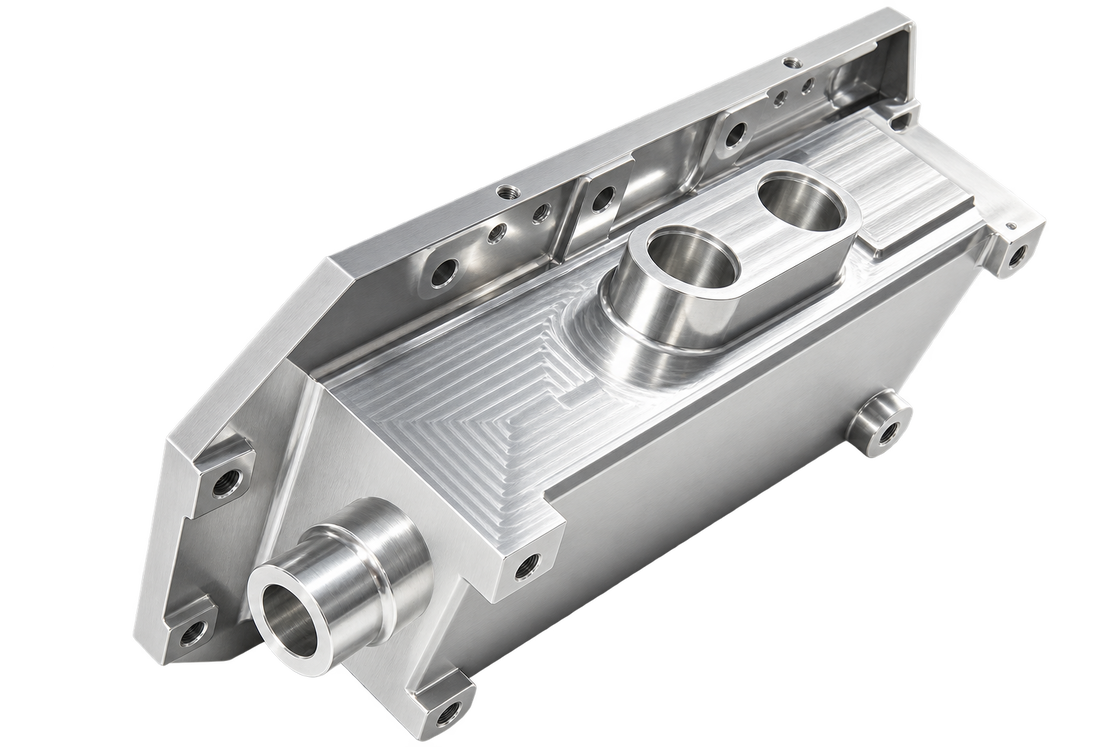

This project was a large aluminum component developed for a fluid control application. The part was manufactured from 7075 aluminum alloy, requiring multi-side machining, accurate connection features, and natural anodizing after machining.

Project Information

One-Piece Machining for Fluid Equipment Structures

Many fluid control components are designed as integrated structures rather than multiple assembled pieces.

This component combines:

• Connection interfaces
• Mounting features
• Internal cavities
• Precision locating surfaces
• Structural support areas

Machining the component from a single aluminum block helps maintain:

• Better structural integrity
• More consistent positioning between features
• Reduced assembly variation
• Improved reliability during equipment integration

Precision Machining of Multiple Connection Interfaces

For fluid-related equipment, connection areas are often the most critical features.

The challenge of this project was not only machining individual dimensions, but maintaining the relationship between different interfaces.

During production, attention was given to:

• Port position accuracy
• Hole alignment
• Reference surface control
• Machining sequence stability

The critical connection dimensions were controlled within: ±0.05 mm

to ensure proper fitting with the customer's equipment assembly.

Machining Large 7075 Aluminum Components

7075 aluminum was selected because of its excellent mechanical properties, including:

• High strength
• Good fatigue resistance
• Lightweight characteristics

However, machining 7075 aluminum requires careful process control due to its higher hardness compared with common aluminum alloys.

Production considerations included:

• Tool selection
• Cutting strategy
• Workholding stability
• Surface protection

These factors helped maintain consistent quality throughout machining.

Natural Anodizing Without Sandblasting

The customer required a natural anodized finish while keeping the original machined surface appearance.

Unlike sandblasted anodizing, direct anodizing after machining maintains the aluminum surface characteristics and helps avoid unnecessary changes on functional areas.

The finishing process provided:

• Corrosion resistance
• Surface protection
• Clean industrial appearance

This finish is commonly used for precision equipment components where both function and appearance are important.

Manufacturing Based on Customer Engineering Requirements

Each fluid control system may have unique structural requirements.

YS Precision works with customers who provide:

• Part drawings
• 3D design data
• Material specifications
• Surface requirements

Our manufacturing team focuses on converting these designs into practical production solutions, considering machining methods, finishing requirements, and final application needs.

Custom CNC Machining Solutions for Fluid System Manufacturers

YS Precision produces customized aluminum components for:

• Fluid control equipment
• Industrial machinery
• Automation systems
• Semiconductor equipment
• Testing equipment
• Precision instruments

With experience in complex aluminum machining and surface finishing, we support global customers requiring reliable customized components.

Contact YS Precision with your component design for a customized machining solution.
