Plastic CNC Machining for Long Polycarbonate Telecom Parts

Long plastic components bring a different set of machining concerns from compact housings and brackets.

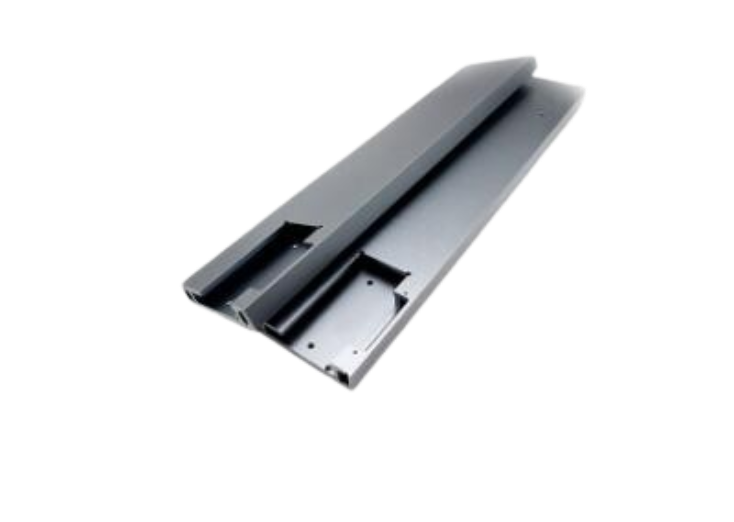

This 420 × 100 mm polycarbonate component was CNC machined for telecommunication equipment, with approximately 250 sets produced for shipment to the United States.

The part has a long, narrow profile with continuous channels, raised walls, recessed sections, local cutouts and mounting features. Much of the geometry extends along the length of the component rather than being concentrated in one area.

For this type of plastic CNC machining, the main challenge is not highly complex geometry. It is maintaining the intended relationship between long features while controlling the behavior of the PC workpiece during machining and across repeat production.

Project Details

A Long Part Changes the Machining Strategy

At approximately 420 mm long and 100 mm wide, this component has a much higher length-to-width ratio than a typical CNC machined plastic housing.

Several walls and channels continue over a substantial portion of the part. Once material is removed to form these features, the remaining cross-section also changes considerably from the original PC stock.

This affects how the part is held and machined.

A fixture needs to provide enough support along the workpiece without forcing the plastic into a temporary position. Excessive clamping can make a part appear stable during machining but influence its geometry after it is released.

For CNC machining long plastic parts, support position and machining sequence therefore need to be considered together.

Continuous Channels Are the Key Feature

The most distinctive geometry on this component is the series of long channels and raised profiles running along the body.

These features may provide clearance, separation, locating or support within the telecom equipment assembly; their exact function is defined by the customer's design.

From a manufacturing standpoint, their length is what matters.

A short pocket can often be evaluated locally. A channel extending several hundred millimeters may need to maintain its intended width, position or relationship with adjacent walls over a much longer distance.

Tool selection also follows the local geometry. Open channels allow larger cutters, while narrower areas and local details require smaller tools.

Where these features are functionally important, the drawing can specify the relevant channel dimensions, straightness or positional requirements.

Machining Polycarbonate Without Treating It Like Aluminum

Polycarbonate can be CNC machined effectively, but it does not behave like aluminum or steel.

Clamping pressure, cutting heat and material removal all need to be considered, particularly on a long component with reduced sections after machining.

The machining process should control unnecessary heat around edges and thinner walls while avoiding excessive stress in the workpiece.

Material removal sequence can also matter when long grooves are machined from a relatively solid piece of PC stock.

For this component, polycarbonate is used as a functional engineering plastic rather than for optical transparency. The priority is therefore dimensional stability, clean features and reliable assembly geometry.

This type of requirement is commonly associated with polycarbonate CNC machining, PC CNC machining and custom CNC machined plastic parts.

Focus on the Dimensions That Control Assembly

A long plastic component does not automatically require tight tolerances on every surface.

For telecom equipment, the important dimensions are usually those connected to assembly and function.

Depending on the customer's design, these may include:

• channel width and position;
• spacing between parallel walls;
• mounting-hole locations;
• locating or mating surfaces;
• overall straightness or flatness;
• distances between functional features.

These requirements are best identified on the 2D technical drawing.

This allows machining and inspection to focus on the dimensions that affect the equipment rather than applying unnecessarily restrictive tolerances across the entire component.

From One Good Part to 250 Consistent Sets

The production quantity for this project was approximately 250 sets.

At that volume, the question is no longer only whether the geometry can be machined. The process also needs to reproduce the required features consistently throughout the order.

Fixture location, machining sequence and inspection of functional dimensions all become part of maintaining repeatability.

This is particularly relevant for a 420 mm component because mounting areas and functional channels are distributed across a relatively long distance.

For this reason, the project is better viewed as low-volume plastic CNC production rather than a one-off prototype job.

Plastic CNC Machining for Telecommunication Equipment

YS Precision provides custom plastic CNC machining services for telecommunication, electronic and industrial equipment components based on customer 3D CAD models and 2D technical drawings.

Engineering plastics available for CNC machining include:

PC / Polycarbonate, ABS, POM / Delrin, Nylon, PMMA, PEEK, PEI and PTFE.

Parts can range from compact housings and internal supports to long structural components, covers, mounting parts and other custom plastic components.

For long parts, our manufacturing review considers the complete geometry—part length, support, continuous channels, wall structure and the mounting or mating features identified as critical on the drawing.

Request a Quote for Long CNC Machined Plastic Parts

If you are sourcing plastic CNC machining services, polycarbonate CNC machining or custom long plastic parts for telecommunication equipment, send us your drawings for manufacturing review.

For quotation, please provide:

3D CAD + 2D Drawing + Material Grade + Quantity + Critical Tolerances + Surface Requirements

For long components, please identify any critical requirements for straightness, flatness, channel dimensions, mounting positions or mating surfaces.

YS Precision supports custom CNC machined plastic parts and low-volume plastic CNC production for overseas engineering and purchasing teams.
