ABS CNC Machining for Irregular Medical Equipment Exterior Covers

Medical equipment does not always fit inside a simple box-shaped enclosure. Some products use tall, sculpted exterior covers with recessed working areas, changing surface angles and deep three-dimensional profiles.

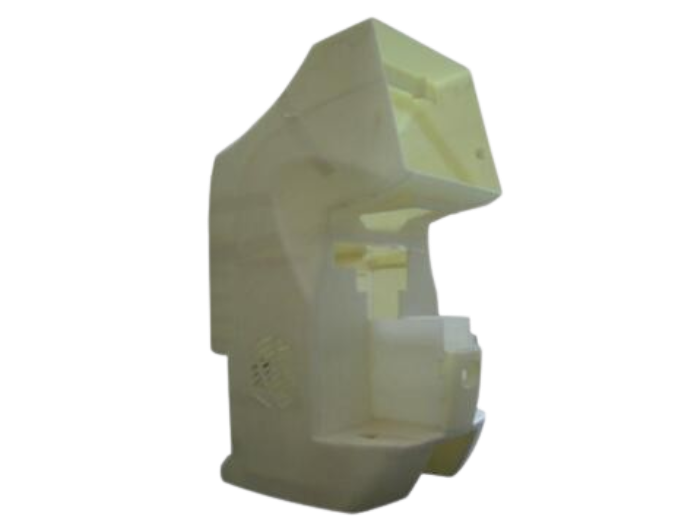

This ABS medical equipment cover is a good example. It was CNC machined from customer-supplied 3D CAD data and technical drawings, then fitted with the related parts, sanded and painted to achieve the required exterior finish.

What stands out about this part is its overall form. Unlike a flat panel or conventional rectangular housing, the geometry changes considerably from top to bottom and from one side to another. Machining access, workpiece support and the condition of the exterior surface all need to be considered before the part moves into finishing.

Project Details

Not Every Plastic Housing Is a Box

The shape is what makes this cover different.

Its upper section projects forward, the center opens into a deep recessed area, and the exterior moves through a series of sloped and curved surfaces before reaching the lower section.

That geometry changes the machining approach.

A simple enclosure may allow most areas to be reached from a few straightforward machining directions. An irregular exterior cover can require different setups so that the required surfaces remain accessible while the ABS workpiece stays properly supported.

The machining plan therefore starts with the complete 3D form—not simply a list of holes, pockets and overall dimensions.

Deep Recesses Change the Machining Plan

The large recessed area creates another practical consideration.

Features inside deeper areas are less accessible than those on an open surface. Tool reach, machining direction and workholding all need to be considered.

The projecting upper structure also changes access to nearby surfaces.

With CNC machining of large plastic parts, the order of operations matters. Removing too much material from one area too early can reduce the support available for later machining.

A suitable sequence helps maintain enough stability in the ABS workpiece while the remaining geometry is produced.

The aim is straightforward: reproduce the customer's 3D design without creating unnecessary machining problems along the way.

The Customer's CAD Defines the Housing

This is not a standard plastic enclosure modified with a few custom cutouts.

The complete exterior form comes from the customer's product design.

The 3D CAD model defines the recessed area, projecting sections, curved transitions and changes in surface direction, while the technical drawing identifies critical dimensions, tolerances and other requirements where needed.

This is especially relevant for custom ABS housing machining. A non-standard enclosure with complex three-dimensional geometry cannot be properly defined by length, width and height alone.

Where related components need to fit the housing, their CAD data can also provide useful context during manufacturing review.

Machining ABS Without Treating It Like Aluminum

ABS machines well, which makes it useful for prototype and low-volume equipment housings. But the machining approach still needs to suit the material.

Plastic responds differently from metal to cutting forces, heat and workholding.

On a larger housing, the amount of material removed and the sequence in which different areas are machined can influence the stability of the remaining structure. Tool condition and cutting parameters also affect the surface that will later be prepared for painting.

For a CNC machined ABS enclosure, dimensional accuracy is only one part of the result. The component also needs to leave the machine in a practical condition for fitting and finishing.

The CNC Surface Is Only an Intermediate Surface

This matters particularly on an exterior medical equipment cover.

The surface coming directly from the CNC machine is not necessarily the surface the customer will eventually see.

Tool paths and local machining transitions may remain visible across the ABS. At this stage, that is acceptable because the cover still needs surface preparation.

After machining and the required fitting work, the exterior is sanded before painting.

An irregular housing requires more careful manual finishing than a flat panel. Curved transitions, recessed areas, corners and changing surface directions all need to be worked without losing the intended form of the product.

Remove Machining Marks, Not the Designed Shape

Sanding creates a balance that is easy to overlook.

The operator needs to remove unwanted machining marks and prepare the surface for paint, but excessive manual work can soften edges, alter transitions or change local geometry.

That matters on a sculpted exterior cover where the surfaces are part of the customer's industrial design.

The objective can be summarized simply:

Remove evidence of machining while preserving the designed shape.

Once the surface is properly prepared, the ABS housing can be painted according to the customer's color and appearance requirements.

A consistent painted finish depends heavily on the condition of the plastic underneath it.

Related Components Still Need to Fit

Although the irregular geometry is the main feature of this project, the exterior cover still needs to work with the related parts of the medical equipment.

Relevant interfaces can be checked before final painting so that obvious fit problems are not discovered after the cosmetic work has been completed.

The manufacturing route therefore becomes:

3D CAD Review → Machining Strategy → ABS CNC Machining → Fit Check → Sanding → Painting

Here, fitting is part of the manufacturing sequence rather than the main story of the page.

That distinction helps keep this project focused on what makes it unusual: turning a large, non-standard 3D ABS design into a finished exterior housing.

CNC Machining Before Production Tooling

For prototype and low-volume medical equipment, CNC machining provides a practical route when a custom enclosure is needed but production tooling is not yet appropriate.

The current CAD design can be turned into a physical ABS cover for equipment assembly, design evaluation and engineering development.

If the recessed area, interface geometry or another feature needs revision, the CAD model can be updated before another component is produced.

This is particularly useful for custom medical equipment covers that cannot be replaced by a standard off-the-shelf enclosure.

What Helps Us Review an Irregular ABS Housing

For a conventional machined component, an individual drawing may contain most of the information required for manufacturing review.

An irregular exterior housing benefits from more context.

The most useful project package includes:

3D CAD + 2D Drawing + ABS Grade + Quantity + Critical Dimensions + Paint / Color Specification + Related Part Information

It also helps to identify which surfaces remain visible on the finished equipment and which areas connect to other components.

For painted parts, cosmetic requirements can be marked on the drawing rather than applying the same appearance standard to every hidden and visible surface.

With this information, the manufacturing review can focus on the actual route the part will follow—from machining the irregular ABS geometry through fitting, surface preparation and painting.
