CNC Machined PC Enclosure for Medical Equipment

A multi-part medical equipment enclosure is different from a single plastic cover. The individual panels may be machined separately, but they eventually have to come together around displays, controls and other components inside the device.

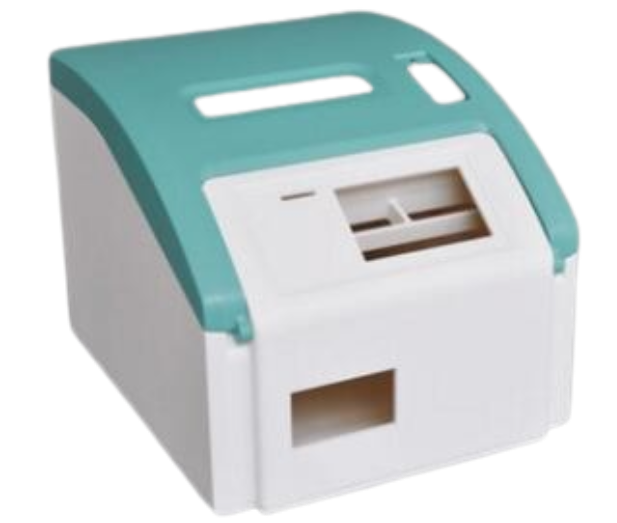

For this project, the customer required a custom PC enclosure CNC machined for a medical instrument from their 3D CAD data and technical drawings. The housing includes a curved upper section, front panels and several functional cutouts for components installed in the equipment.

After machining, the PC parts were checked with the related components, sanded and painted to the specified finish. The focus was not only on individual part dimensions, but also on how the housing sections aligned and fitted as a complete enclosure.

Project Details

The Housing Is Designed Around Other Components

The openings across the top and front of this enclosure are not simply machined features. They provide space and interfaces for components that will become part of the finished medical instrument.

This creates a relationship between several elements:

Housing Panel → Functional Cutout → Installed Component → Internal Structure → Adjacent Panel

A cutout can match its drawing and still cause an assembly problem if its relationship with the installed component is incorrect.

For medical device housing CNC machining, understanding the assembly can therefore be just as useful as reviewing the individual plastic part.

When assembly CAD and mating-part information are available, they help clarify which openings, locating areas and interfaces deserve particular attention during manufacturing.

Multiple Panels Need to Come Together Cleanly

Each section of the enclosure is CNC machined individually, but the customer ultimately sees one assembled product.

Panel relationships become especially noticeable around curved exterior surfaces and visible joint lines.

A mismatch may appear as a local step between neighboring surfaces, an inconsistent gap or an opening that no longer aligns correctly with the component behind it.

This is why multi-part plastic enclosure machining needs more than part-by-part dimensional inspection. Where required, the housing sections can be checked together before final finishing.

The goal is not to remove intentional joints from the product design, but to keep the assembled enclosure consistent with the customer's CAD and drawing requirements.

PC CNC Machining for Medical Enclosure Prototypes

PC (Polycarbonate) offers good toughness and impact resistance, making it a practical material for many equipment covers and enclosure components.

For prototype and low-volume requirements, PC CNC machining allows housing parts to be produced directly from the current CAD design without first investing in production tooling.

This gives engineers physical components that can be used to check:

• panel alignment;
• functional cutout positions;
• component clearance;
• mating interfaces;
• internal space;
• overall enclosure fit.

If a display, control or other component does not fit as expected, the relevant CAD geometry can still be adjusted before the project moves further toward production.

Check the Fit Before Finishing the Surface

For a painted multi-part housing, the sequence of work matters.

Completing the cosmetic finish before checking the important interfaces can create unnecessary rework if a mating feature later needs adjustment.

For this type of project, the CNC machined components can first be checked against their relevant mating parts and assembly requirements.

Once the fit is confirmed, the exterior surfaces move into sanding and paint preparation.

A practical workflow is:

CNC Machining → Interface Check → Trial Fit → Sanding → Painting → Final Review

This keeps mechanical fit and cosmetic finishing connected instead of treating them as two unrelated operations.

Sanding and Painting the PC Housing

A raw CNC machined plastic surface is not always suitable for the exterior of a finished medical instrument.

Tool paths and machining transitions that are acceptable on an internal component may remain visible after coating if the surface is not properly prepared.

The PC housing parts are therefore sanded before painting. Broad exterior panels, curved transitions, cutout edges and visible joint areas require particular attention.

Mating features need a different approach.

Removing too much material during sanding or allowing unnecessary coating build-up around an interface can affect how components fit together.

For a CNC machined medical equipment enclosure, a good finish should improve the appearance without compromising the intended assembly.

From CAD Parts to a Physical Enclosure

One of the practical benefits of CNC machining during medical equipment development is the ability to evaluate the housing as a physical assembly.

Engineers can install related components, examine panel relationships and identify integration issues that may be difficult to judge from individual CAD parts alone.

This makes the prototype useful for more than reviewing exterior shape.

It can help answer practical questions:

Do the components fit their openings?
Do the housing sections align?
Is there enough clearance around the internal assembly?
Does anything need to change before the next build?

Finding these issues while CAD changes are still practical can reduce unnecessary revisions later in the project.

Medical Device Housing CNC Machining Services

YS Precision provides medical device housing CNC machining and custom plastic enclosure machining from customer 3D CAD models and technical drawings.

Typical projects include medical instrument housings, diagnostic equipment enclosures, control panels, equipment covers and multi-part plastic prototypes.

We machine engineering plastics including PC / Polycarbonate, ABS, POM, Nylon, PEEK, PEI, PTFE, PMMA and PP.

Depending on the project requirements, CNC machining can be combined with mating-part checks, trial fitting, sanding, painting and other finishing processes.

Send Us Your Medical Enclosure Drawings

If you are sourcing a supplier for a custom medical device housing, CNC machined plastic enclosure or PC medical equipment housing, send us your CAD data and technical drawings for review.

For multi-part housing projects, useful RFQ information includes:

3D CAD + 2D Drawings + Material + Quantity + Critical Dimensions + Mating Components + Color / Finish Requirements

If displays, controls or other parts need to fit into the enclosure, assembly CAD or mating-component data can also help us understand those interfaces before machining begins.

YS Precision supports CNC machined medical device enclosures and low-volume plastic housing projects for customers worldwide.
