ABS Plastic CNC Machining for Custom Electronic Housings

For this consumer electronics project, the customer required approximately 20 sets of custom ABS housings, with an upper and lower cover forming each complete enclosure.

Both parts were CNC machined from customer-supplied CAD data. Although the exterior design is relatively clean, the two covers need to meet correctly around the perimeter after assembly. A small dimensional difference between the mating features can become visible as a gap or offset once the housing is closed.

We therefore produced and checked the parts as matched sets before sanding and applying the specified green finish.

For this stage of product development, ABS plastic CNC machining provided a practical way to manufacture complete housings directly from the current design without dedicated production tooling.

Project Overview

The Customer Needed 20 Complete Housings

The upper and lower covers are two separate CNC parts, but that is not how the customer uses them.

The requirement is 20 complete housings.

This matters because dimensional variation from both components comes together at the joint. Each cover may be acceptable when checked individually, while the assembled enclosure can still reveal a local gap, an uneven seam or a slight mismatch along the outside edge.

These differences are particularly noticeable on a consumer electronics product, where the joint line forms part of the visible exterior.

For this project, individual dimensions were checked against the drawings, but the upper and lower covers were also considered together as matched components.

The Mating Geometry Matters More Than Tight Tolerances Everywhere

Not every dimension on an ABS housing needs to be controlled to the same tolerance.

The important question is which features actually influence the assembled product.

For an upper-and-lower enclosure, these may include the mating edges, locating features, internal contact areas, mounting positions and other interfaces that determine how the two covers locate against each other.

Controlling these features helps maintain the intended joint and overall alignment.

This is more useful than simply specifying an unnecessarily tight tolerance across every exterior surface.

For CNC machined plastic housings, the drawing should identify the dimensions that matter to fit and function, while the machining process can be planned around those requirements.

A Simple Exterior Can Still Be Appearance-Sensitive

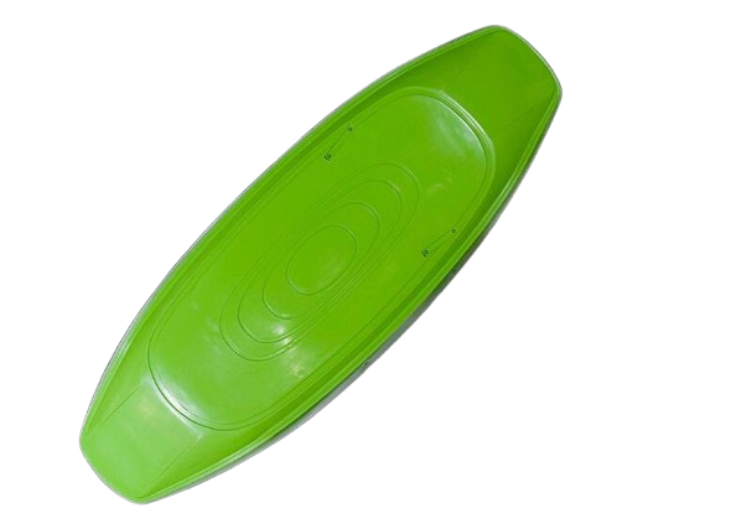

The housing has a long, rounded profile with smooth transitions toward both ends. Its main visible surface is curved rather than flat, with several shallow oval details running through the center of the design.

These are not unusually complex CNC features.

Their importance comes from being visible.

A machining transition that would be irrelevant on the inside of an equipment bracket can be noticeable on a consumer product, particularly after the surface is painted.

For this reason, the exterior toolpaths need to reproduce the CAD geometry while also leaving the part in a reasonable condition for subsequent surface preparation.

The machining priority is therefore different from that of an internal functional component: mating areas are driven by assembly, while the exterior is driven more by shape and appearance.

Checking the Housing Before Finishing

For this project, the upper and lower covers were checked together before the appearance finishing was completed.

This gives a different type of information from dimensional inspection alone.

Inspection confirms the specified dimensions. Assembly checking confirms how the physical parts come together.

The joint, outer edge alignment and general fit can be reviewed at this stage. If something needs attention around a mating or locating feature, it is better to identify it before additional finishing work has been added.

For development housings, this can also help expose a design issue rather than a manufacturing issue. If the CAD itself needs adjustment, the customer still has the opportunity to revise the design before moving toward production tooling.

Why CNC Machining Was Practical for 20 Sets

At approximately 20 sets, this project sits comfortably within the range where low-volume plastic CNC machining can make sense.

The customer needed real housings for product development, but not enough parts to justify a production mold at this stage.

Both ABS components could be manufactured directly from the current CAD revision. If the design changed after assembly or product evaluation, updated parts could be machined from revised data without modifying tooling.

That flexibility is one reason ABS CNC machining is used for prototype housings, engineering builds and low-volume electronic enclosures.

In this case, the customer could evaluate the complete housing first and make the tooling decision later.

Surface Preparation for the Finished Housing

After machining and fit checking, the ABS parts were sanded and finished in the required green color.

Surface preparation is important on this design because the exterior contains broad, smooth curves. Cutter marks or local machining transitions that are subtle on raw ABS may become more visible after coating.

Sanding prepares these areas for the final finish.

There is also a practical requirement across the two components: once assembled, the upper and lower covers should have a consistent appearance.

For custom painted parts, the required color specification or reference can be supplied together with the project drawings.

Custom Plastic CNC Machining for Electronic Housings

YS Precision provides custom plastic CNC machining services for electronic housings, covers, enclosures and other engineering plastic components.

Parts are manufactured from customer 3D CAD models and technical drawings, from individual prototypes to low-volume production.

Materials include ABS, PC / Polycarbonate, POM / Delrin, Nylon, PEEK, PEI, PMMA, PP and PTFE.

For multi-component projects, we can review not only individual part geometry but also the interfaces between mating components. This is useful for custom housings and enclosures where assembly fit is part of the manufacturing requirement.
