Low-Volume CNC Machining for Medical Equipment Control Panel Housings

A medical equipment control panel has to do two jobs at the same time. It forms the visible exterior of the equipment, but it also carries the openings and interfaces for displays, buttons, switches and other components behind the panel.

This project required 60 PC (Polycarbonate) top covers, approximately 400 × 300 mm, for medical equipment being prepared for customer-site trials in the United States. The housings were CNC machined from customer-supplied CAD data, carefully sanded and finished with flat white paint.

The complete batch was required within approximately one month. With a large display window, multiple button openings, ventilation features and mounting locations across the same panel, the job was not simply about machining 60 plastic covers. The functional features, cosmetic finish and batch consistency all had to be considered together.

Project Overview

More Than a Plastic Top Cover

The front of this housing contains considerably more detail than a conventional equipment cover.

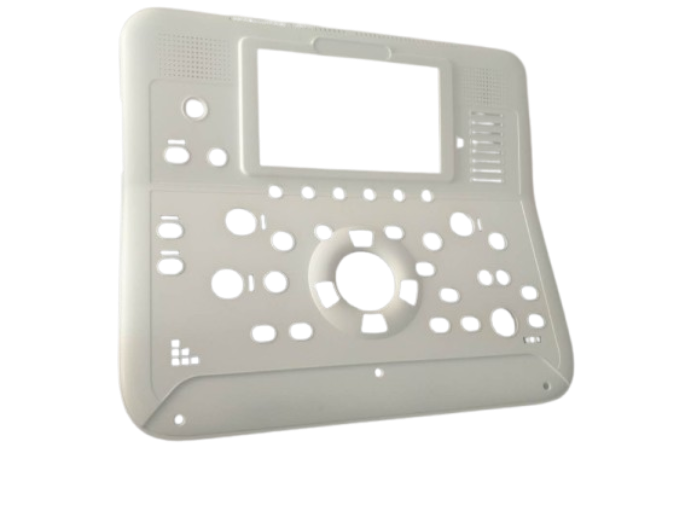

A large rectangular opening forms the display area. Around it are circular holes of different diameters, elongated slots, a central operating section, ventilation features and groups of smaller openings. Some features are located within raised or recessed areas rather than on one continuous flat surface.

Many of these features correspond directly with components inside the equipment.

The display opening needs to follow the position of the screen assembly. Button openings need to match the control layout. Mounting and locating features determine how the cover fits with the rest of the enclosure.

For medical equipment control panel CNC machining, these relationships are often more important than the number of holes itself.

Review the Critical Interfaces Before Machining

A 3D model shows the complete part geometry, but it does not always tell the manufacturer which dimensions matter most to the final assembly.

That is where the customer's 2D drawing and assembly information become valuable.

For this type of control panel, critical features may include:

• display opening position and size;
• button and switch locations;
• center-to-center relationships between controls;
• mounting and locating holes;
• mating surfaces;
• openings that interface with internal components.

These areas can receive the dimensional control specified by the drawing, while other surfaces may primarily have general enclosure or cosmetic requirements.

This is a more practical way to approach a large CNC machined plastic housing than treating every dimension as equally critical.

Check the Initial Parts Before Repeating the Process

With a 60-piece batch, a small issue can become expensive if it is repeated before being detected.

For example, a display opening could be machined to the correct size but still cause an assembly problem if its position does not correspond with the screen behind it.

The initial parts therefore provide an important checkpoint.

Critical dimensions, mounting features and other drawing-defined interfaces can be verified before the complete batch continues. Where mating components or assembly information are available, relevant fit relationships can also be reviewed.

The objective is straightforward:

confirm the features that affect assembly before repeating the same machining process across all 60 housings.

This is more useful than relying only on final inspection after the complete batch has already been machined.

CNC Machining a 400 × 300 mm Polycarbonate Panel

This housing combines a relatively large overall footprint with many smaller local features.

Larger machining operations establish the main enclosure geometry and recessed areas. Smaller cutters are required for button openings, narrow slots and detailed control features.

The machining sequence also needs to keep the panel properly located as material is removed from different areas.

PC requires suitable cutting conditions as well.

During polycarbonate CNC machining, sharp tools and controlled cutting parameters help reduce excessive heat and maintain cleaner edges around the display window, holes and narrow openings.

Clean machining has another benefit on this project: it reduces unnecessary hand finishing before painting.

That matters when the same edge condition and appearance need to be maintained across dozens of parts.

The Display and Control Layout Needs to Stay Consistent

The large display window is one of the most noticeable features on the housing.

Functionally, it needs to correspond with the display assembly. Visually, its surrounding edge remains part of the finished front panel.

The same applies to the central operating area and the groups of button openings.

A feature can therefore have both an assembly requirement and a cosmetic requirement.

This is one reason control panel housings need a slightly different manufacturing approach from simple plastic covers. Machining accuracy cannot be considered separately from how the panel will later look and function as part of the complete equipment.

Sanding Without Changing Functional Geometry

After CNC machining, the housing needs surface preparation for its flat white finish.

This panel contains many edges and transitions around the display window, button holes, slots, recessed areas and raised sections.

The broad cosmetic surfaces need an even base for painting, but functional openings require more controlled finishing.

Once an opening has been machined correctly, excessive sanding around its edge can round corners or subtly change its dimensions.

The objective is not simply to sand the entire housing until it looks smooth.

It is to prepare the visible surfaces while preserving the geometry needed for assembly.

For a feature-rich plastic control panel, that distinction matters.

Flat White Painting with Assembly in Mind

The customer specified a flat white painted finish for the top cover.

Because this is a user-facing part of the medical equipment, the appearance of the broad front surfaces, display area and control layout needs to meet the specified cosmetic requirement.

But paint also adds material.

Around display openings, button holes and mounting interfaces, excessive coating buildup can affect fit even when the underlying CNC machining is correct.

The finished panel therefore needs to be considered from both directions:

Does it look right?

Does it still fit and assemble correctly?

For this project, painting was part of the manufacturing requirement rather than simply a decorative operation added after machining.

Keeping 60 Finished Housings Consistent

Producing one acceptable panel does not prove that a 60-piece batch is under control.

Once the initial machining and finishing approach is established, the same critical features and cosmetic expectations need to carry through the remaining quantity.

The production flow can be organized around clear checkpoints:

Drawing Review → CNC Setup → Initial Part Check → Batch Machining → Critical Feature Inspection → Sanding → Flat White Painting → Cosmetic Check → Protective Packing

Each operation has an effect on the next.

Clean machining reduces manual correction. Controlled sanding protects functional features. Painting needs to achieve the required finish without interfering with assembly areas.

For low-volume plastic housing production, managing these transitions is just as important as the CNC machining itself.

One Month Means a Finished 60-Piece Batch

The customer required the complete order within approximately one month.

That schedule had to include more than machine time.

CNC machining, inspection, sanding, painting, cosmetic checks and packing all had to fit within the same production window.

Where appropriate, confirmed parts can move into finishing while machining continues on the remaining quantity. This helps avoid leaving all secondary processes until the end of the project.

From a production standpoint, the meaningful lead time is therefore:

approved manufacturing data → 60 finished painted housings ready for shipment.

Not simply:

CAD file → CNC machining completed.

This is an important distinction when evaluating the actual delivery capability for a finished plastic housing project.

Made for Customer-Site Trial Equipment

The completed housings were shipped to the United States for equipment that would be used at the customer's site for trial evaluation.

This allows the customer to assess the panel as part of the complete product.

Display alignment, button layout, assembly, user interaction and the finished appearance can all be evaluated under more realistic conditions.

If trial feedback later requires a change to an opening, mounting location or control feature, the CAD data and CNC machining program can be revised for a subsequent batch.

For this stage of a product program, low-volume CNC machining for medical equipment housings provides a useful bridge between early prototypes and later production.

What to Include in Your RFQ

For a medical control panel with multiple functional interfaces, overall dimensions and quantity are only the starting point.

For manufacturing review and quotation, please provide:

3D CAD + 2D Drawings + Material Grade + Quantity + Critical Tolerances + Mating Component Information + Cosmetic Requirements + Paint Specification + Required Delivery Date

If particular display, button or mounting interfaces are critical, marking them clearly on the drawing helps focus machining and inspection on the dimensions that directly affect the finished equipment.
