PEEK CNC Machining Services for Custom Mechanical Parts

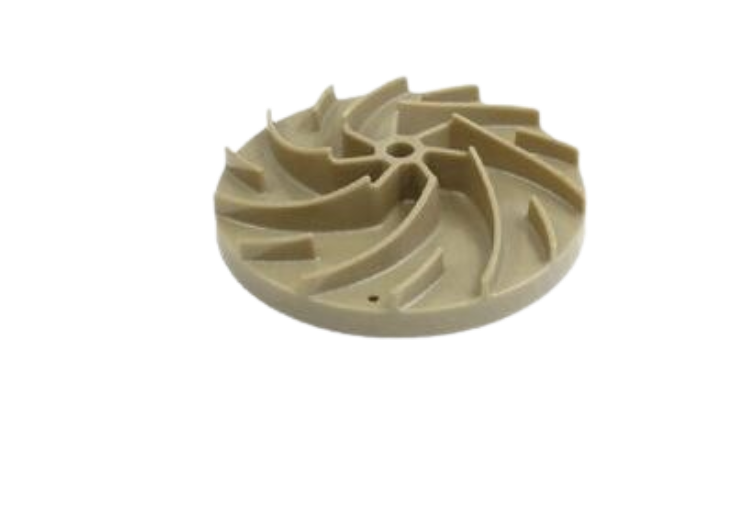

At first glance, this PEEK component looks fairly straightforward: a round body with a series of curved ribs on one face. Most of the machining work, however, is concentrated between those ribs and in the narrow channels that follow the radial pattern.

We produced approximately 120 pieces for a mechanical equipment project in the United States. With PEEK specified for the part, material cost and process stability needed to be considered from the beginning.

The challenge was not simply making one good part. The machining process had to work consistently across the batch while protecting the slender features and avoiding unnecessary loss of high-value material.

Project Details

Most of the Machining Is Between the Ribs

The outside diameter is relatively simple. The face of the component is where the machining becomes more involved.

Curved ribs extend outward from the center, leaving narrow channels between neighboring features. Because these channels follow the radial pattern rather than a straight path, cutter access changes around the part.

A larger tool can remove material efficiently in the more open areas, but it may not reach the tighter spaces between the ribs. Smaller cutters are needed where access becomes restricted.

This is one reason overall dimensions alone do not tell the full story when quoting custom PEEK parts. Two components with a similar diameter and thickness can require very different machining time if one has open pockets and the other has narrow, closely spaced features.

The Part Changes as Material Is Removed

Before machining, the surrounding stock supports the entire face. As the channels are opened, the ribs become increasingly exposed.

That affects the order of operations.

Finishing a slender rib too early can leave it vulnerable while neighboring areas are still being machined. Tool choice, cutting conditions and machining sequence therefore need to be planned together.

The aim is not simply to remove PEEK as quickly as possible. The process also needs to protect geometry that has already been created.

For parts with thin ribs, narrow channels or similar features, this can have a direct influence on both machining stability and finished-part consistency.

Cutter Access Has a Direct Effect on Cost

Feature spacing is particularly important on this component.

Where access permits, larger cutters can be used for more efficient material removal. As the channels become narrower, smaller tools are required to reach the remaining geometry.

Smaller cutters can mean longer machining time and a different cutting strategy.

This is why quotation for PEEK CNC machining should consider the actual CAD geometry rather than only the outside dimensions of the part.

For this type of component, cost is influenced by the combination of:

PEEK grade + part geometry + cutter access + quantity + drawing requirements

That provides a more meaningful basis for quotation than comparing machine rates alone.

With PEEK, Scrap Has a Real Cost

PEEK is considerably more expensive than common engineering plastics such as ABS, PC or POM.

On a batch of approximately 120 parts, avoidable scrap can quickly affect the total order cost.

For that reason, workholding, toolpaths and machining sequence need to be established before the complete production run progresses. Tool condition also deserves attention as machining time accumulates across the batch.

A slightly faster cutting strategy is not necessarily better if it increases the chance of losing an expensive workpiece.

With high-value engineering plastics, material utilization and scrap control are part of manufacturing cost control.

Making One Part and Making 120 Parts Are Different Jobs

A successful first piece proves that the geometry can be machined.

Producing the same component repeatedly requires something more.

Workpieces need to locate consistently, the radial features need to remain stable from part to part, and the machining process needs to account for tool wear over the production run.

This is why we view an order like this as low-volume PEEK CNC production, rather than simply repeating a prototype 120 times.

For a sourcing team, the distinction is important: the requirement is not just machinability, but a process that remains workable across the required quantity.

Specify the Exact PEEK Grade

“PEEK” alone may not fully define the material requirement.

Depending on the application, a drawing may call for unfilled PEEK, glass-filled PEEK, carbon-fiber-filled PEEK or a particular commercial grade. Material cost and machining behavior can differ between grades.

We therefore recommend including the exact material specification in the RFQ whenever possible.

This also makes supplier quotations easier to compare. A lower price based on a different PEEK grade is not necessarily a lower price for the same part.

Inspection Follows the Functional Requirements

This component contains many repeated features, but not every dimension necessarily needs the same tolerance.

Depending on its function in the equipment, important requirements may include the central locating geometry, outside diameter, rib dimensions, channel geometry, mounting features or mating surfaces.

These requirements should be defined on the customer's 2D drawing.

That gives machining and inspection a clear reference and keeps attention on the dimensions that actually influence function and assembly.

Custom PEEK and Plastic CNC Machining Services

YS Precision provides PEEK CNC machining services for custom mechanical components, prototypes and low-volume production.

Parts are manufactured from customer 3D CAD models and 2D technical drawings, with the manufacturing approach reviewed according to the material grade, geometry, quantity and drawing requirements.

Our plastic CNC machining services also cover engineering plastics including:

PEI, POM / Delrin, Nylon, PC / Polycarbonate, ABS, PMMA, PP and PTFE.

Projects can range from structural components and mechanical parts to CNC machined plastic components with thin ribs, narrow channels, deep pockets or other restricted machining areas.

For high-cost engineering plastics, we also consider material usage and machining risk during the manufacturing review—not just cycle time.

Send Us Your PEEK Part for Review

If you are sourcing PEEK CNC machining services, custom PEEK parts or low-volume PEEK machining, send us your CAD files and technical drawings for review.

For quotation, please provide:

3D CAD + 2D Drawing + Exact PEEK Grade + Quantity + Overall Dimensions + Critical Tolerances + Surface Requirements

For components with narrow channels, curved ribs or restricted machining areas, the 3D model is particularly useful for reviewing cutter access before production.
