ABS CNC Machining for Custom Electronic Equipment Front Bezels

A front bezel does not need complicated geometry to become a demanding appearance part.

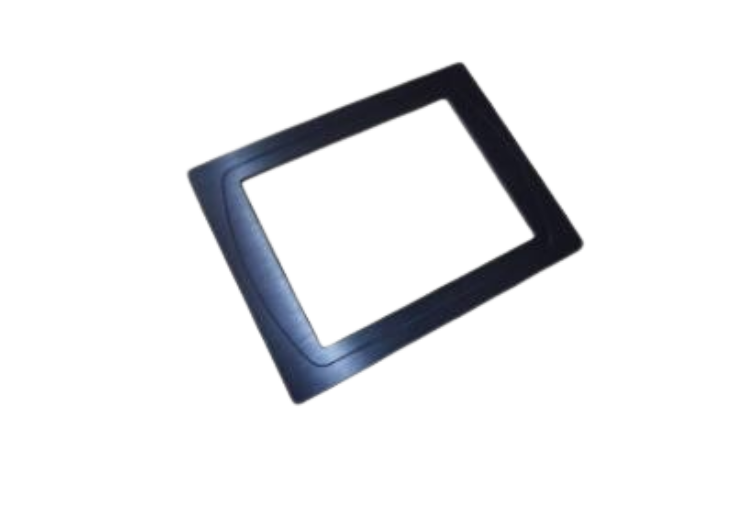

This custom ABS electronic front bezel measures approximately 200 × 160 mm and was CNC machined in a batch of 30 pieces from the customer's CAD model and technical drawing.

The design consists of a large rectangular center opening surrounded by a relatively wide frame with rounded internal corners. Because the bezel forms part of the visible front of the equipment, the relationship between the opening and outer profile is easy to notice after assembly.

After machining, the ABS parts are sanded and finished to the customer's specified color.

For this type of component, plastic CNC machining is not mainly about producing complex features. The important work is keeping the window geometry, surrounding frame, assembly interfaces and visible surfaces consistent with the customer's design.

Project Details

A Large Opening Leaves Less Material Than It First Appears

Viewed from the front, this part looks like a simple rectangular frame. From a machining perspective, however, most of the material inside the frame has to be removed.

Once the large central opening is machined, four relatively long frame sections remain around the perimeter.

This changes how the workpiece behaves compared with a solid plate.

The part needs suitable support during machining, while clamping and material removal should avoid putting unnecessary stress into the remaining ABS frame.

This is especially relevant when machining the inner opening because the finished bezel needs to maintain the intended relationship between its inner and outer profiles.

The challenge is therefore not geometric complexity. It is producing a clean, stable plastic frame after a large amount of the center material has been removed.

Window Position Is Part of the Product Appearance

The large central opening is the visual center of this component.

Depending on the final equipment design, it may surround a display, interface panel or another front-mounted component. Its exact purpose is defined by the customer's assembly.

What is clear from the geometry is that the opening occupies a large percentage of the overall 200 × 160 mm part.

This makes opening position and surrounding bezel width visually important.

If the window shifts relative to the outside profile, one side of the frame can appear wider than another after assembly. If another component fits inside or behind the opening, dimensional variation can also influence fit.

For a CNC machined plastic bezel, the window cannot be treated simply as material that needs to be removed. It is one of the main functional and appearance features of the part.

ABS CNC Machining for a Visible Housing Component

This bezel sits on the exterior of the electronic equipment rather than being hidden inside it.

That changes the definition of an acceptable part.

An internal bracket may function correctly even with minor visible machining marks. A front housing component needs to meet the drawing while also providing a suitable surface for the required appearance finish.

After ABS CNC machining, the parts are sanded and prepared for the specified color.

Attention is given to the broad front surface, inner window edges and outer perimeter because these areas remain visible on the assembled equipment.

The objective is not to turn CNC machining into a cosmetic process. It is to provide a consistent machined base so the subsequent finishing operation can achieve the intended product appearance.

What Matters on the Drawing?

For a relatively simple bezel, applying an unnecessarily tight tolerance to every dimension does not necessarily improve the final product.

It is more useful to identify the dimensions that actually control fit and appearance.

Depending on the assembly, these may include:

• window length and width;
• position of the opening relative to the outside profile;
• inside corner radii;
• overall bezel dimensions;
• mounting or locating features;
• rear mating surfaces;
• interface dimensions with the display or panel.

These requirements should be defined on the customer's 2D drawing where they are functionally important.

For custom plastic CNC machining, this helps direct manufacturing and inspection attention toward the features that matter in the final equipment.

A 30-Piece Batch for Equipment Development

The order required 30 ABS bezels rather than a single appearance sample.

This quantity can support engineering builds, equipment assembly, product evaluation, demonstrations or other pre-production requirements.

CNC machining also means the parts are produced from the customer's current engineering data. The customer can therefore evaluate the bezel as part of the complete equipment rather than only as an isolated plastic frame.

The window can be checked against the component behind it, the outer frame can be evaluated against adjacent housing parts, and the finished color can be reviewed on an assembled unit.

This is a common use case for low-volume plastic CNC machining in electronic equipment development.

Plastic CNC Machining for Electronic Housings and Bezels

YS Precision provides plastic CNC machining services for custom electronic and industrial equipment components manufactured from customer 3D CAD models and 2D drawings.

Typical CNC machined plastic parts include:

• electronic equipment front bezels;
• display frames;
• custom plastic housings;
• control panels and faceplates;
• equipment covers;
• internal structural components;
• prototype and low-volume plastic parts.

Materials available for CNC machining include ABS, PC / Polycarbonate, POM / Delrin, Nylon, PMMA, PEEK, PEI and PTFE.

Different parts require different machining priorities. For this ABS bezel, the focus is the large opening, frame geometry, assembly relationship and visible front surface rather than complex multi-axis machining.

Request a Quote for Custom ABS CNC Parts

If you are sourcing ABS CNC machining services, plastic CNC machining or custom electronic equipment housings, send us your CAD files and technical drawings for review.

For quotation, please provide:

3D CAD + 2D Drawing + ABS Grade + Quantity + Critical Tolerances + Color / Surface Requirements

If the bezel interfaces with a display, control panel or another housing component, please identify the critical window dimensions, locating features and mating surfaces on the drawing.

YS Precision supports custom CNC machined plastic parts and low-volume ABS production for overseas engineering and purchasing teams.
