Custom CNC Machining Service for Aluminum Structural Components

Precision Machined Aluminum Parts for Industrial Equipment Applications

Industrial equipment relies on mechanical components that provide accurate positioning, structural support, and reliable connection between different assemblies.

Unlike standard CNC parts, structural components often combine multiple machining features into one integrated design, including mounting surfaces, precision holes, pockets, and complex transition areas.

YS Precision provides custom CNC machining services for aluminum structural components, helping global equipment manufacturers produce reliable parts directly from their engineering drawings and CAD models.

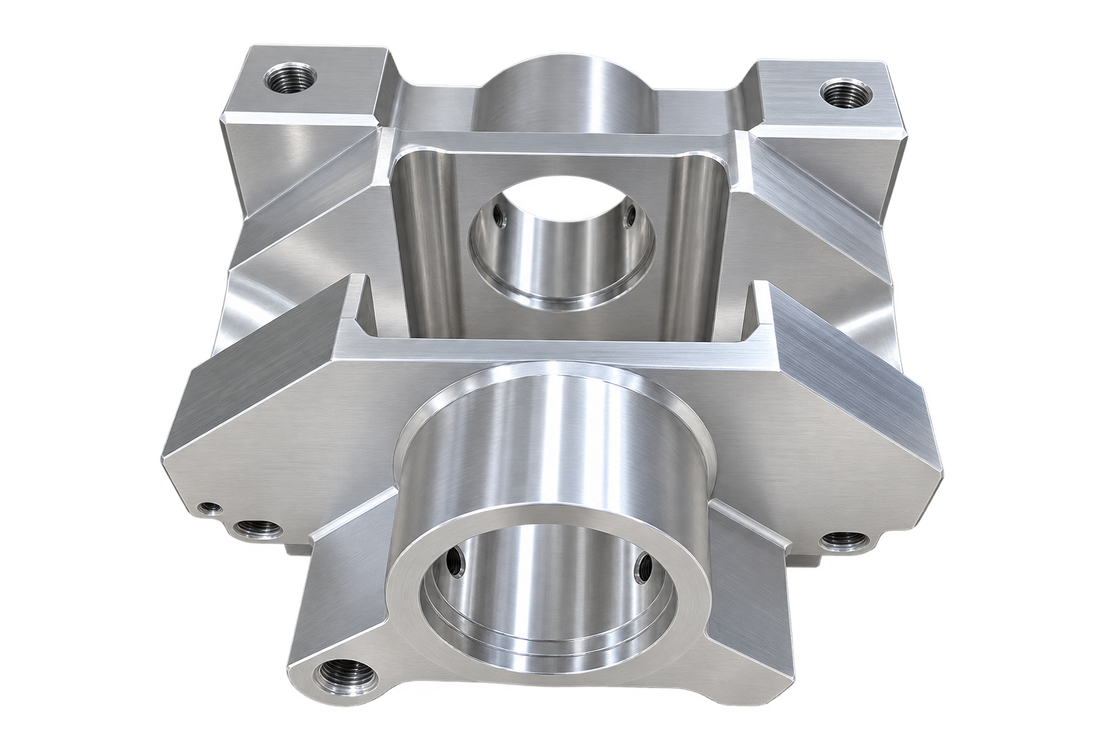

This project was a customized aluminum structural component manufactured for an overseas mechanical equipment customer. The part was produced from 6061 aluminum alloy and required multi-side machining, precision feature control, deburring, and natural anodizing before shipment.

Project Overview

Manufacturing Integrated Mechanical Structures

Many industrial equipment parts are not simply individual machined pieces. They are designed as functional structures that must accurately connect with other assemblies.

For this component, the machining challenge was maintaining the relationship between different functional areas, including:

• Mounting positions
• Precision holes
• Machined pockets
• Supporting surfaces
• Connecting features

Instead of producing separate pieces and assembling them together, the component was machined as an integrated structure to improve:

• Assembly reliability
• Structural consistency
• Installation efficiency

Engineering Approach for Complex Aluminum Machining

Before production, our engineers analyzed the customer's drawings to develop a suitable machining strategy.

Key considerations included:

Machining Sequence Planning

Different machining operations were arranged to maintain stability and reduce unnecessary repositioning.

Feature Relationship Control

Important dimensions were controlled based on their functional relationship within the equipment assembly.

Surface Protection

Machining and finishing processes were planned together to maintain the final appearance and dimensions.

CNC Machining of Aluminum 6061 Components

6061 aluminum is widely selected for industrial equipment because it offers a practical balance between:

• Strength
• Weight reduction
• Machinability
• Corrosion resistance

For this project, CNC machining was optimized to maintain dimensional stability on a relatively large component.

The finished part achieved critical dimensional control within:

±0.05 mm

Complete Finishing Solution After Machining

After CNC machining, the component went through additional finishing processes.

Deburring

All machining edges were carefully removed to improve:

• Safety during handling
• Assembly convenience
• Surface quality

Natural Anodizing

The aluminum surface was anodized to provide:

• Improved corrosion resistance
• Better wear resistance
• Long-lasting appearance

The finishing process was selected according to the customer's industrial application requirements.

Manufacturing Support from Drawing Review to Delivery

YS Precision works with equipment manufacturers who need customized mechanical parts based on their own designs.

Our support includes:

• Engineering drawing review
• Manufacturing feasibility analysis
• CNC machining
• Surface finishing
• Quality inspection
• Export packaging

By working closely with customers during the manufacturing process, we help reduce production risks and improve project efficiency.

Your Partner for Custom Industrial Equipment Components

YS Precision manufactures customized CNC machined components for:

• Industrial machinery
• Automation equipment
• Robotics systems
• Semiconductor equipment
• Testing equipment
• Precision mechanical assemblies

Whether for prototype development or small-batch production, we provide flexible manufacturing solutions for companies requiring reliable custom mechanical parts.

Share your drawings with YS Precision and let our engineers help manufacture your next industrial component.
