CNC Machined Brass Valve Blocks for Automation Control Systems

Custom Brass Control Components Manufactured for Industrial Automation Equipment

Modern automation systems often require customized control components to manage air, pressure, or fluid connections inside the equipment.

A valve block is not simply a machined metal block. Its internal passages, threaded connections, and interface positions must match precisely with valves, fittings, and other system components.

YS Precision manufactures custom CNC machined brass valve blocks for automation equipment manufacturers, producing functional control components based on customer-specific designs.

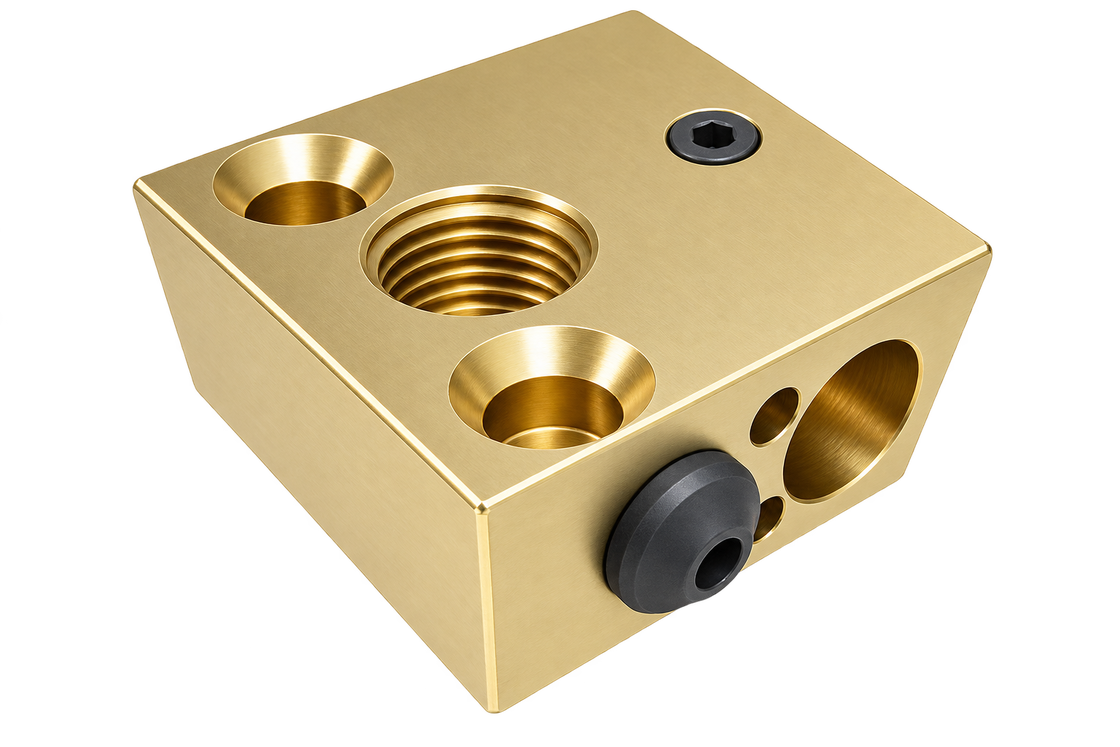

This project was a brass valve block manufactured for a U.S. automation equipment customer. The component was CNC machined from brass material and produced in a small batch of approximately 100 pieces for equipment integration.

Project Overview

Manufacturing Functional Valve Components from Customer Designs

Automation equipment manufacturers often develop their own control systems, requiring customized valve blocks rather than standard catalog components.

For this project, the customer provided the component design requirements, and the valve block was manufactured according to the specified structure and interface dimensions.

The main manufacturing focus included:

• Threaded connection accuracy
• Hole position consistency
• Interface alignment
• Machined surface quality

These features ensure the valve block can be installed directly into the customer's automation system.

Precision CNC Machining of Brass Control Blocks

Brass is widely used for valve and control components because it offers:

• Excellent machinability
• Good corrosion resistance
• Stable dimensional performance
• Reliable threaded connection performance

Compared with aluminum parts, brass requires different machining approaches.

During production, attention was given to:

• Tool selection
• Cutting conditions
• Chip control
• Edge finishing

to maintain clean machining results and reliable functional surfaces.

Accurate Interface Machining for Automation Equipment

The key challenge of valve block manufacturing is not only individual dimensions, but the relationship between multiple connection points.

This component included:

• Threaded holes
• Side connection openings
• Mounting features
• Multiple machined surfaces

Accurate positioning between these features helps ensure:

• Proper valve installation
• Correct connection with fittings
• Stable equipment operation

CNC Machining Process for Brass Valve Blocks

The manufacturing process included:

CNC Milling

Creating the external shape and functional machining features.

Hole and Thread Processing

Producing connection points according to customer requirements.

Deburring and Cleaning

Removing machining edges and preparing the component for assembly.

Final Verification

Checking critical features before export shipment.

Custom Automation Components Without Standard Limitations

Automation equipment manufacturers often require unique components designed around their own machines.

YS Precision supports customized production of:

• Valve blocks
• Manifold components
• Pneumatic control parts
• Mechanical interface components

based on customer engineering requirements.

CNC Machining Partner for Brass Automation Components

YS Precision provides customized CNC machining solutions for industrial customers requiring:

• Brass components
• Copper parts
• Aluminum components
• Stainless steel parts

Applications include:

• Automation equipment
• Pneumatic systems
• Control systems
• Precision machinery

From prototype development to small batch production, we help customers manufacture reliable components that integrate into their equipment.

Share your valve block design with YS Precision and let our engineers provide a suitable machining solution.
