PTFE CNC Machining for Precision Laboratory Equipment Components

Custom Teflon Rotating Parts Manufactured for Chemical-Resistant and Low-Friction Applications

In laboratory and scientific equipment, some components must operate in environments where conventional plastics cannot provide sufficient performance.

Parts used in these systems may require:

• Extremely low friction
• Chemical resistance
• Stable operation under temperature changes
• Reliable dimensional performance

PTFE, also known as Teflon, is widely selected for these demanding applications because of its unique material characteristics.

YS Precision specializes in PTFE CNC machining, producing customized Teflon components for laboratory equipment and precision instruments.

This project involved a PTFE rotating component manufactured for an overseas laboratory equipment customer. The part was CNC machined from PTFE material and designed for precision movement and functional positioning within the equipment.

Project Overview

Why PTFE Is Used for Laboratory Equipment Components

PTFE is one of the most widely used high-performance plastics for specialized applications.

Compared with common engineering plastics, PTFE provides:

Extremely Low Friction

PTFE has excellent self-lubricating properties, making it suitable for rotating and sliding components where reduced friction is required.

Outstanding Chemical Resistance

It can withstand exposure to many chemicals, making it suitable for laboratory and scientific environments.

Wide Temperature Capability

PTFE maintains stable performance across a wide operating temperature range.

Excellent Non-Stick Characteristics

Its low surface energy helps reduce material adhesion and contamination.

Because of these advantages, PTFE is often selected even though its material cost is significantly higher than standard plastics.

CNC Machining Challenges of PTFE Parts

Although PTFE has excellent functional properties, it is a challenging material to machine.

Unlike rigid plastics or metals, PTFE has unique machining characteristics:

High Material Flexibility

The material can deform under machining pressure, requiring proper workholding methods.

Thermal Expansion

Temperature changes during machining may influence final dimensions.

Surface Quality Control

Improper machining conditions can cause:

• Burrs
• Surface marks
• Dimensional variation

To achieve stable results, the machining process requires careful control of:

• Cutting conditions
• Tool selection
• Fixture methods
• Machining sequence

Manufacturing Precision Rotating PTFE Components

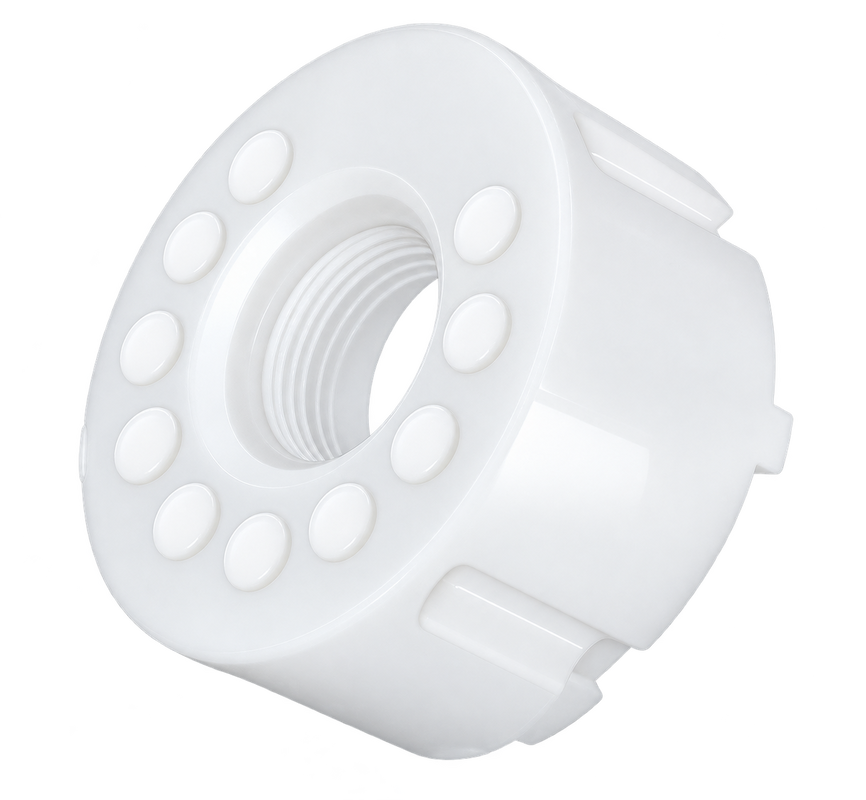

The component features a circular design with multiple functional areas:

• Central positioning structure
• Evenly distributed holes
• Rotating interface surfaces
• Precision machined profiles

For rotating parts, maintaining geometric relationships is critical.

The manufacturing focus included:

• Concentricity control
• Hole position accuracy
• Smooth surface finishing
• Dimensional stability

These factors help ensure reliable operation when installed in laboratory equipment.

Custom PTFE Parts Manufactured According to Equipment Requirements

Laboratory equipment manufacturers often require non-standard components designed specifically for their systems.

YS Precision supports customized PTFE machining based on:

• Engineering drawings
• CAD models
• Material specifications
• Application requirements

Different operating environments require different material solutions, and our team helps select suitable machining methods based on the actual application.

Applications of CNC Machined PTFE Components

PTFE machined parts are commonly used in:

• Laboratory instruments
• Chemical processing equipment
• Semiconductor equipment
• Medical devices
• Precision automation systems

Typical applications include:

• Rotating components
• Sliding elements
• Insulating parts
• Chemical-resistant fixtures
• Precision support components

Advanced Plastic CNC Machining Capability

YS Precision provides CNC machining for high-performance engineering plastics, including:

• PTFE (Teflon)
• PEEK
• PEI
• POM
• Nylon
• PC
• ABS

Different materials are selected according to application requirements:

• PTFE for low friction and chemical resistance
• PEEK for high-temperature and demanding environments
• POM for precision mechanical applications

Your PTFE CNC Machining Partner

Manufacturing PTFE components requires more than standard plastic machining knowledge.

YS Precision combines material experience and CNC machining capability to produce customized Teflon parts for global customers in demanding industries.

Send your PTFE component design and discuss your machining requirements with our engineers.
