5-Axis CNC Machining for Medical Device Components

Medical device structural components can combine complex geometry with demanding assembly relationships. Multiple bores, mounting interfaces, pockets, and features positioned in different orientations may all need to work together within the final equipment.
For this medical device project, YS Precision manufactured approximately 200 custom aluminum structural components for a customer in Germany.

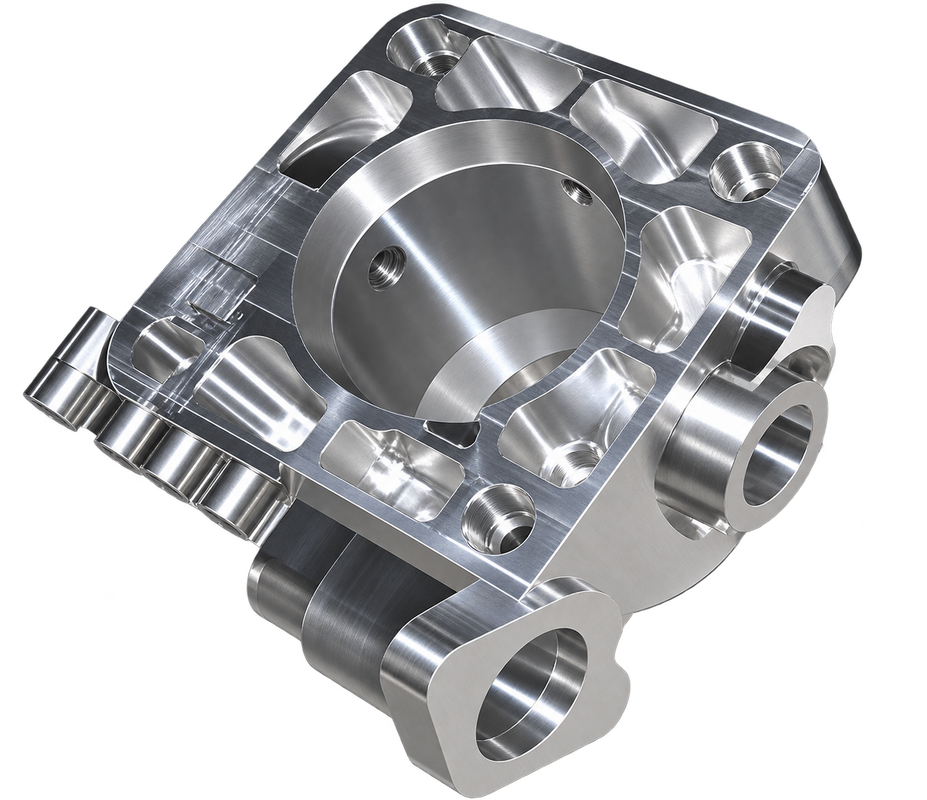

The part measures approximately 300 × 180 × 50 mm and is machined from Aluminum 6061-T6. Its irregular body incorporates a large central machined area, multiple pockets, precision bores, mounting lugs, and features located on different faces.
Because these features require machining access from multiple orientations, 5-axis CNC machining was selected to reduce unnecessary setups and maintain the positional relationships between important features.
After machining and inspection, the components were finished with clear anodizing without sandblasting.


Medical Device CNC Machining – Project Overview

Complex Structural Component with Multi-Directional Features

This medical device component is more complex than a conventional plate, bracket, or housing.
The main body contains a large circular machined region surrounded by pockets, bosses, bores, curved transitions, and local mounting structures. A projecting mounting lug incorporates another machined bore, while additional features are distributed across different orientations of the component.
The manufacturing challenge is therefore not simply machining individual holes and pockets.
The relationship between bores, mounting interfaces, mating surfaces, and features located on different faces needs to be maintained so the component can function correctly within the medical equipment assembly.
This type of geometry makes machining strategy and workholding particularly important.


Why 5-Axis CNC Machining for This Medical Component?

Using conventional 3-axis machining could require the workpiece to be repositioned several times to reach the different faces of this component.
Every additional setup requires new locating and workholding operations.
With 5-axis CNC machining, more features can be reached while the component remains in fewer setups.
For this medical equipment part, that provides several advantages:

• access to multi-directional features;
• machining of side-facing and angled geometry;
• fewer workholding changes;
• better consistency between related features;
• improved access around irregular structures;
• more efficient machining of complex surfaces;
• repeatable production across the batch.

For precision medical machining, the advantage of 5-axis technology is not simply geometric capability. Reducing unnecessary repositioning can also help maintain the relationship between critical features throughout production.


Aluminum 6061-T6 for Medical Device Structural Parts

The component was manufactured from Aluminum 6061-T6.
6061-T6 combines good machinability, mechanical properties, dimensional stability, and compatibility with anodizing, making it suitable for many non-implantable mechanical and structural applications where specified by the customer's design.
Typical machined components can include:

• medical equipment structural parts;
• equipment frames and supports;
• mounting components;
• precision brackets;
• instrument housings;
• internal mechanical components;
• equipment assembly interfaces.

For this project, the material also supports extensive multi-face machining and the required clear anodized finish.


Producing 200 Consistent Medical Device Components

Producing a successful first article is only one part of a low-volume medical device machining project.
The customer required approximately 200 components, making manufacturing consistency across the complete batch an important consideration.
Production planning therefore needs to consider:
Workholding → Machining Sequence → Toolpath → Tool Life → In-Process Inspection → Final Inspection
Features that influence assembly can be identified from the customer's 2D drawing before production.
Depending on drawing requirements, attention may be focused on:

• precision bores;
• mounting hole positions;
• mating surfaces;
• feature-to-feature relationships;
• flatness and perpendicularity;
• critical assembly dimensions.

For a 200-piece production batch, in-process inspection can help detect dimensional trends before they affect a larger number of parts.
This is an important difference between simply making a prototype and establishing a repeatable low-volume CNC production process.


Clear Anodizing Without Sandblasting

Another distinctive requirement of this medical device component is the surface specification:
Clear Anodizing – No Sandblasting
Without sandblasting, the underlying CNC-machined surface remains more visible after anodizing.
This means machining marks, scratches, handling damage, and inconsistencies between adjacent machined surfaces may be more noticeable than on a sandblasted component.
Surface control therefore starts before anodizing:
CNC Machining → Deburring → Inspection → Careful Handling → Clear Anodizing → Appearance Check
For this project, the objective is to preserve a controlled machined surface rather than using blasting to create a uniform matte texture.
This finishing requirement also makes careful part handling important during low-volume production.


Inspection Focused on Functional and Assembly Features

For a complex medical equipment component, inspection should follow the engineering drawing and the function of the part.
Not every dimension necessarily carries the same assembly significance.
Before machining, our engineering team reviews the customer's 3D CAD and 2D drawings to identify critical dimensions, machining access, workholding considerations, and inspection requirements.
During production, inspection can focus on the features that influence the final medical equipment assembly.
This engineering-driven approach supports both prototype development and repeat low-volume production.


Medical Device CNC Machining at YS Precision

YS Precision provides medical device CNC machining and 5-axis machining services for custom structural and mechanical components.
We support overseas engineering and purchasing teams requiring:

• 5-axis CNC machined medical components;
• precision aluminum parts;
• complex multi-sided machining;
• medical equipment structural parts;
• CNC prototypes;
• low-volume CNC production;
• repeat production orders;
• anodizing and other surface finishes;
• dimensional inspection;
• international delivery.

Our machining capabilities cover Aluminum 6061, 6082 and 7075, stainless steel, titanium, engineering plastics, and other materials specified by customer drawings.
Each project is reviewed according to its geometry, material, tolerances, critical interfaces, quantity, surface finish, and inspection requirements.
