Custom Nylon CNC Machining for Medical Equipment Components

For a functional plastic component, the outside shape is often the easy part. The features that locate, fasten and connect it to the rest of the assembly are where the machining requirements become more important.

This custom nylon component was CNC machined from customer drawings for medical equipment and supplied to Germany.

The rectangular body is relatively straightforward, but the working face contains several closely related features: a large circular recess, a central bore, an internal threaded port and multiple mounting holes.

Rather than treating these as separate holes and pockets, the machining process needs to preserve the relationships defined on the drawing. Bore position, recess depth, thread location and mounting-hole pattern can all influence how the component fits into the final equipment.

Project Details

The Functional Geometry Is Concentrated on One Face

Most of the engineering detail is visible on the front of this component.

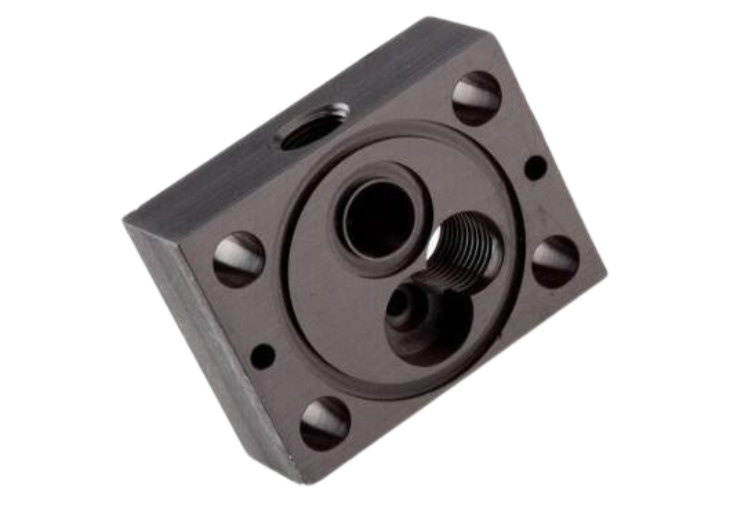

A large circular recessed area forms the main working region. Inside and around it are openings of different sizes, including a central bore and a clearly visible internal thread. Several additional holes form a mounting pattern around the circular geometry.

The exact purpose of the part cannot be confirmed from the image alone, so it would be misleading to call it a valve body, manifold or another specific medical component.

From a machining standpoint, however, its character is clear: this is a functional plastic interface part designed to mate with other components.

That makes the relationship between features particularly important.

Bore Position Can Matter as Much as Bore Diameter

A bore can meet its diameter requirement and still cause an assembly problem if it is not correctly positioned relative to the other features.

The same applies to the mounting holes.

If several fasteners need to engage with a mating component at the same time, the hole pattern needs to correspond with that assembly. The central bore, circular recess and threaded port may also have positional relationships defined on the customer's drawing.

This is why custom plastic CNC machining is not simply about machining every feature independently.

For functional parts, we look at the dimensions and relationships that actually control fit.

Machining Bores and Internal Threads in Nylon

The combination of bores and an internal threaded feature makes this component different from a typical plastic cover or housing.

Threads machined directly into nylon need to follow the specified thread size and usable depth while maintaining sufficient material around the feature.

Bores can have different purposes as well. A clearance hole, locating bore and mating bore may look similar in a 3D model but require different dimensional control.

Where these features are important to assembly, the 2D technical drawing should define the required thread specifications, dimensions and tolerances.

Tool selection and cutting parameters also need to suit nylon rather than simply using the same machining approach as an aluminum component.

Nylon Grade Should Be Specified

For nylon CNC machining, the exact material grade can matter.

Nylon is a family of engineering plastics rather than a single material. Different grades can vary in stiffness, wear characteristics and moisture absorption.

These differences may become relevant when a component contains locating bores, threaded connections or mating dimensions.

For that reason, we prefer the required nylon or PA grade to be specified on the drawing or RFQ instead of assuming that different nylon materials are interchangeable.

This gives both the customer and manufacturer a clear material reference before production begins.

Inspect the Features That Control Assembly

Not every dimension on a functional plastic component necessarily requires the same level of control.

For this type of part, the drawing may identify critical requirements such as:

• central bore diameter and position;
• circular recess diameter and depth;
• relationship between concentric features;
• threaded port size and depth;
• mounting-hole positions;
• mating-face dimensions;
• distances between functional interfaces.

Inspection can then focus on the drawing-defined features that affect assembly.

This is more meaningful than simply describing the component as a “high-precision nylon part” without explaining which dimensions are actually critical.

Custom Plastic CNC Machining Services

YS Precision provides custom plastic CNC machining services for parts manufactured from customer 3D CAD models and 2D technical drawings.

Our engineering plastic machining capabilities include:

Nylon / PA, POM / Delrin, PEEK, PEI, PC / Polycarbonate, ABS, PMMA and PTFE.

Typical custom CNC machined plastic parts include mounting blocks, mechanical interfaces, equipment housings, brackets, guides, insulating components and other functional parts.

Projects can range from prototypes to low-volume production, depending on the customer's requirements.

For each project, we review the combination of material, geometry, critical tolerances and assembly interfaces rather than applying the same machining approach to every plastic component.

Plastic CNC Machining for Medical Equipment

Medical equipment can require many different types of custom engineering plastic parts.

This nylon component is a good example of a part where the manufacturing focus is not cosmetic appearance. The important areas are concentrated around the circular locating geometry, bore, threaded connection and mounting pattern.

That gives the project a very different machining requirement from an external plastic housing or appearance prototype.

YS Precision supports plastic CNC machining services for medical, laboratory and precision equipment components, manufactured according to customer drawings and material specifications.

Request a Quote for Custom CNC Machined Plastic Parts

If you are sourcing nylon CNC machining, custom plastic CNC machining services or CNC machined engineering plastic parts, send us your drawings for review.

For quotation, please provide:

3D CAD + 2D Drawing + Material Grade + Quantity + Critical Tolerances + Thread Specifications

If certain bores, threads, locating surfaces or mounting positions control the final assembly, please identify them clearly on the drawing.

YS Precision manufactures custom CNC machined nylon parts and functional plastic components for overseas engineering and purchasing teams, including projects supplied to Germany and other European markets.
