POM CNC Machining for Custom Plastic Gears and Motion Components

Custom plastic gears are not only about the teeth. The center bore, hub, locating surfaces and mating features all affect how the component runs once it is installed in the mechanism.

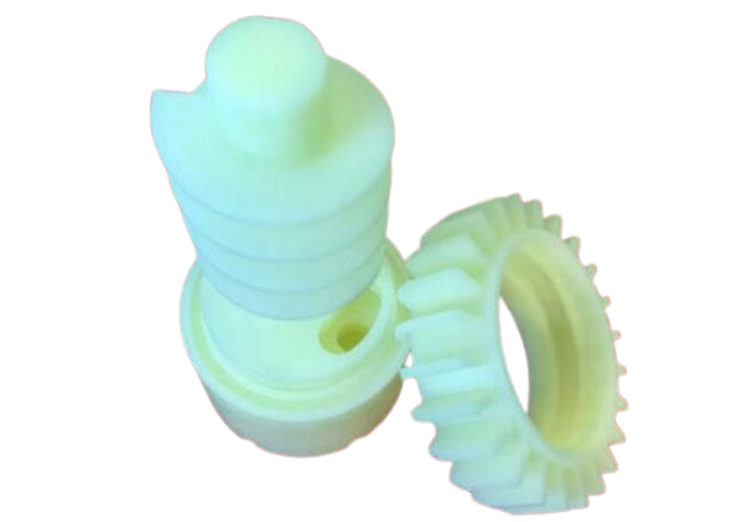

This project involved a set of POM gear and motion components CNC machined for electronic equipment from customer-supplied 3D CAD data and technical drawings.

The parts combine gear teeth, bores, cylindrical sections and other functional features. For components like these, the real test is not appearance—it is whether the parts locate correctly, engage with each other and move as intended.

Project Overview

A Plastic Gear Is More Than Its Teeth

The teeth may be the most obvious feature, but they are only one part of the component.

The bore establishes the rotational position. A hub or shoulder may locate the gear within the assembly. The teeth then transfer movement to another gear or mating component.

In other words, these features work as a chain:

Bore → Rotational Axis → Hub / Location → Gear Teeth → Mating Part

For custom plastic gear machining, keeping these relationships correct can be more important than applying unnecessarily tight tolerances to every dimension.

If a bore or locating diameter is critical to the mechanism, that feature deserves particular attention. Other dimensions can follow the tolerances specified on the customer's drawing according to their actual function.

POM Works Well for Moving Plastic Parts

POM (Polyoxymethylene), also known as acetal, is commonly used for gears and other moving mechanical components.

It offers a useful combination of dimensional stability, low friction, wear resistance and machinability. This makes it suitable for components such as gears, rollers, bushings, guides and pulleys used inside electronic and mechanical equipment.

For CNC machining, POM also produces good functional surfaces when the cutting conditions are properly controlled.

The exact material grade should always follow the customer's specification. POM should not automatically be called Delrin®—Delrin is a specific branded acetal material rather than a generic name for all POM grades.

Machining the Gear Around Its Rotational Axis

Gear geometry is different from a conventional plastic cover or block.

The teeth repeat around the circumference and share the same rotational reference. At the same time, the part may contain a center bore, hub, shoulder or other features that need to remain correctly positioned relative to the gear.

This makes the relationship between features important during machining.

POM machines well, but it still behaves differently from metal. Cutting heat, tool condition and part support need to be considered, especially around smaller teeth and thinner sections.

Unwanted burrs, rough tooth edges or local deformation are not simply cosmetic issues—they may affect how the gear interacts with another component.

For POM CNC machining, the goal is a functional part, not just a clean-looking machined surface.

Two Parts Have to Work Together

These components belong to the same mechanism, so checking them separately only tells part of the story.

Dimensional inspection can confirm whether an individual component follows the drawing. When required, mating parts can also be put together to check engagement, movement and obvious interference.

This is particularly useful during prototype development.

A physical set of CNC machined plastic gears allows the engineering team to answer a very practical question:

Do these parts actually work together?

If the first build shows that a bore, locating feature or mating relationship needs adjustment, the CAD model can be revised before the next batch is machined.

That is one reason CNC machining is useful for custom gear designs that are still being tested.

CNC Machining Custom Plastic Gears in Low Volumes

Not every gear inside an electronic device is a standard catalog part.

Some designs need a specific outside profile, bore, hub or locating feature to fit the available space and surrounding mechanism.

For prototype and low-volume requirements, plastic gear CNC machining allows these custom components to be made directly from CAD data without starting with production tooling.

This approach is useful for:

• engineering prototypes;
• mechanism testing;
• design verification;
• low-volume custom gears;
• pre-production components.

Design changes can also be introduced into the CAD model before another machining batch is produced.

Custom POM CNC Machining Services

YS Precision provides POM CNC machining services and custom plastic gear machining based on customer 3D CAD models and technical drawings.

Typical functional plastic parts include custom gears, gear wheels, rollers, pulleys, bushings, sleeves, hubs, spacers, guides and other motion or transmission components.

In addition to POM / Acetal, we machine engineering plastics including Nylon, ABS, PC / Polycarbonate, PEEK, PEI, PTFE, PMMA and PP.

For projects involving several mating components, customers can also provide assembly CAD so that important locating and mating relationships can be understood before machining.

Send Us Your Plastic Gear Drawings

If you are looking for a supplier for custom plastic gears, CNC machined POM parts or plastic transmission components, send us your drawings for review.

For a faster manufacturing review, please provide:

3D CAD + 2D Drawing + Material Grade + Quantity + Critical Dimensions + Gear Specifications + Mating Requirements

For components that work as a set, assembly data is also helpful.

YS Precision supports POM CNC machining, custom plastic gear machining and low-volume functional plastic components for electronic, automation and mechanical equipment projects worldwide.
