Precision Stainless Steel CNC Turned Hardware for Electronic Equipment

Small hardware can play an important role inside an electronic assembly.

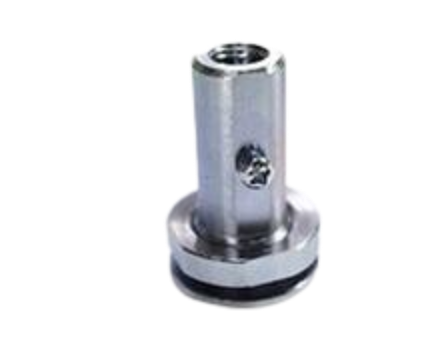

This custom stainless steel CNC turned component is manufactured for electronic equipment and supplied to a customer in the United States. The part is approximately 30 × 10 mm, with a typical production quantity of around 10,000 pieces per batch.
Its geometry combines several features within a compact body: a cylindrical upper section, a wider bottom flange, an axial opening and a transverse M3 threaded hole. The main profile is produced by CNC turning, while the side thread requires drilling and tapping from another direction.
For this type of part, the manufacturing focus is not simply producing a round component. The turned diameters, flange, internal feature and side thread all need to work together in the customer's assembly.


Part & Production Details

This is a made-to-drawing component rather than a standard fastener. Dimensions, threads and functional features are manufactured according to the customer's engineering requirements.


Four Features Define This Small Turned Component

The part is only about 30 mm long, but four features shape the machining strategy.
The cylindrical body establishes the main turned geometry.
The wider bottom flange creates a shoulder and a larger seating surface.
The axial opening adds an internal machining feature along the turning axis.
The M3 side thread introduces a second machining direction.
Looking at these features together is more useful than treating the part as a simple cylindrical blank.
For electronic equipment hardware, the relationship between mating and locating features can be important to assembly. The machining sequence therefore follows the complete component geometry and the customer's drawing.


The Flange May Be More Important Than It Looks

The larger base is one of the most distinctive features visible on this part.
On custom mechanical hardware, a flange can act as a seating, locating or supporting surface. This means the shoulder between the upper body and the flange may have a functional role within the assembly.
CNC turning is well suited to establishing these concentric external features.
The body diameter, shoulder and flange can be machined around the same rotational axis, helping maintain the dimensional relationships specified on the drawing.
This is a good example of why precision CNC turning is not only about holding an individual diameter—it is also about producing related rotational features as a controlled geometry.


The M3 Side Thread Requires a Second Machining Direction

The transverse M3 threaded hole changes the process.
It cannot be produced by conventional turning alone because its axis is perpendicular to the main body. After the rotational features are established, the side hole requires drilling and tapping.
Depending on the production setup, this can be completed with suitable driven tooling or through a planned secondary operation.
For a 10,000-piece order, the process needs to keep the thread consistent without creating unnecessary handling.
The pilot hole, tapping parameters, chip removal and tap condition all influence the finished thread.
Where required by the drawing or inspection plan, appropriate thread gauges can be used to verify thread functionality.
The practical requirement is simple: the mating M3 screw should assemble correctly when the hardware reaches the customer's assembly line.


Stainless Steel Needs Different Process Control Than Aluminum or Brass

This project also has a different machining character from the aluminum and brass turned parts we manufacture.
Stainless steel generally creates higher cutting loads and requires more attention to cutting conditions and tool wear than free-machining brass or aluminum.
That matters when the batch reaches approximately 10,000 pieces.
Tool condition can influence dimensions, edge quality and machined surface condition as production continues. Cutting parameters and tooling therefore need to be suitable not only for producing the first part, but for maintaining a stable process throughout the run.
For stainless steel CNC turning, repeatability depends on controlling the machining process as tooling accumulates cutting time.


M3 Threading Also Brings Burr Control Into the Process

The side hole is small, but the edges around it still matter.
Drilling and tapping through the cylindrical body can leave burrs or sharp edges at the hole entrance. These may interfere with screw engagement, handling or assembly even when the main turned dimensions are correct.
Deburring is therefore considered part of the manufacturing route.
The aim is to remove unwanted edges while avoiding excessive manual finishing around the threaded feature.
For 10,000 pieces, this finishing operation also needs to be consistent rather than dependent on individual manual judgment from part to part.


Production Parts Need to Arrive Ready for the Next Operation

For a production buyer, dimensional inspection is only part of the requirement.
A component can measure correctly and still create problems if a thread is difficult to engage, a burr remains around a side hole, or a functional seating surface is damaged during handling.
For this reason, we look at small hardware from the perspective of the customer's next operation.
Depending on the drawing and project requirements, production control can include first-piece verification, in-process inspection and outgoing inspection.
For this component, attention can be directed to the features identified as important on the customer's drawing rather than applying an unnecessarily complex inspection plan to every dimension.
The goal is to ship parts that are ready to move into the customer's assembly process.


Precision CNC Turning Services for Custom Hardware

YS Precision provides precision CNC turning services for made-to-drawing hardware used in electronic equipment, automation and industrial applications.
Typical components include:

• Flanged turned parts
• Stainless steel hardware
• Threaded components
• Pins and locating parts
• Bushings and sleeves
• Spacers
• Small shafts
• Components with axial holes
• Parts with cross holes or side threads
• Turned parts requiring secondary machining

Depending on the geometry and production quantity, manufacturing can involve CNC turning, CNC lathe machining, Swiss-type CNC turning, turn-mill machining, drilling, tapping or secondary milling.
We machine stainless steel, aluminum, brass, copper, carbon steel and engineering plastics according to customer drawings.


Have a Stainless Steel Turned Part to Source?

If you are comparing a CNC turning manufacturer or CNC turning supplier, send us the information that defines the actual production requirement:

• 2D drawing and/or 3D model
• Stainless steel grade
• Required quantity
• Critical tolerances
• Thread specifications
• Surface requirements
• Inspection requirements
• Estimated repeat or annual demand

For a component like this, we review the turned body, flange, internal features and M3 side thread together before determining the machining route.
YS Precision supports prototypes, small batches and repeat production of custom CNC turned parts for electronic and industrial equipment.
Send your drawings and quantity for a manufacturing review and quotation.
