Custom CNC Machined 6061-T6 Aluminum Parts | Precision Aluminum CNC Machining Service

Complex Aluminum Components Manufactured with Precision CNC Machining

This project demonstrates our ability to manufacture custom CNC machined aluminum components with complex structures, multiple machining features, and consistent production quality.

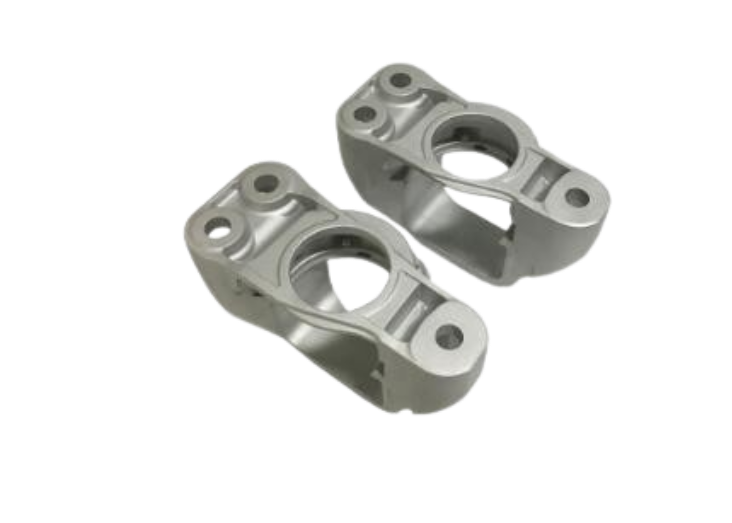

Manufactured according to customer-provided 3D models and 2D drawings, this 6061-T6 aluminum component was produced for electronic equipment used in the livestock industry. The part size is approximately 60 × 20 mm, with a production quantity of around 1,000 pieces.

Although the component is compact, the design includes multiple functional features requiring accurate machining, stable positioning, and reliable surface finishing.

The manufacturing requirements included:

• Complex CNC milling operations
• Stable dimensional control
• Multiple machining features
• Sand blasting surface treatment
• Silver anodizing finish

The finished components were exported to the United States for integration into the customer's electronic equipment.

Project Overview

Precision CNC Machining of Complex 6061-T6 Aluminum Parts

6061-T6 aluminum is widely selected for precision machined components because it provides a balanced combination of:

• Excellent machinability
• Lightweight performance
• Mechanical strength
• Corrosion resistance
• Good anodizing capability

For this component, the main challenge was not the material itself, but the combination of multiple machining features within a small structure.

The part includes:

• Circular openings
• Multiple mounting holes
• Curved transitions
• Internal machining areas
• Different reference surfaces

These features require careful process planning to ensure proper assembly performance after machining.

Our engineering team optimized:

• CNC machining sequence
• Fixture positioning
• Tool path planning
• Inspection points

to achieve stable and repeatable production results.

Manufacturing Challenges of Small Complex Aluminum Components

Small aluminum components with complex geometries often require more process control than simple machined parts.

During production, attention was given to:

• Maintaining accurate feature locations
• Reducing variation between machining operations
• Protecting machined surfaces
• Ensuring repeatability during batch production

Because the component has limited clamping areas and multiple machining surfaces, proper fixture design and machining sequence were important factors in achieving consistent quality.

By optimizing the manufacturing process, we helped maintain stable results throughout production.

Sand Blasting and Silver Anodizing for Aluminum Components

After CNC machining, the aluminum components received:

Sand Blasting + Silver Anodizing

This finishing combination provides:

• Uniform matte appearance
• Improved corrosion resistance
• Better surface protection
• Professional industrial appearance

For equipment components used in agricultural and industrial environments, surface durability is important due to possible exposure to moisture, dust, and daily operation conditions.

The finishing process was carefully controlled to maintain consistent appearance and protect the aluminum surface before final assembly.

Quality Control from CNC Machining to Final Delivery

For custom CNC machined parts, quality control needs to cover the complete manufacturing process.

Inspection included:

• Material verification
• Critical dimension checking
• Feature position inspection
• Surface appearance inspection
• Anodizing quality review

Since the parts were exported internationally, finished components were carefully handled and packaged to prevent scratches or surface damage during transportation.

By managing machining, finishing, inspection, and export packaging together, we help customers simplify supplier coordination and improve project reliability.

Custom Aluminum CNC Machining Based on Customer Drawings

Many equipment manufacturers require customized aluminum components designed specifically for their products.

We manufacture parts based on customer-provided:

• 3D CAD models
• 2D engineering drawings
• Material specifications
• Surface finishing requirements

Our engineering team supports customers with:

• Manufacturing feasibility review
• CNC process optimization
• Surface treatment coordination
• Production planning

This allows customers to move from product development to production with a reliable manufacturing partner.

Precision CNC Machining Service for Custom Aluminum Components

We provide custom CNC machining services for customers requiring:

• CNC machined aluminum parts
• Precision aluminum brackets
• Electronic equipment components
• Industrial equipment parts
• Custom mechanical components

Our services include:

• CNC milling
• Aluminum machining
• Surface finishing
• Quality inspection
• Export packaging

From prototype quantities to production orders, we support customers with complete manufacturing solutions based on their drawings and requirements.

Looking for Custom CNC Machined Aluminum Parts?

If you need custom CNC machined aluminum parts, 6061-T6 aluminum components, or precision CNC brackets, our engineering team can review your drawings, evaluate manufacturability, and recommend a suitable machining solution.

We support projects from initial design review through CNC machining, surface finishing, inspection, and final delivery
