7075 Aluminum Robotic Components | Custom Precision CNC Machining Service

High-Precision CNC Machining for Robotic End Effectors and Automation Systems

We provide custom precision CNC machining services for robotic and automation components requiring high accuracy, lightweight structures, and consistent production quality.

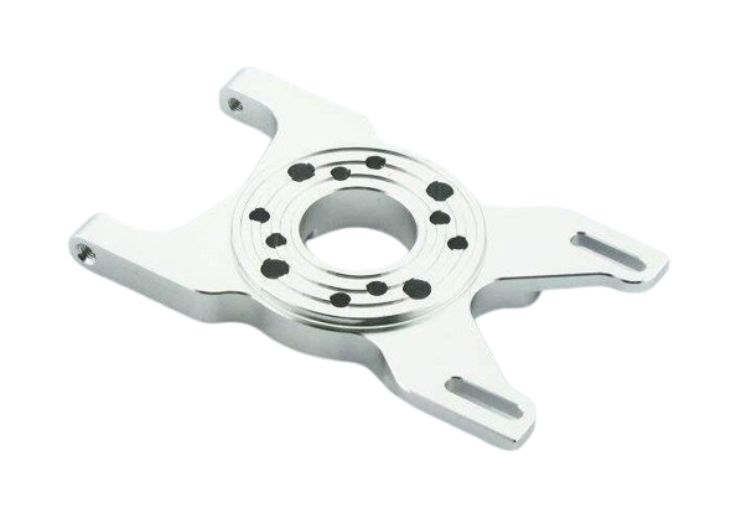

This project involved manufacturing a 7075 aluminum robotic end effector component based on customer-provided 3D CAD models and 2D engineering drawings.

The component was designed for a robotic gripping system and required precision machining of complex profiles, mounting features, and critical holes with tolerances up to ±0.01 mm.

With an approximate size of 280 × 120 mm, the lightweight structure was designed to reduce moving weight while maintaining sufficient rigidity for repeated robotic operation.

A production quantity of approximately 300 sets was completed, inspected, and exported to the United States for integration into the customer's robotic system.

Project Overview

Precision CNC Machining of 7075 Aluminum Robotic Components

7075 aluminum is often selected for high-performance mechanical components where strength, rigidity, and weight reduction are important.

Compared with general aluminum alloys, 7075 provides:

• Higher mechanical strength
• Better structural rigidity
• Excellent strength-to-weight ratio
• Good fatigue resistance

For robotic applications, reducing moving mass while maintaining mechanical stability is critical.

The machining process for this component focused on maintaining:

• Dimensional accuracy
• Hole position relationships
• Structural integrity
• Repeatable assembly performance

CNC Machining Challenges of Robotic End Effector Parts

Robotic end effectors operate through repeated movement cycles, meaning even small dimensional variations can influence:

• Gripping accuracy
• Assembly alignment
• Motion repeatability
• Equipment performance

This component required careful control of several critical features.

Precision Hole Machining

Some functional holes required accuracy up to:

±0.01 mm

These precision features directly affect:

• Mounting accuracy
• Component alignment
• Repeatable positioning

Lightweight Complex Structure Machining

The three-arm structure shown in this component is designed to reduce weight while maintaining sufficient strength.

During CNC machining, attention was required to control:

• Material removal balance
• Machining vibration
• Part deformation
• Dimensional stability

Our engineering team optimized:

• Fixture design
• CNC machining sequence
• Cutting parameters
• Inspection procedures

to maintain consistent production quality.

Custom Robotic Components Manufactured from Customer Drawings

Robotics companies usually require components designed specifically for their own equipment and applications.

We manufacture customized robotic parts according to:

• 3D CAD models
• 2D engineering drawings
• Material specifications
• Functional requirements

Before production, our engineers review:

• Manufacturing feasibility
• Critical dimensions
• Tool accessibility
• Potential machining risks

This helps ensure the final components meet both mechanical and assembly requirements.

Production Capability for Precision Robotic Components

For robotic and automation customers, consistent production quality is essential because components need to perform reliably during repeated operation.

Our manufacturing process focuses on:

• Process optimization before machining
• Stable fixture setup
• Critical dimension control
• Batch-to-batch consistency
• Surface protection during handling

This allows us to support both prototype development and production manufacturing for precision robotic components.

Surface Finishing for CNC Machined Aluminum Robotic Parts

After CNC machining, aluminum robotic components can be completed with different finishing options according to customer requirements.

Common surface treatments include:

• Anodizing
• Sand blasting
• Protective coatings

Surface finishing helps improve:

• Corrosion resistance
• Surface durability
• Appearance consistency

For precision robotic components, finishing processes are carefully controlled to maintain functional dimensions.

Quality Control for High-Precision CNC Machined Parts

Robotic components require reliable quality because they directly affect system performance.

Quality control includes:

• Material verification
• Critical dimension inspection
• Precision hole measurement
• Feature position checking
• Final inspection before shipment

For production quantities, process control ensures consistent performance from the first component to the final batch.

Custom CNC Machining Service for Robotics and Automation

YS Precision provides custom CNC machining services for customers requiring:

• Robotic end effector components
• CNC machined aluminum parts
• Precision automation components
• Lightweight mechanical structures
• Custom industrial components

Our capabilities include:

• CNC milling
• Multi-axis CNC machining
• 7075 aluminum machining
• Precision hole machining
• Surface finishing
• Quality inspection
• Export packaging

We support customers from engineering review through production delivery.

Why Choose YS Precision for Robotic CNC Machining?

Precision robotic components require more than simply machining a part according to a drawing.

They require understanding:

• Functional requirements
• Assembly relationships
• Weight considerations
• Precision control

YS Precision focuses on engineering-driven manufacturing, including:

• Drawing review
• Process planning
• CNC machining optimization
• Quality control

Our goal is to help customers produce reliable robotic components with stable performance.

Looking for Custom CNC Machined Robotic Components?

If you need custom CNC machined robotic components, 7075 aluminum CNC parts, or precision automation equipment components, our engineering team can review your drawings and recommend a suitable manufacturing solution.

From:

CAD Review → CNC Machining → Inspection → Surface Finishing → Export Delivery

we provide complete support for customized precision components.
