CNC Machined 6061-T6 Aluminum Components with Hard Coat Anodizing and PTFE Coating

Precision Aluminum CNC Machining Solution for Wear-Resistant Automation Equipment Parts

We provide custom CNC machining services for automation equipment manufacturers requiring precision aluminum components with controlled dimensions and specialized surface treatments.
This project involved manufacturing a CNC machined 6061-T6 aluminum component designed for an industrial automation application.
Unlike standard aluminum machining parts, this component required both precision manufacturing and enhanced surface performance through:
Hard Coat Anodizing (Type III) + PTFE (Teflon) Coating
The combined process was selected to improve:

• Surface wear resistance
• Low-friction performance
• Corrosion protection
• Long-term operational durability

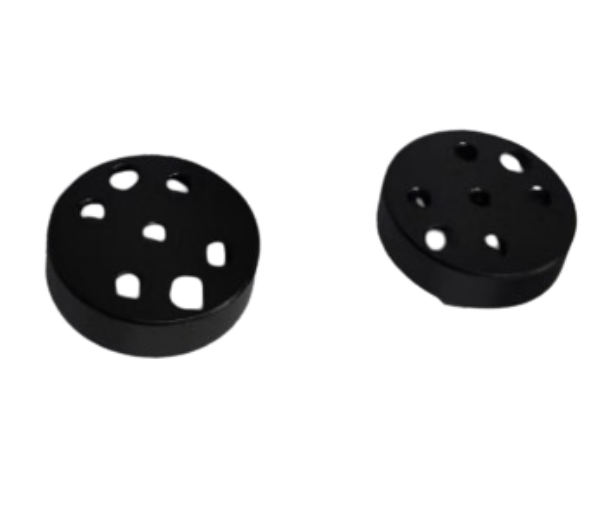

The component features a cylindrical structure with multiple precision holes and functional contact areas.
With an approximate size of 180 × 180 × 45 mm, approximately 600 pieces were manufactured, surface treated, inspected, and exported to the Middle East for integration into automation equipment.


Project Overview

Precision CNC Machining of 6061-T6 Aluminum Components

6061-T6 aluminum is widely used for industrial mechanical components because it provides an excellent balance of:

• Machinability
• Mechanical strength
• Dimensional stability
• Corrosion resistance
• Surface finishing compatibility

For this automation component, the manufacturing requirement was not only achieving the correct geometry but also ensuring reliable performance after surface treatment.
The CNC machining process focused on:

• Accurate feature positioning
• Stable component dimensions
• Proper surface preparation
• Consistent production quality

During process planning, our engineering team considered the complete manufacturing sequence, including machining conditions, finishing requirements, and final application performance.


Hard Coat Anodizing and PTFE Coating for Improved Surface Performance

The main feature of this project was the combination of CNC machining with specialized surface finishing.
The component required:

Hard Coat Anodizing (Type III)

Hard Coat Anodizing creates a thicker and harder oxide layer on aluminum surfaces.
Key advantages include:

• Increased surface hardness
• Improved abrasion resistance
• Enhanced corrosion protection
• Better durability under repeated operation

This process is commonly used for aluminum components exposed to demanding industrial environments.


PTFE (Teflon) Coating for Low-Friction Applications

PTFE coating provides a smooth surface with excellent friction-reduction characteristics.
Benefits include:

• Reduced friction during movement
• Improved sliding performance
• Reduced surface adhesion
• Better release properties

For automation equipment, PTFE coating can help improve operating stability where components experience repeated contact or movement.


Surface Treatment Process Control for CNC Machined Aluminum Parts

For aluminum components requiring Hard Coat Anodizing and PTFE Coating, machining and finishing processes must be carefully coordinated.
The manufacturing process considered:

Machining Allowance

Surface treatments add a controlled coating layer, so critical dimensions need to be considered before finishing.

Surface Preparation

The CNC machined surface condition directly affects coating consistency and final appearance.

Functional Requirements

Machining, anodizing, and PTFE coating need to work together to achieve the required durability and performance.
By controlling the complete process flow, we help customers receive finished components with consistent quality.


CNC Machining Challenges of Functional Automation Components

Although this component is not a large structural part, its application requirements make manufacturing control important.
The key challenges included:

Dimensional Consistency

The components needed to maintain stable dimensions throughout batch production.

Surface Quality Before Coating

Proper CNC machining quality was required to achieve reliable anodizing and PTFE coating results.

Production Repeatability

For approximately 600 pieces, every component needed to provide consistent performance after finishing.
To achieve stable production results, we optimized:

• CNC machining sequence
• Fixture setup
• Cutting parameters
• Inspection checkpoints

Custom Aluminum CNC Machining Based on Customer Drawings

Automation equipment manufacturers often require customized components based on specific machine designs and operating requirements.
YS Precision manufactures custom CNC machined aluminum parts according to:

• Customer 3D CAD models
• 2D engineering drawings
• Material specifications
• Surface treatment requirements

Our engineering support includes:

• Manufacturing feasibility review
• CNC process planning
• Surface finishing coordination
• Quality control planning

This allows customers to manage machining and finishing through one reliable manufacturing partner.


Quality Control for Precision CNC Machined Aluminum Components

For automation equipment parts, consistent quality is essential for long-term operation.
Our inspection process includes:

• Material verification
• Critical dimension measurement
• Hole and feature inspection
• Surface appearance inspection
• Final quality verification

After Hard Coat Anodizing and PTFE Coating, components are carefully handled and packaged to prevent surface damage during international transportation.


Custom CNC Machining Service for Automation Equipment Parts

YS Precision provides complete manufacturing solutions for:

• CNC machined aluminum components
• Automation equipment parts
• Precision mechanical components
• Hard coat anodized aluminum parts
• PTFE coated aluminum components
• Wear-resistant industrial components

Our capabilities include:

• CNC milling
• CNC turning
• Aluminum CNC machining
• Precision inspection
• Surface finishing
• Export packaging

From engineering review to production delivery, we support customers with reliable precision manufacturing services.


Why Choose YS Precision for Functional Aluminum Components?

Manufacturing automation components requires more than producing a part according to a drawing.
It requires understanding:

• How the component operates
• Which surfaces require additional protection
• How finishing processes affect dimensions
• How to maintain quality during production

YS Precision combines CNC machining experience with advanced surface finishing coordination to manufacture reliable aluminum components for demanding industrial applications.


Looking for PTFE Coated CNC Machined Aluminum Parts?

If you need custom CNC machined 6061-T6 aluminum components with Hard Coat Anodizing and PTFE (Teflon) Coating, our engineering team can review your drawings and provide a suitable manufacturing solution.
From:
Drawing Review → CNC Machining → Hard Coat Anodizing → PTFE Coating → Inspection → Export Delivery
we provide complete support for customized automation equipment components.
