Custom PP Injection Molding for Household Plastic Parts

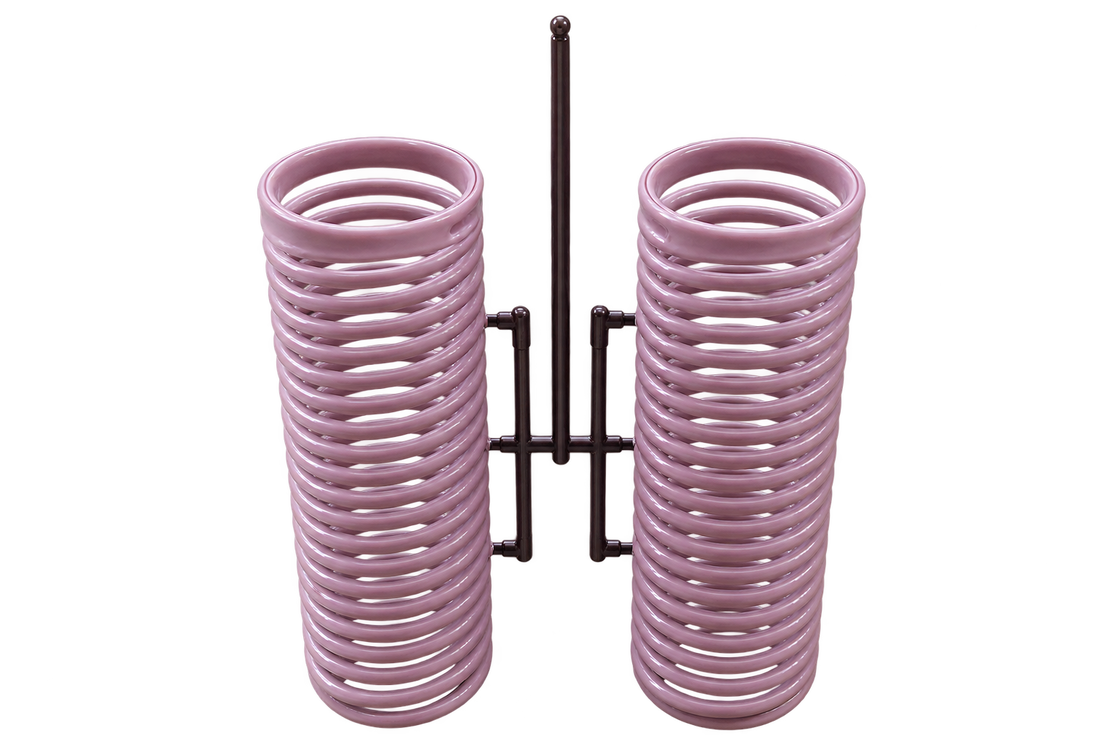

This PP household component has an open cylindrical structure formed by closely spaced circular ribs rather than conventional solid walls. The design keeps the part lightweight, but it also creates long, narrow flow paths that need to fill consistently during injection molding.

The product is manufactured for a customer in Italy using a custom two-cavity production mold. Two parts are molded per cycle, with the tooling developed around the rib structure, PP flow behavior and expected production demand.

For household products like this, the challenge is not simply whether the first sample can be molded successfully. The mold needs to reproduce the thin rib sections consistently while maintaining the intended part shape over regular production runs.

YS Precision provides custom plastic injection molding services for household and consumer products, from production tooling to ongoing batch manufacturing.

Project Overview

Why the Open Rib Structure Matters

The repeated circular ribs are the defining feature of this component.

Unlike a solid plastic housing, the melt has to travel through a network of relatively narrow interconnected sections. Each rib needs to form completely before the material cools enough to restrict further flow.

A short shot in only one section can leave an incomplete part even when the rest of the component looks acceptable.

This makes the relationship between rib geometry, material flow, gate position and processing conditions particularly important.

The mold therefore needs to be developed around how PP travels through the complete structure—not simply around the outside dimensions of the part.

Choosing PP for a Household Product

PP is widely used for molded household products because it combines low weight, toughness, chemical resistance and practical production economics.

For this component, flow behavior is especially relevant.

Different PP grades can vary in melt flow, stiffness, impact performance and shrinkage. A material suitable for a simple thick-wall product may behave differently when it needs to fill a large number of narrow rib sections.

For production projects, we therefore prefer to work from the specified PP grade rather than treating all polypropylene materials as interchangeable.

Where the resin has not yet been finalized, material selection should be considered together with the geometry and functional requirements of the product.

Getting the Rib Structure to Fill Consistently

Gate and runner design have a direct influence on this part.

Molten PP needs to reach the more distant rib sections while maintaining sufficient flow to complete the cavity. If the flow path is poorly arranged, relying on higher injection pressure alone may not provide a stable long-term solution.

During mold development, the main relationship is:

Gate Location → Flow Path → Rib Filling → Packing → Cooling

The aim is to establish a practical molding window where the repeated features can form consistently under normal production conditions.

This distinction matters because a production tool needs to run reliably over many cycles, not just produce a few acceptable samples.

Planning the Mold Around Production Demand

The number of cavities should match the expected production requirement rather than simply maximizing output.

For this project, a two-cavity mold allows two components to be produced during each molding cycle.

When evaluating a new production tool, we consider factors such as:

• part size and geometry;
• order quantity and annual demand;
• required production output;
• runner and gate arrangement;
• suitable molding machine;
• mold size and complexity;
• tooling investment;
• expected part cost.

More cavities can increase output, but they can also increase tooling complexity and initial investment. Too few cavities may reduce mold cost but make larger production orders less efficient.

The appropriate mold configuration depends on the economics of the actual program.

Keeping the Cavities Consistent

Producing two parts per cycle also means both cavities need to operate consistently.

During mold sampling and production setup, components from each cavity can be evaluated separately. This helps identify whether there are meaningful differences in filling or finished part condition.

For this ribbed component, relevant checks may include:

Complete Rib Formation · Flash · Overall Shape · Key Dimensions · Appearance · Cavity-to-Cavity Variation

If one cavity repeatedly behaves differently from the other, the cause should be addressed before regular production.

This is an important part of multi-cavity injection molding: additional cavities create production value only when they can deliver consistent parts.

Managing PP Shrinkage and Finished Part Shape

PP shrinks as it cools, and the open construction of this component makes the finished shape worth considering.

Instead of relying on continuous walls for rigidity, the cylindrical body is formed by many ribs and connecting sections. Local differences in thickness can also affect how individual areas cool.

Packing, mold temperature and cooling conditions therefore need to be established using actual molded parts.

Where roundness, straightness or another dimension affects assembly or product function, the requirement should be identified on the customer's 2D drawing.

This allows production and inspection to concentrate on meaningful dimensions rather than applying unnecessarily tight control to every feature.

Moving from Mold Approval into Batch Production

Once the tooling and molded parts are approved, the project moves into regular batch injection molding.

At this stage, production efficiency and consistency need to work together. The rib structure should remain completely formed, part shape should remain stable, and the process should continue running under established conditions throughout the order.

For subsequent orders, the approved mold can be used again without restarting tooling development.

This gives the customer a straightforward manufacturing route from production mold development into ongoing plastic parts production.

The finished PP components for this project are supplied to Italy.

Injection Molding Support for Household and Consumer Products

YS Precision manufactures custom plastic parts from customer 3D CAD and 2D drawings.

For household and consumer product programs, our plastic injection molding services can include:

DFM Review · Production Mold Manufacturing · Mold Sampling · PP Injection Molding · Multi-Cavity Tooling · Batch Production

The tooling approach is evaluated according to the actual part rather than applying the same mold configuration to every project.

Geometry, resin grade, order quantity and expected annual demand are considered together so that the mold makes sense for both the product and its future production requirements.

Planning a New Injection Molded Product?

To review a new project, please provide:

3D CAD + 2D Drawing + Material/Grade + Color + Order Quantity + Annual Forecast + Critical Dimensions + Appearance Requirements

For household products intended for regular production, the expected annual quantity is particularly useful. It helps us evaluate the mold configuration, required output and tooling approach before quotation.

The result should be a production solution that fits both the component design and the quantities you actually need to manufacture.
