PP Injection Molding for Consumer Plastic Parts

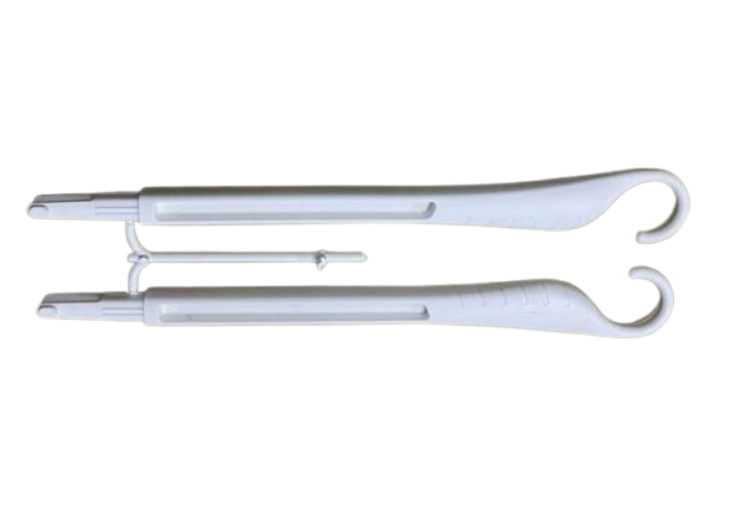

This PP consumer plastic part is approximately 260 mm long and 20 mm wide, with a slender body, a longitudinal reinforcing section and a large curved feature at one end. The proportions make it a different molding job from a typical plastic housing or compact component.
The part is produced by injection molding for a customer in the United States. With a long, narrow geometry like this, the main production concerns are mold filling, straightness after cooling, structural stiffness and the performance of the curved end.
YS Precision manufactures custom injection molded plastic parts from customer 3D CAD and 2D drawings. For this type of component, we review the geometry, resin specification and functional requirements together before finalizing the production tooling.


Project Details

A Long Plastic Part Starts with the Flow Path

At approximately 260 mm long but only 20 mm wide, this component has a relatively high length-to-width ratio.
Molten PP needs to travel through the narrow cavity before the entire part is formed. As the flow front moves farther from the gate, it gradually loses temperature and pressure. Thin sections and changes in cross-section can make the remaining flow path more difficult to fill.
This makes gate location, wall thickness and flow direction important during mold development.
For a long injection molded plastic part, the aim is not simply to achieve one complete sample. The cavity needs to fill reliably within a practical processing window that can be maintained during production.


Straightness Matters Over 260 mm

A completely filled cavity can still produce an unacceptable part.
PP shrinks as it cools. On a long, slender component, uneven packing or cooling can show up as bowing or twisting after ejection. Even a relatively small amount of distortion becomes more noticeable over a 260 mm length.
The customer's 2D drawing therefore plays an important role in defining what actually needs to be controlled.
If straightness, end position or another dimensional relationship affects assembly or use, it should be identified as a critical requirement. This allows tooling, process adjustment and inspection to focus on the dimensions that matter to the finished product.


Adding Stiffness Without Excess Wall Thickness

The longitudinal feature running along the body helps reinforce the slender structure.
Simply making the complete part thicker would add material and increase cooling time. It could also create heavier sections that cool and shrink differently from the surrounding geometry.
A reinforcing feature can provide stiffness more efficiently, but its proportions still matter.
If the transition into the main wall is too heavy, it may contribute to sink or uneven shrinkage. If it is too light, it may not provide enough reinforcement.
During plastic part DFM review, we look at these features from both a molding and functional perspective rather than treating them only as CAD geometry.


The Curved End Has a Functional Role

The large C-shaped end is the most distinctive feature of this part.
Its exact function should be confirmed from the customer's design—it may work as a holder, hook or retaining section. If the feature needs to flex during use, both its geometry and the selected PP grade influence how it behaves.
Several factors work together:

Material Grade → Section Thickness → Opening Geometry → Stiffness and Flexibility
Making the section thicker may increase rigidity but reduce flexibility. A thinner section may move more easily but provide less holding strength.
Where this feature interacts with another component, checking molded samples with the mating part can provide more useful information than dimensional measurement alone.


Selecting the PP Grade Around the Application

PP is commonly used for injection molded consumer products because it offers low weight, good toughness, chemical resistance and economical production.
However, the material should not be defined only as "PP" when functional performance matters.
Different polypropylene grades can vary in melt flow, stiffness, impact performance and shrinkage. Those differences are relevant here because the material needs to fill a long cavity while also providing the required behavior at the curved end.
Where the customer has specified a particular resin grade, production follows that requirement. If material selection is still open, the intended use of the component should be considered together with its geometry before the final grade is selected.


Cooling and Ejection Can Affect Final Shape

Cooling is another important consideration for a long molded component.
The main body, reinforcing section and larger curved end do not have identical cross-sections, so they may cool at different rates. Ejecting the part while it is still too warm can also make a slender component more susceptible to deformation.
The molding process therefore needs to balance:

Filling → Packing → Cooling → Ejection → Final Shape
For production, the shortest possible cycle is not always the lowest-cost solution. If a faster cycle increases warpage or rejected parts, the apparent time saving can disappear quickly.
A stable cycle that maintains the required part geometry is more valuable for repeat production.


Checking the Part Before Batch Production

Once molded samples are available, the component can be evaluated against the drawing and its actual function.
For this part, relevant checks may include:

• complete filling along the full length;
• overall straightness;
• formation of the reinforcing feature;
• curved-end geometry;
• drawing-defined critical dimensions;
• visible surface condition;
• fit with a mating component, where required.

Not every molded dimension needs the same level of control.
For a functional consumer plastic part, inspection should concentrate on the characteristics that affect assembly, appearance or use. This provides a more practical basis for production than applying unnecessarily tight tolerances across the complete drawing.


Batch Injection Molding for Consumer Plastic Parts

After the mold and samples meet the agreed requirements, the project can move into batch injection molding production.
The production focus is then on maintaining the approved condition: complete filling along the long body, stable overall shape and consistent functional geometry.
Inspection requirements can follow the critical dimensions and appearance criteria defined for the project. The approved tooling can then continue to support subsequent production orders.
The finished PP parts for this project are manufactured for the U.S. market.
