Injection Molding for Water Treatment Plastic Parts

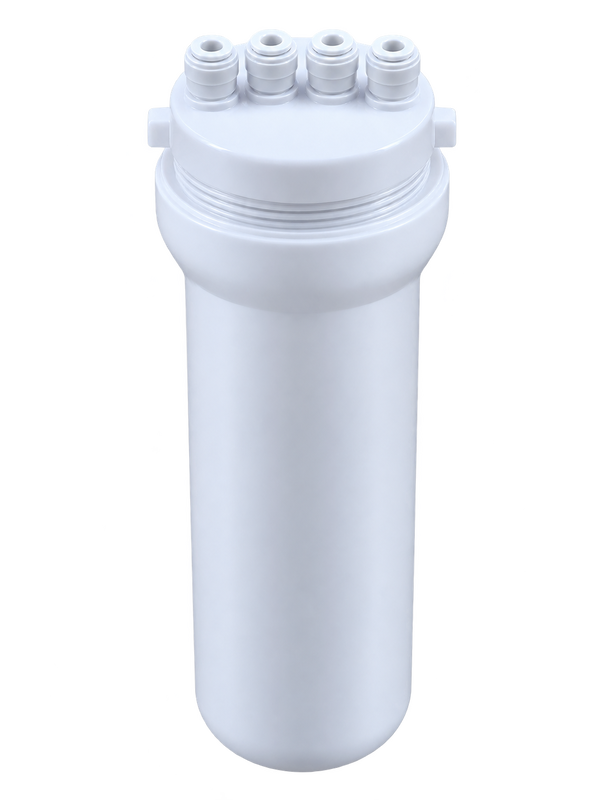

Water treatment equipment often uses plastic parts that combine several connections and assembly features in one molded component. The white PP part shown here has a long cylindrical body, a stepped circular end and four molded ports positioned on the front face. Rather than serving as an exterior cover, it is a functional component designed to become part of a larger equipment assembly.

This part is produced for a customer in Italy using a custom injection mold. The project calls for repeatable batch production, so the manufacturing work goes beyond making a few acceptable samples. The mold, material and molding process need to maintain the relationship between the main body, circular end features and smaller ports from one production run to the next.

YS Precision provides custom plastic injection molding and batch manufacturing services for customer-designed plastic components used in water treatment and industrial equipment.

Project Details

Four Small Ports Can Matter More Than the Main Body

The cylindrical body occupies most of the volume of this part, but it may not contain the dimensions that matter most during assembly.

The four smaller ports at the end are different.

Their diameters, spacing and position relative to the circular body can affect how the molded component connects with other parts of the equipment. This makes them important manufacturing features even though they represent only a small portion of the overall plastic volume.

For a component like this, we would rather understand which dimensions affect the equipment assembly than simply apply the same tolerance expectations across the complete drawing.

That distinction becomes particularly useful in batch production, where inspection needs to be practical as well as meaningful.

The Circular End Is an Assembly Interface

The front of the component is built around several stepped circular features.

These concentric sections appear to form an interface between the cylindrical body and other equipment components. Their finished dimensions therefore need to be considered together rather than as unrelated diameters.

PP naturally shrinks during cooling, and the larger body does not necessarily cool in exactly the same way as the smaller port features. The production mold has to account for the material behavior so that the finished geometry falls within the drawing requirements.

Where the customer identifies mating diameters or other assembly-critical dimensions, those areas become the focus during mold sampling and production inspection.

This is especially relevant for injection molded water treatment parts, where several plastic features may need to work together in the final equipment.

Why PP Works Well for This Type of Component

White PP is used for this project.

For water treatment equipment, polypropylene is a practical molding material because it offers good resistance to water and many chemicals while remaining lightweight and suitable for economical repeat production.

From a manufacturing perspective, PP also allows relatively complex features to be integrated into one molded component.

That is useful here. Instead of producing the cylindrical body and four connection features separately and then assembling them, the design incorporates them into a single injection molded part.

The specific PP grade should still follow the customer's specification, since different grades can vary in stiffness, melt flow and shrinkage.

One Molded Part Can Reduce Secondary Assembly

One of the advantages of this design is the amount of geometry incorporated into a single component.

The main cylinder, stepped end structure and four ports are all part of the same molded piece.

For a production program, integrating functional geometry can reduce the number of separate plastic parts that need to be manufactured, handled and assembled.

It also makes the mold more important.

Port geometry, wall transitions, molding direction and release conditions all need to work together. A local feature that looks straightforward in CAD may influence the tooling arrangement once draft, parting direction and ejection are considered.

For this reason, the final mold structure is determined from the customer's complete 3D model rather than from the outside appearance of the component alone.

Production Tooling Has to Work Beyond the First Samples

For customers buying molded parts in regular batches, the first successful sample is only the beginning of the manufacturing program.

A production injection mold needs to continue running after initial approval.

That means tooling decisions should consider not only part geometry but also molding repeatability, ejection and the features that require regular dimensional control.

Initial PP samples are checked against the agreed drawing. For this component, attention can be placed on areas such as:

Port Geometry · Port Position · Circular Mating Features · Overall Shape · Critical Dimensions · Surface Condition

If the molded part interfaces with another component supplied by the customer, actual fit can also be evaluated where required.

Once the part and tooling are approved, the project can move into scheduled production quantities.

Batch Injection Molding for Ongoing Production

YS Precision supports batch plastic injection molding for customers that need production quantities rather than only prototype samples.

For repeat orders, maintaining the approved molded condition becomes the priority.

Production checks can focus on the features identified as critical during the first production run. This gives subsequent batches a consistent reference instead of redefining requirements every time an order is placed.

Depending on the project demand, we can support small-batch injection molding, regular batch production and repeat manufacturing from the approved tooling.

For customers managing water treatment or industrial equipment programs, this provides one manufacturing route from mold development into ongoing parts supply.

Dimensional Control Should Follow the Assembly

Functional plastic parts do not necessarily benefit from putting very tight tolerances on every dimension.

For this component, the better approach is to understand where another part connects, which port dimensions influence fit and which circular features establish the assembly relationship.

The customer's 2D drawing provides the dimensional requirements, while the 3D CAD model gives the complete geometry needed for mold development.

Together, they allow manufacturing and inspection to concentrate on the characteristics that determine whether the molded component works correctly in the equipment.

This is particularly important once production quantities increase. Inspection needs to protect function without adding unnecessary control to non-critical areas.

Plastic Injection Molding for Water Treatment Equipment

YS Precision manufactures custom injection molded plastic parts for water treatment, fluid handling and industrial equipment applications.

Our production capabilities include custom injection mold manufacturing, PP injection molding, small-batch plastic molding and batch injection molding production based on customer drawings.

For multi-port or assembly-related components like this one, we pay particular attention to the relationship between molded features rather than treating the product as a simple plastic shape.

The white PP components in this project are manufactured for a customer in Italy.

For a new project, customers can provide the 3D CAD, 2D drawing, resin specification, color, order quantity, expected annual demand and critical assembly dimensions for tooling and production review.
