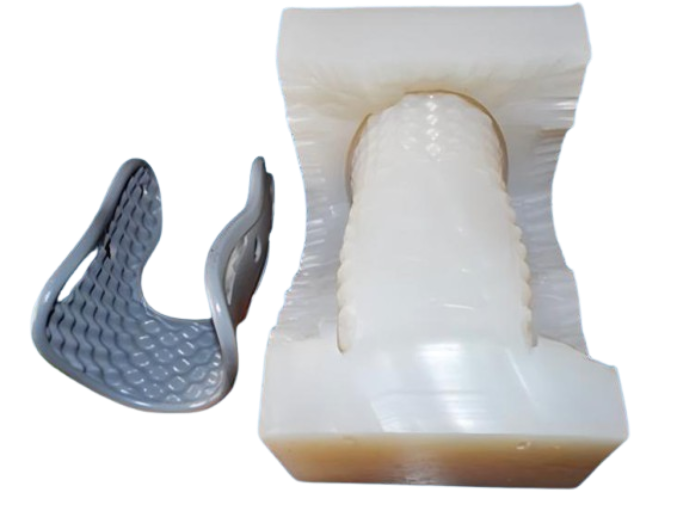

Vacuum Casting Parts for an Ergonomic Consumer Product

Small-Batch Functional Prototypes for Product Validation

This project involved the development of an ergonomic consumer product component with a curved three-dimensional profile, raised side structures, and a textured inner surface.

The customer required a small batch of approximately 10–20 pieces for product evaluation and testing. Since the product was still in the development stage, producing a production injection mold was not yet necessary.

Instead, the customer chose vacuum casting to manufacture a limited quantity of functional prototype parts.

The finished vacuum casting parts were inspected and exported to the customer for assembly, ergonomic evaluation, and product validation.

This approach provided the customer with enough physical samples to test the design while keeping the project at an appropriate prototype manufacturing stage.

Project Overview

A Consumer Product Designed Around Ergonomics

The component is shaped around an ergonomic application rather than a simple enclosure or structural housing.

Its geometry includes a curved central section, raised side areas, and a textured inner surface.

These features are important to the way the final product interacts with the user, making physical prototypes particularly useful during development.

With the vacuum casting samples, the customer could evaluate the actual physical part instead of relying only on CAD data.

The samples could be used to review:

• Overall ergonomic shape
• Contact areas
• Surface texture
• Physical fit
• Assembly relationships
• Clearances with surrounding components
• Handling characteristics
• Design details before production

For this type of consumer product, several of these factors can only be properly evaluated once a physical part is available.

Why Vacuum Casting Was the Right Choice

The required quantity was only around 10–20 pieces.

At this stage, the customer needed enough parts for testing, but did not yet need a production run.

Opening an injection mold too early could create unnecessary tooling costs, particularly if the product required design changes after the first round of testing.

Vacuum casting provided a practical intermediate manufacturing option.

The development route could therefore follow:

3D CAD Design
↓
Master Pattern
↓
Silicone Mold
↓
Vacuum Casting Parts
↓
Product Testing
↓
Design Refinement
↓
Production Tooling

This gives the engineering team an opportunity to evaluate the physical design before making a larger production investment.

Complex Geometry in a Small-Batch Prototype

Although the quantity was small, the part itself required careful reproduction.

The component contains several geometric characteristics that need to be transferred consistently from the original design to the finished prototype.

Curved 3D Profile

The main body is formed by continuous three-dimensional curves rather than simple planar surfaces.

Raised Side Structures

The side sections extend from the central body and contribute to the overall ergonomic form.

Textured Inner Surface

A textured area is incorporated into the inner surface. Reproducing this detail is important for evaluating both appearance and physical interaction.

Smooth Surface Transitions

The component includes multiple curved transitions between different areas of the part, requiring attention during master pattern and mold preparation.

Vacuum casting is particularly suitable for low-volume parts with this type of geometry because silicone molds can reproduce complex surfaces and fine details without the investment associated with conventional production tooling.

PP Material Requirement

The customer's intended production material was PP (Polypropylene).

PP is commonly used for consumer products that require a combination of lightweight construction, toughness, chemical resistance, and controlled flexibility.

Its typical characteristics include:

• Low density
• Lightweight construction
• Good impact resistance
• Good chemical resistance
• Good fatigue resistance
• A useful balance between rigidity and flexibility

For prototype development, the casting material should be selected according to the intended purpose of the samples.

When the final product is designed for PP injection molding, the prototype material and testing requirements should be considered together to ensure that the samples provide useful feedback during development.

Why the Customer Needed 10–20 Parts

A single prototype can confirm basic geometry.

A small batch provides a much better opportunity for product validation.

The customer could use the 10–20 vacuum casting parts for different development activities.

Engineering Evaluation

Review the physical geometry and critical interfaces.

Assembly Testing

Check how the component fits with other parts of the product.

Ergonomic Testing

Evaluate the physical shape, contact areas, and overall user interaction.

Surface Evaluation

Review the appearance and texture of the reproduced surface.

Design Review

Provide samples to different members of the product development team.

Pre-Production Evaluation

Identify potential changes before production tooling is finalized.

The purpose of producing a small batch was therefore not simply to obtain more samples.

It was to give the customer enough physical parts to make a more informed decision about the next stage of the product.

From CAD Data to Finished Vacuum Casting Parts

The project followed a structured prototype manufacturing process.

01 — CAD Review

The customer's 3D model was reviewed to understand the geometry, surface details, material requirement, and prototype quantity.

02 — Master Pattern

A master pattern was manufactured according to the approved design data.

03 — Silicone Mold

The master pattern was used to create a silicone mold suitable for producing the required number of prototype parts.

04 — Vacuum Casting

The prototype components were cast according to the agreed material and process requirements.

05 — Finishing

Casting gates, flash, and other process remnants were removed from the finished parts.

06 — Inspection

The samples were visually and dimensionally checked according to the project requirements.

07 — Export

The completed vacuum casting parts were packaged and shipped to the overseas customer for product validation.

Prototype Parts That Support Real Product Decisions

A useful prototype should do more than reproduce the appearance of a CAD model.

It should allow the product development team to answer practical questions.

For this project, the physical samples helped the customer evaluate:

Does the ergonomic shape work as intended?

Does the component fit correctly with the surrounding product?

Is the surface texture suitable for the intended application?

Are any areas of the design difficult to use or assemble?

Is the design ready to move toward production tooling?

These questions are difficult to answer completely through CAD review alone.

Physical vacuum casting parts provide the development team with something they can hold, assemble, test, compare, and evaluate.

From Prototype Validation to Production

Vacuum casting can be an effective manufacturing stage before injection molding when the product design is still being evaluated.

Once testing is completed, the customer can make a more informed decision about the next manufacturing process.

Depending on the final design and production requirements, the project may progress from:

Vacuum Casting
→ Design Optimization
→ Injection Mold Development
→ Production Validation
→ Mass Production

If design changes are identified during testing, the prototype stage can be repeated before the production tooling is finalized.

This helps reduce the risk of carrying unresolved design issues into mass production.

Supporting Consumer Product Development

Different stages of product development require different manufacturing approaches.

A consumer product may begin with a concept model, move to functional prototypes, progress through small-batch validation, and eventually enter production.

For these projects, the manufacturing process needs to match the quantity, geometry, material, testing requirements, and development stage.

Depending on the project, manufacturing solutions can include:

• Vacuum casting
• CNC machining
• 3D printing
• Plastic prototypes
• Metal prototypes
• Small-batch production
• Surface finishing
• Prototype assembly
• Injection molding

This provides flexibility for customers who need to move from prototype development toward a finalized production solution.

Small Quantity, Practical Validation

For this project, approximately 10–20 vacuum casting parts were enough to provide the customer with a useful set of physical samples.

The parts were manufactured, inspected, and exported for overseas product testing.

Rather than committing to production tooling before the design was fully validated, the customer used a small-batch manufacturing approach to collect physical feedback first.

For consumer product development, this can provide a practical balance between prototype cost, sample quantity, testing requirements, and production readiness.
